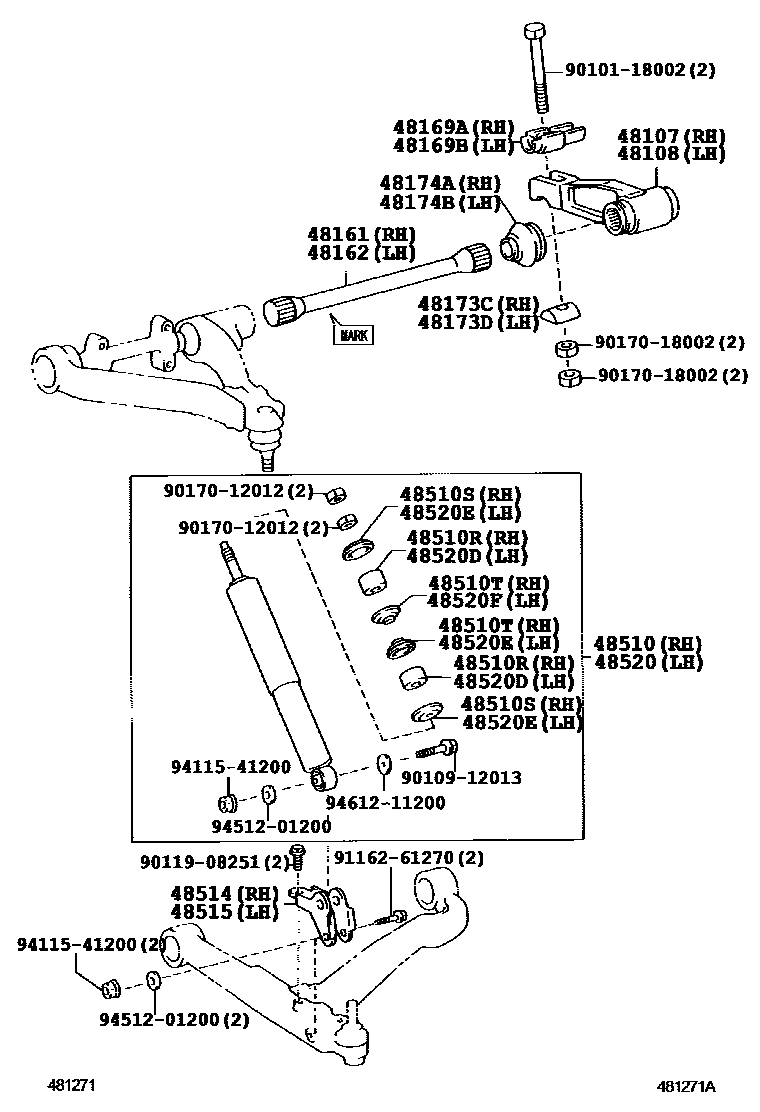

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-36030iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

48108ARM SUB-ASSY, ANCHOR, LH

main48108-36030iBB4#,5#,HZB50,RZB40,50199301-201501

48161SPRING, TORSION BAR, RH

main48161-36070iBZB40199802-201405

MARK 48161-36070 OR 36070R G

main48161-36070iXZB40200803-201405

main48161-36100iBB50..IV;RZB40..GEN;BB42,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)199301-201501

MARK 48161-36100 OR 36100R J

main48161-36100iXZB59;BB42,HZB50,TRB40,50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN)201012-201501

MARK 36100R J

main48161-36110iRZB40..EX199301-200408

MARK 48161-36110 OR 36110R L

main48161-36120iRZB40..STD..GCC;BB40,42,5#..(ARL,GCC,GEN)..CBU;HZB50,RZB40..(17S,20S,22S,26S)..(GEN,SCO)..5F199301-201501

MARK 48161-36120 OR 36120R K

main48161-36120iBZB40,XZB40201405-201501

48162SPRING, TORSION BAR, LH

main48162-36070iBB43199802-201405

MARK 48162-36070 OR 36070L G

main48162-36070iXZB40200803-201405

main48162-36100iHZB50,RZB50..STD..(EUR,GCC,GEN)199301-201501

MARK 48162-36100 OR 36100L J

main48162-36100iTRB40..GCC;BB42..RHD..SRF..WC201012-201501

MARK 36100L J

main48162-36110iRZB40..EX199301-200408

MARK 48162-36110 OR 36110L L

main48162-36120iBB50..5F..TDEFI;BB58,BZB50..21S,23S199301-201501

MARK 48162-36120 OR 36120L K

main48162-36120iBZB40,XZB40201405-201501

48169ASWIVEL, ANCHOR ARM, RH

main48169-36020iBB4#,5#,HZB50,RZB40,50199301-201501

48169BSWIVEL, ANCHOR ARM, LH

main48169-36020iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

48173CSEAT, ANCHOR ARM ADJUSTER, RH

main48173-36010iBB4#,5#,HZB50,RZB40,50199301-201501

48173DSEAT, ANCHOR ARM ADJUSTER, LH

main48173-36010iBB4#,5#,HZB50,RZB40,50199301-201501

48174ACOVER, TORSION BAR DUST, RH

main48174-36010iBB4#,5#,HZB50,RZB40,50199301-201501

48174BCOVER, TORSION BAR DUST, LH

main48174-36010iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-39675iBB50..IV..6F;HZB50,RZB40,50..STD..GEN..5F;BB42,50..STD..(GCC,GEN)..CBU..5F199705-200105

MARK 48510-36030

sub48510-39676

main48510-39676iRZB40,50..GEN200105-201501

MARK 48510-36040

main48511-80012iBB4#,50,HZB50,RZB40,50199301-199703

MARK 48511-36240

sub48511-80041

sub90109-12013

sub90170-12012

sub90948-02009

sub90948-02054

sub94115-41200

sub94512-01200

sub94612-11200

main48511-80041iBB4#,5#,HZB50,RZB40,50199703-200108

MARK 48511-36240

sub48511-80093

main48511-80093iRZB50;RZB40..GEN;RZB40..SRF..GCC200108-201501

MARK 48511-36280

main48511-80164iXZB50..21S201501

MARK 48511-36320

48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH

main90948-01004iBB4#,5#,HZB50,RZB40,50199301-201501

48510SRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH

main90948-02009iXZB50..IV199301-201501

48510TRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH

main90948-02054iBB4#,5#,HZB50,RZB40,50199301-201501

48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH

main48514-36050iBB4#,5#,HZB50,RZB40,50199301-201501

48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH

main48514-36050iBB4#,5#,HZB50,RZB40,50199301-201501

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-39675iBB50..IV..6F;HZB50,RZB40,50..STD..GEN..5F;BB42,50..STD..(GCC,GEN)..CBU..5F199705-200105

MARK 48510-36030

sub48510-39676

main48510-39676iBB42..LHD..HRF200105-201501

MARK 48510-36040

main48511-80012iBB4#,50,HZB50,RZB40,50199301-199703

MARK 48511-36240

sub48511-80041

sub90109-12013

sub90170-12012

sub90948-02009

sub90948-02054

sub94115-41200

sub94512-01200

sub94612-11200

main48511-80041iBB50..EX;BB50..WOC..5F;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50199703-200108

MARK 48511-36240

sub48511-80093

main48511-80093iBZB50..EX;BB5#..(ARL,GEN)..TDEFI200108-201501

MARK 48511-36280

main48511-80164iXZB50..21S201501

MARK 48511-36320

48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH

main90948-01004iBB4#,5#,HZB50,RZB40,50199301-201501

48520ERETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH

main90948-02009iBB4#,5#,HZB50,RZB40,50199301-201501

48520FRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH

main90948-02054iBB4#,5#,HZB50,RZB40,50199301-201501

9010118002

main90101-18002

9010912013

main90109-12013

9011908251

main90119-08251

9017012012

main90170-12012

9017018002

main90170-18002

9116261270

main91162-61270

9411541200

main94115-41200

9451201200

main94512-01200

9461211200

main94612-11200

29 parts on this diagram · 2 diagrams in section
