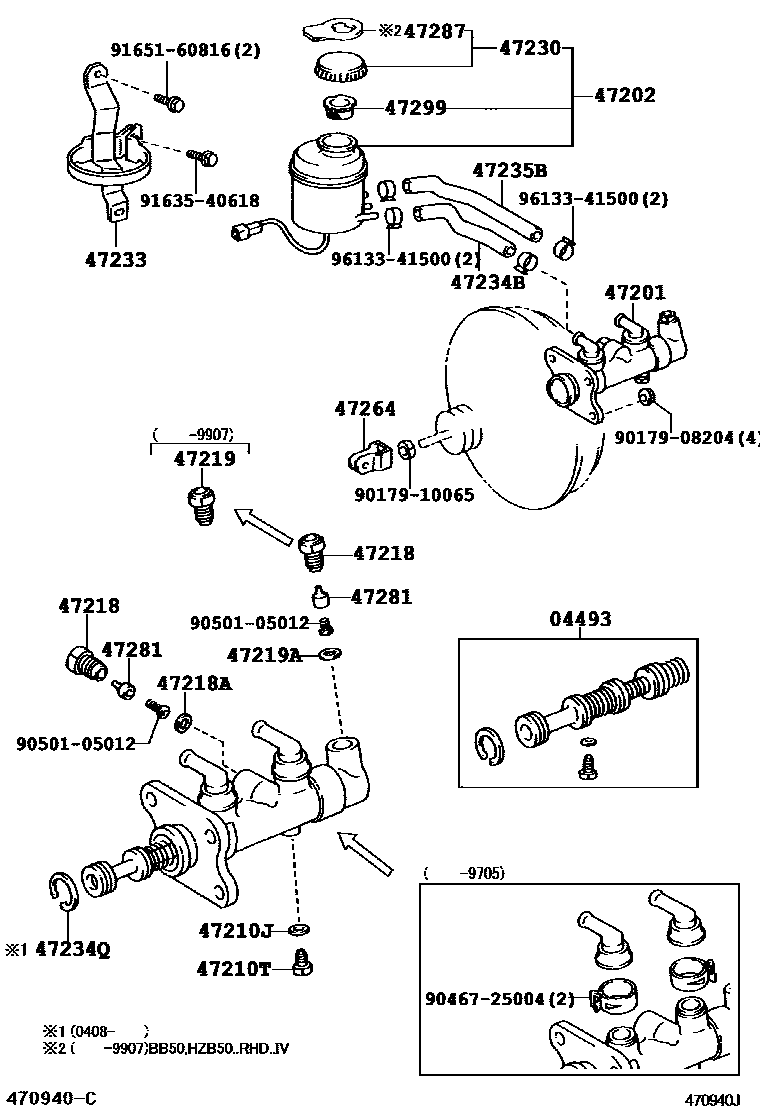

BRAKE MASTER CYLINDER

0001 1 0006 1 0010 1 0013 1 0015 1W(ABS)

04493CYLINDER KIT, BRAKE MASTER

main04493-36160iBB42,RZB40199301-199505

sub04493-37020

main04493-36170iBB4#,HZB50,RZB40..(17S,19S,22S,26S)..5F199301-199708

W(FRONT DISC BRAKE)

sub04493-36171

main04493-36171iRZB40..GEN;RZB40..SRF..GCC199708-201501

W(FRONT DISC BRAKE)

main04493-36180iHZB50..20S,30S199301-199505

W(FR DISC BRAKE:RR AUTO ADJUSTER)

sub04493-37030

main04493-36200iBB50..WC..CBU199705-199907

main04493-36210iXZB50..GEN..4FC200708-201108

main04493-36220iBB50..6F199907-200009

sub04493-36221

main04493-36221iBB50..IV..6F200009-200402

sub04493-36230

main04493-36230iXZB50..WOC..CBU200402-201501

main04493-36230iHZB50..LHD;TRB50..GCC;BZB40,50,XZB40,5#..HRF200908-201501

W(ABS)

main04493-37020iBB42,RZB40;HZB50..20S,30S199505-199907

W(FRONT DRUM BRAKE)

sub04493-37021

main04493-37020iHZB50..20S,30S199301-199505

sub04493-37021

main04493-37022iBB50..STD..WC..IV..5F199907-201501

W(FRONT DRUM BRAKE)

main04493-37022iBB50,BZB50..17S200302-200908

main04493-37030iHZB50..RHD..TD;HZB50,RZB50..LHD199301-199505

W(FR DISC BRAKE:RR AUTO ADJUSTER)

sub04493-37031

main04493-37030iBB50..IV;BB50..EX;BB58,HZB50,RZB50..EUR,GCC,GEN,SCO199505-199907

W(FRONT DISC BRAKE)

sub04493-37031

main04493-37032iBB50,RZB50..CHI199907-201501

W(FRONT DISC BRAKE)

main04493-37032iHZB50,TRB50,XZB50..STD..(GCC,GEN)201501

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-36380iBB42,43,50,HZB50..RHD..(GEN,SCO)199301-199907

W(FRONT DRUM BRAKE)

main47201-36382iXZB50..STD..GEN199907-201501

W(FRONT DRUM BRAKE)

main47201-36382iBB50,BZB50..17S200302-201501

main47201-36390iBB50..WOC..GEN;BB42,58,HZB50,RZB40..LHD..CBU199301-199907

W(FRONT DRUM BRAKE)

main47201-36392iBB42..LHD..HRF199907-201501

main47201-36400iBB4#,HZB50..RHD..(17S,19S,22S,26S)..5F199301-199907

W(FRONT DISC BRAKE)

main47201-36402iBB42..RHD199907-201501

W(FRONT DISC BRAKE)

main47201-36410iBB42,RZB40..LHD199301-199907

W(FRONT DISC BRAKE)

main47201-36412iBB42..LHD..HRF199907-201501

W(FRONT DISC BRAKE)

main47201-36420iBB50,HZB50..RHD..(EUR,GEN,SCO)199301-199907

W(FRONT DISC BRAKE)

main47201-36422iXZB5#..EX..5F199907-201501

W(FRONT DISC BRAKE)

main47201-36430iBB50..LHD..IV;BB58,HZB50,RZB50..LHD199301-199907

W(FRONT DISC BRAKE)

main47201-36432iBB58199907-201501

W(FRONT DISC BRAKE)

main47201-36460iBB50..WC..CBU199705-199907

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-36080iHZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501

sub47220-36120

main47220-36090iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201501

sub47220-36130

main47220-36100iHZB50..4FC199505-201501

sub47220-36070

main47220-36110iHZB50..30S..4FC199301-199705

main47220-36120iBB50..RHD..IV..TDEFI199301-201311

main47220-36130iBB50..LHD..TDEFI199301-201501

main47220-36130iHZB50..LHD..HRF..WC..GEN201209-201501

W(ABS)

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iXZB50..TAIW199301-201501

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBB4#,5#,HZB50,RZB40,50199301-201501

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36070iBB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50199301-199907

main47218-36091iBB50..IV..6F199907-201501

main47218-36091iHZB50,XZB50..LHD..HRF..WC..(GEN,TAIW)200908-201501

W(ABS)

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-11001iBB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50199301-201501

main90430-16013iBB50..6F199907-201501

main90430-16013iHZB50,XZB50..LHD..HRF..WC..(GEN,TAIW)200908-201501

W(ABS)

47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)

main47218-36070iBB42,RZB40;HZB50..20S,30S199301-199907

main47218-36080iHZB50..19S,22S;BB40,50..ARL,EUR;HZB50,RZB50..CBR,TD199301-199907

W(FRONT DISC BRAKE)

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-11001iBB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50199301-201501

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20100iBB50..IV..6F199301-201501

sub47230-47090

main47230-20100iHZB50..LHD..HRF..WC..GEN201209-201501

W(ABS)

sub47230-47090

main47230-24010iRZB40..HRF..GCC199301-201612

sub47230-47090

47233BRACKET, RESERVOIR

main47233-36060iHZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501

main47233-36070iBB50,RZB40,50..CHI199301-201501

47234BTUBE, RESERVOIR, NO.1

main47234-36160iBB42,HZB50..RHD199301-201501

main47234-36170iBB42..LHD..SRF;BB50,HZB50,TRB40,50..LHD..5F199301-201501

main47234-36180iBZB40,50,XZB40,5#..RHD199907-201501

main47234-36190iXZB50..LHD..IV199907-201311

main47234-36190iHZB50,XZB50..LHD..HRF..WC..(GEN,TAIW)200908-201501

W(ABS)

47234QRING, SNAP(FOR RESERVOIR TUBE)

main96151-03000iXZB50..EX..5F;BB42..LHD..HRF;BZB40,50,XZB40..STD200408-201501

main96151-03200iHZB50,TRB50,XZB50..STD..(GCC,GEN)200408-201501

W(FRONT DISC BRAKE)

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-36160iXZB50..STD..GEN199301-201501

main47235-36170iBB42,5#,HZB50,RZB40,50..LHD199301-201501

main47235-36190iXZB50..WC..ARL;XZB50..GEN..4FC199907-201501

main47235-36200iHZB50,XZB50..LHD..HRF..WC..(GEN,TAIW)200908-201501

W(ABS)

main47235-36200iBB50..LHD..TDEFI199907-201311

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iXZB50..WOC..CBU200408-201501

W(ABS)

main47264-50010iBB4#,5#,HZB50,RZB40,50199301-200408

47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-30020iBB42,RZB40;HZB50..20S,30S199301-201501

W(FRONT DISC BRAKE)

main47281-30020iBB50..STD..WC..IV..5F199907-200803

main47281-36010iHZB50..LHD;TRB50..GCC;BZB40,50,XZB40,5#..HRF200908-201501

W(ABS)

main47281-36010iBB50..IV..6F199907-201501

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iBB50..IV..6F199907-200408

main47287-20100iBB50..STD..CBU;BB50,HZB50..EUR199301-199907

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-17010iBB4#,5#,HZB50,RZB40,50199301-200401

sub47299-20060

main47299-20060iXZB50..STD..GEN200401-201501

9017908204

main90179-08204

9017910065

main90179-10065

9046725004

main90467-25004

9050105012

main90501-05012

9163540618

main91635-40618

9165160816

main91651-60816

9613341500

main96133-41500
