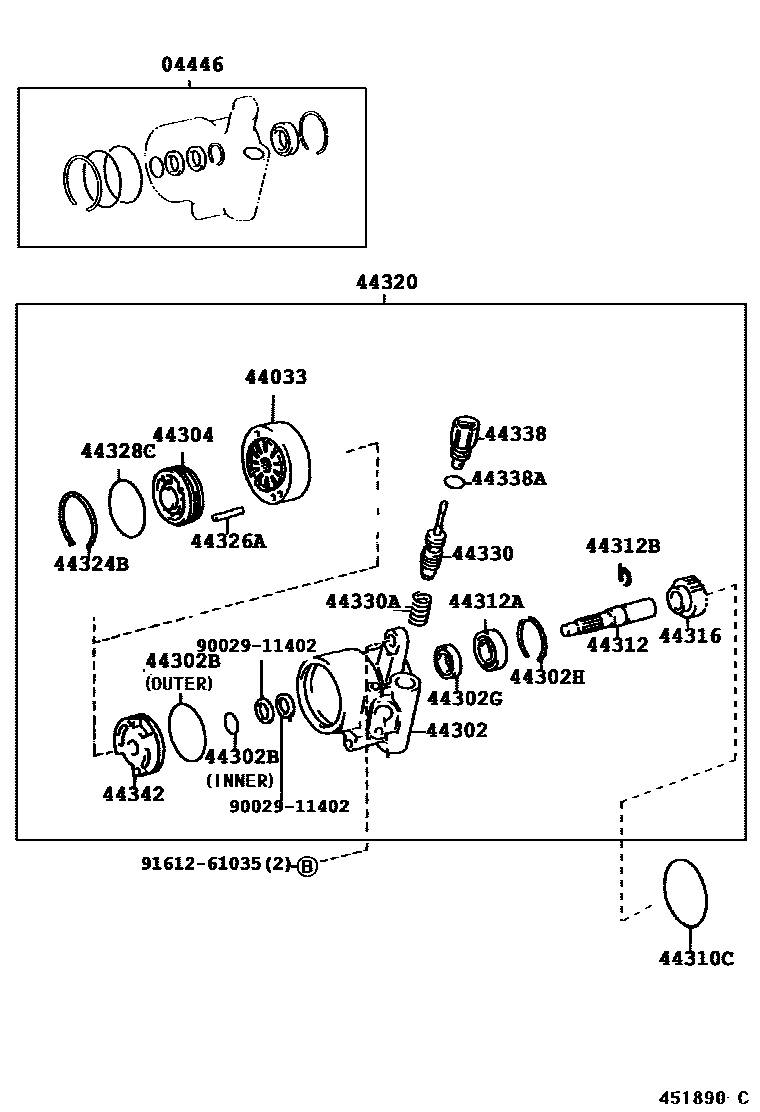

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iTRB40,50¥970200708-201501

main04446-36081iBB40¥1,900199301-199907

main04446-36090iHZB50¥1,750199301-201501

main04446-36100iBB50..CHI¥2,400199301-201501

main04446-36110iRZB40..HRF..GCC¥2,160199309-200708

main04446-60100iBB5#..TDEFI¥3,570199907-200608

sub04446-37040¥3,570

main04446-60130iXZB50..WOC..CBU¥1,280200608-201501

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36030iBB40,RZB40,50¥8,600199301-199907

sub44033-36060¥8,700

main44033-36040iBB42,43,5#,HZB50¥5,300199301-201501

main44033-36060iRZB40..WOC..GCC;RZB40..22S..GEN¥8,700199502-200708

main44033-60010iBB5#..TDEFI¥7,100199907-200608

sub44033-EV010¥4,900

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36160iBB40¥34,600199301-199502

sub44302-36210¥16,600

main44302-36170iRZB40,50..CHI¥19,900199309-200708

main44302-36200iHZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC¥12,500199301-201501

main44302-36210iBB50..WOC..6F;BB50..STD..WC..IV¥16,600199301-201501

main44302-36290iBB5#..TDEFI¥24,400199907-200608

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20003iBB40,RZB40,50¥380199301-200708

main90029-20043iBB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,BZB40,50,HZB50..HRF..(17S,21S,2¥200199301-201501

main90029-20056iBB5#..TDEFI¥200199907-200608

INNER

main90029-20057iBB5#..TDEFI¥200199907-200608

OUTER

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21018iBB4#,5#,HZB50,RZB40,50¥240199301-201501

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90029-52011iBB5#..TDEFI¥320199907-200608

main96151-04000iHZB50¥130199301-201501

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-36160iBB40¥36,500199301-199907

main44304-36170iRZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)¥36,800199309-200708

main44304-36200iHZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC¥23,000199301-201501

main44304-36210iBB42,43,5#¥30,500199301-201501

main44304-60040iBB5#..TDEFI¥5,200199907-200608

44310CRING, O(FOR VANE PUMP)

main90301-60002iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD)¥530199301-201501

44312SHAFT, VANE PUMP

main44312-36100iRZB40..HRF..GCC¥3,230199309-200708

main44312-36110iBZB50..EX¥2,190199301-201501

main44312-60030iBB5#..TDEFI¥770199907-200608

main44312-89101iHZB50¥2,700199301-201501

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iBB4#,5#,HZB50¥1,490199301-201501

main90029-36004iRZB40..HRF..GCC¥1,270199309-200708

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iBB4#,5#,HZB50,RZB40,50¥190199301-201501

44316GEAR, VANE PUMP

main44316-36020iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD;BB42,BZB40,50..HRF..(17S,21S,26S)..WC¥5,200199301-201501

main44316-37020iBB5#..TDEFI¥1,010199907-200608

main44316-60010iHZB50¥5,500199301-201501

44320PUMP ASSY, VANE

main44310-36290iBB5#..TDEFI¥81,700199907-200608

main44310-36310iXZB40,59;XZB50..(20S,21S)..WC¥51,400200608-201501

main44310-36320iTRB40,50200708-201501

main44320-36170iBB40¥81,700199301-199907

main44320-36240iHZB50¥51,600199301-201501

main44320-36250iBB42,BZB40,50¥68,000199301-201501

main44320-36260iRZB40,50..CHI¥81,700199309-200708

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90029-52010iBB5#..TDEFI¥200199907-200608

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-89101iBB4#,5#,HZB50,RZB40,50¥530199301-201501

L=29.1

main90029-14205iBB5#..TDEFI¥70199907-200608

L=25.8

44328CRING, O(FOR PUMP HOUSING END)

main90029-20042iBB42,43,5#,HZB50¥200199301-201501

main90029-20058iBB5#..TDEFI¥200199907-200608

main96711-19020iRZB40..HRF..GCC¥300199301-200708

44330VALVE ASSY, FLOW CONTROL

main40410-36290iBB5#..TDEFI¥8,700199907-200608

MARK C

main40420-36290iBB5#..TDEFI¥8,700199907-200608

MARK B

main40430-36290iBB5#..TDEFI¥8,700199907-200608

MARK A

main44330-36050iRZB40,50¥7,000199309-200708

TWO GROOVE

main44330-36060iRZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)¥7,000199309-200708

ONE GROOVE

main44330-36070iRZB40,50..CHI¥7,000199309-200708

NO GROOVE

main44330-36110iBB40¥5,900199301-199907

TWO GROOVE

main44330-36120iBB40¥5,900199301-199907

ONE GROOVE

main44330-36130iBB40¥5,900199301-199907

NO GROOVE

main44330-36200iBB42,43,5#,HZB50¥5,300199301-201501

TWO GROOVE

main44330-36210iBB42,BZB40,50,HZB50¥5,300199301-201501

ONE GROOVE

main44330-36220iBB50,HZB50..ARL,CHI¥5,300199301-201501

NO GROOVE

main44330-36290iBB5#..TDEFI¥8,700199907-200608

MARK D

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iBZB50..EX¥350199301-201501

main90029-60013iBB5#..TDEFI¥110199907-200608

44338UNION, PRESSURE PORT

main44308-36010iXZB50..STD..GEN¥1,950200608-201104

main44308-36020iTRB40,50200708-201104

main44338-36010iBB5#..TDEFI¥1,480199907-200608

main44338-36020iXZB50..IV¥670201104-201501

main44338-36030iTRB40,50201104-201501

44338ARING, O(FOR PRESSURE PORT UNION)

main96711-19016iBB5#..TDEFI¥300199907-200608

OD=19.6,ID=15.8

44342PLATE, VANE PUMP SIDE, REAR

main44342-36040iBB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN¥4,010199301-201501

main44342-36060iRZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)¥6,400199512-200708

main44342-60050iBB5#..TDEFI¥6,400199907-200608

main44342-89102iBB40,RZB40,50¥7,200199301-199907

9002911402

main90029-11402¥240

9161261035

main91612-61035¥100

23 parts on this diagram · 9 diagrams in section
