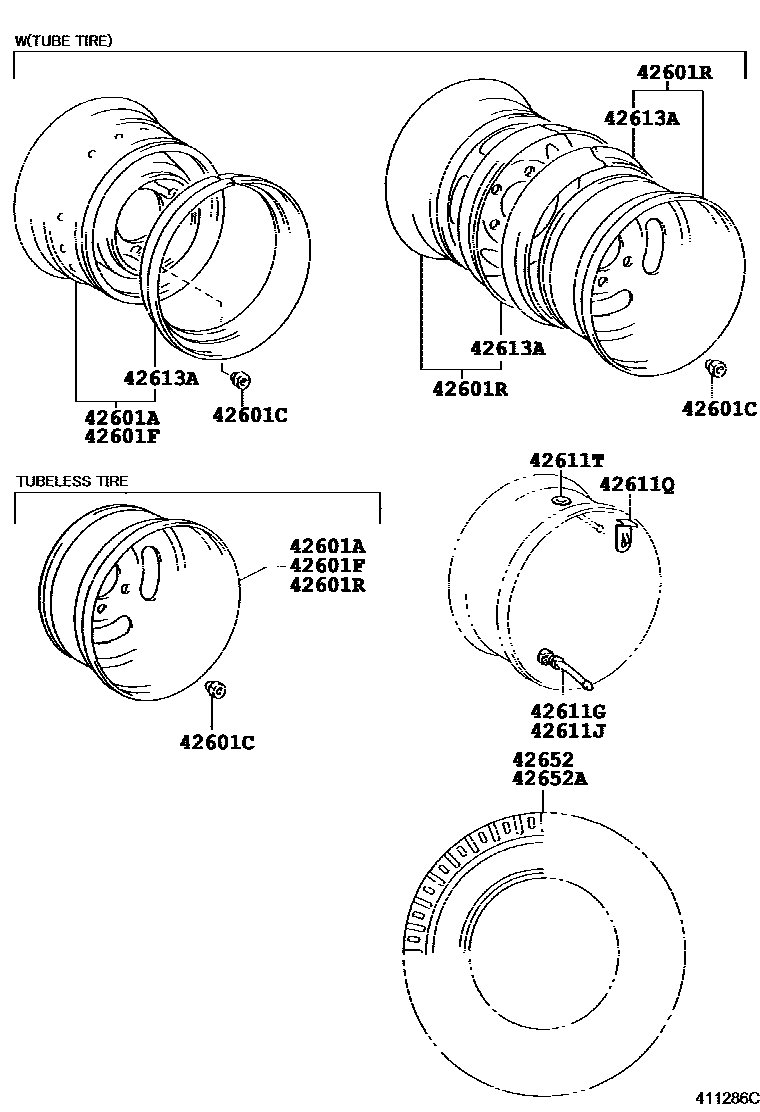

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601AWHEEL, DISC (FOR SPARE)

main42601-36600iBB50..STD..CBU;BB50,HZB50..EUR199301-199907

17.5X6.00, #

sub42601-36700

main42601-36700iBB50..WC..CBU199807-199907

17.5X6.00

main42601-36720iBB50..WOC..6F;BB50..STD..WC..IV199907-200409

17.5X6.00, #

sub42601-36721

main42601-36721iBB58,59;BB50..(EUR,GEN)..6F200410-201501

17.5X6.00, #

main42601-36721iHZB50..LHD..HRF..WC..GEN200908-201501

17.5X6.00, #,JORDAN SPEC

main42610-36380iBB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU199301-199907

5.50F-16, #

main42610-36480iHZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN199907-200409

16X5.50F, #

sub42610-36481

main42610-36481iRZB40..HRF..GCC200410-201501

16X5.50F, #

sub42610-36482

42601CNUT, HUB (FOR AXLE)

main42633-55030iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201501

REAR RH

main42634-55030iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

REAR LH

main90942-01093iBB4#,5#,HZB50,RZB40,50199301-199910

FRONT RH

main90942-01094iBB4#,5#,HZB50,RZB40,50199301-199910

FRONT LH

main90942-01107iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)199910-201501

FRONT RH

main90942-01108iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199910-201501

FRONT LH

42601FWHEEL, DISC (FOR FRONT)

main42601-36600iBB50..EUR199301-199907

17.5X6.00, #

sub42601-36700

main42601-36700iBB50..WC..CBU199807-199907

17.5X6.00

main42601-36720iBB58,59;BB50..(EUR,GEN)..6F199907-200409

17.5X6.00, #

sub42601-36721

main42601-36721iBZB40,50200410-201501

17.5X6.00, #

main42601-36721iHZB50..LHD..HRF..WC..GEN200908-201501

17.5X6.00, #,JORDAN SPEC

main42610-36380iBB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU199301-199907

5.50F-16, #

main42610-36480iBB50,HZB50,RZB40,50..ARL,CHI199907-200409

16X5.50F, #

sub42610-36481

main42610-36481iXZB50..WOC..CBU200410-201501

16X5.50F, #

sub42610-36482

42601RWHEEL, DISC (FOR REAR)

main42601-36630iBB50..EUR199301-199907

17.5X6.00, #

sub42601-36700

main42601-36700iBB50..WC..CBU199807-199907

17.5X6.00

main42601-36720iBB50..IV;BB50..CBU..6F199907-200409

17.5X6.00, #

sub42601-36721

main42601-36721iBZB40,50200410-201501

17.5X6.00, #

main42601-36721iHZB50..LHD..HRF..WC..GEN200908-201501

17.5X6.00, #,JORDAN SPEC

main42610-36420iBB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU199301-199907

5.50F-16, #

main42610-36480iBB42,50,58,BZB40,50,HZB50,RZB40,50..17S,20S,21S,23S,26S,30S199907-200409

16X5.50F, #

sub42610-36481

main42610-36481iXZB50..WOC..CBU200410-201501

16X5.50F, #

sub42610-36482

42611GVALVE (FOR TUBELESS TIRE)

main90942-05023iBB50..WOC..6F;BB50..STD..WC..IV199907-201501

main90942-05023iHZB50..LHD..HRF..WC..GEN200908-201501

JORDAN SPEC

main90942-05023iBB50..WC..CBU199301-199907

FRONT

main90942-05023iBB50..STD..CBU;BB50,HZB50..EUR199301-199907

REAR

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05023iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

42611QCLIP (FOR TUBE)

main90468-10014iBB4#,HZB50,RZB40..(17S,19S,22S,26S)..5F199301-199907

REAR

main90468-10014iBB50..EX;BB50..GEN..IV;HZB50..30S..4FC;BB4#,58,HZB50,RZB40,50..CBU..5F199301-199907

FRONT

main90468-10014iBB4#,5#,HZB50,RZB40,50..17S,20S,22S,23S,26S,30S199907-201501

42611TWASHER (FOR TUBE)

main90201-11009iBB4#,HZB50,RZB40..(17S,19S,22S,26S)..5F199301-199907

REAR

main90201-11009iBB50..EX;BB50..GEN..IV;HZB50..30S..4FC;BB4#,58,HZB50,RZB40,50..CBU..5F199301-199907

FRONT

main90201-11009iHZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN199907-201501

42613ARING, DISC WHEEL SIDE

main42613-36080iBB50..EX;BB50..WC..GEN..IV;BB40,42,58,HZB50,RZB40,50..CBU199301-200408

FRONT

main42613-36080iBB50..EX;BB50..WC..GEN..IV;BB40,42,58,HZB50,RZB40,50..CBU199301-200108

REAR

main42613-36140iXZB50..TAIW199907-201501

main42613-36140iBB42,HZB50,RZB40,50..GCC200007-200108

FRONT

42652TIRE

main42605-36130iHZB50..20S;BB42,RZB40..GCC,GEN199301-199704

7.00R16-10,M97

main42605-36131iBB42,50,HZB50,RZB40..(20S,22S,26S)..GEN..5F199907-200006

7.00R16-10,FRONT

main42605-36131iRZB40;BB42,HZB50..(20S,22S,26S)..(GCC,GEN,SCO)..5F199704-199907

7.00R16-10,M97

main42605-36131iHZB50..RHD..EX;BB42..RHD..HRF..WOC;BB42,50,RZB40..(20S,22S)..GEN199907-200408

7.00R16-10,REAR

main42605-36170iBB42,43..17S199301-199907

6.50R16-8,M-97, R230

main42605-36170iBZB40199907-200708

6.50R16-8,*B/S,*D/L,*T/Y

main42605-36180iBB42..RHD;TRB40..GEN;BB42..LHD..SRF..GEN200408-201612

6.50R16-10,*B/S

main42605-36180iBB42,RZB40..GCC,GEN199301-199907

6.50R16-10,*B/S,M-97,R230C

main42605-36180iBB42..RHD..HRF..WOC;BB42,RZB40..22S..GEN199907-200408

6.50R16-10,*B/S,*B/S,*D/L,*T/Y

main42605-36220iRZB40;BB42,HZB50,RZB50..(20S,22S,26S,30S)..(GCC,GEN,SCO)199301-199907

7.00R16-8,*B/S,M-97, R230

main42605-36220iBB42,5#,HZB50,RZB40,50..(20S,22S,23S,26S,30S)..GEN199907-200004

7.00R16-8,*B/S,REAR

main42605-36520iBB40199301-199907

6.50R16-8

main42605-36620iHZB50,RZB50..30S199301-199703

7.00R16-12,M-97, R230C

main42605-36620iHZB50,RZB50..STD..(GCC,GEN)199608-199704

7.00R16-12,M-97,R230C

main42605-36621iBB50..WC..GEN..IV;BB58,HZB50,RZB50..STD..GEN199704-199907

7.00R16-12,M97,R230C

main42605-36621iBB5#,HZB50,RZB50..(22S,23S,30S)..GEN199907-200006

7.00R16-12,*B/S,FRONT

main42605-36621iBB5#,HZB50,RZB50..(22S,23S,30S)..GEN199907-200006

7.00R16-12,*B/S,REAR

main42605-36621iBB50..WOC..GEN..IV199711-199907

7.00R16-12,M-97, R230

main42605-36630iHZB50..ARL199301-200211

7.00R16-10

main42605-36780iBB42,RZB40..GCC,GEN199301-199703

6.50R16-10,M53B

main42605-36790iBB43199301-200108

6.50R16-8,M53B

main42605-36790iBZB40200408-200708

6.50R16-8

main42605-36800iHZB50,RZB50..STD..(GCC,GEN)199301-199608

7.00R16-12

main42605-36810iHZB50..20S;BB42,RZB40..GCC,GEN199301-199608

7.00R16-10,M53B

main42605-36820iBB50..EX;BB42,58,HZB50,RZB40,50..GEN199301-199907

7.00R16-8,*T/Y,M53B

main42605-36820iBB42,5#,HZB50,RZB40,50..(20S,22S,23S,26S,30S)..GEN199907-200004

7.00R16-8,*T/Y,REAR

main42605-36830iHZB50,RZB50..STD..(GCC,GEN)199509-199705

7.00R16-12,M53B

sub42605-36870

main42605-36840iBB42,HZB50,RZB40..LHD..(17S,20S,22S,26S)199509-199705

7.00R16-10,M53B

sub42605-36880

main42605-36850iBB42..LHD..HRF199509-201612

6.50R16-10,*T/Y

main42605-36850iBB42,RZB40..GCC,GEN199703-199907

6.50R16-10,*T/Y,M53B

main42605-36860iBB42,TRB40..GCC199809-201511

6.50R16-10,*T/Y

main42605-36861iBB42,TRB40..GCC201511-201612

6.50R16-10,*T/Y

main42605-36870iHZB50,RZB50..LHD..HRF..STD..WC..GEN199908-200004

7.00R16-12,*T/Y

main42605-36870iBB5#,HZB50,RZB50..(22S,23S,30S)..GEN199907-200004

7.00R16-12,*T/Y,FRONT

main42605-36870iBB50..GEN..IV;BB58,HZB50,RZB50..STD..GEN199705-199907

7.00R16-12,M53B

main42605-36870iHZB50..LHD..WOC;HZB50..LHD..SRF..WC..GEN;BB50,58,HZB50,RZB50..HRF..(23S,30S)..WC..GEN199907-200408

7.00R16-12,*T/Y,REAR

main42605-36880iBB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;HZB50,RZB40..LHD..(20S,26S)..GEN199907-200408

7.00R16-10,*T/Y,REAR

main42605-36880iBB50..EX;BB42,HZB50,RZB40..(17S,20S,22S,26S)..(GCC,GEN,SCO)..5F199705-199907

7.00R16-10,M53B

main42605-36880iBB42,50,HZB50,RZB40..(20S,22S,26S)..GEN..5F199907-200004

7.00R16-10,*T/Y,FRONT

main42605-36880iBB42,HZB50,RZB40..LHD..HRF..(20S,22S,26S)..WC..GEN199908-200004

7.00R16-10,*T/Y

main42605-36890iBB42,HZB50,RZB40,50..GCC199809-200108

7.00R16-8,*T/Y

main42605-3B010iBB50,RZB40..(20S,22S,26S)..CHI199809-201511

7.00R16-10,*T/Y

main42605-3B010iBB42,RZB40..WC..GCC199907-200408

7.00R16-10,*T/Y,REAR

main42605-3B010iBB42,RZB40..GCC199907-200108

7.00R16-10,*T/Y,FRONT

main42605-3B011iBB42,TRB40,XZB40..26S201511-201612

7.00R16-10,*T/Y

main42605-3B020iBB50,RZB50..STD..CHI199809-201206

7.00R16-12,*T/Y

sub42605-3B021

main42605-3B020iBB5#,HZB50,RZB50..(22S,23S,30S)..(GCC,GEN)199907-200108

7.00R16-12,*T/Y,FRONT

sub42605-3B021

main42605-3B020iHZB50,RZB50..GCC199907-200408

7.00R16-12,*T/Y,REAR

sub42605-3B021

main42605-3B021iBB50,HZB50,TRB50,XZB50..(DX,STD)..(ARL,GCC,GEN)201207-201511

7.00R16-12,*T/Y

main42605-3B022iHZB50,TRB50,XZB50..(DX,STD)..(ARL,GCC,GEN)201511-201612

7.00R16-12,*T/Y

main42605-3B030iBB42,RZB40..WOC..GCC199809-201511

6.50R16-10,*B/S

main42605-3B031iBB42,TRB40..GCC201511-201612

6.50R16-10,*B/S

main42605-3B040iBB42,5#,HZB50,RZB40,50..(20S,22S,23S,26S,30S)..GEN200004-200108

7.00R16-8,*B/S,REAR

main42605-3B040iBB42,HZB50,RZB40,50..GCC199809-200108

7.00R16-8,*B/S

main42605-3B050iBB42,RZB40..GCC199907-200007

7.00R16-10,*B/S,REAR

main42605-3B050iBB42,RZB40..GCC199907-200007

7.00R16-10,*B/S,FRONT

main42605-3B050iBB42,RZB40..GCC199809-199907

7.00R16-10,*B/S

main42605-3B060iHZB50,RZB50..GCC199907-200007

7.00R16-12,*B/S,FRONT

main42605-3B060iHZB50,RZB50..GCC199809-199907

7.00R16-12,*B/S

main42605-3B060iHZB50,RZB50..GCC199907-200007

7.00R16-12,*B/S,REAR

main42605-3B080iHZB50,RZB50..LHD..HRF..STD..WC..GEN199908-201511

7.00R16-12,*B/S

main42605-3B080iHZB50..4FC;HZB50..RHD..SRF;HZB50..RHD..WOC..GEN200007-200108

7.00R16-12,*B/S,REAR

main42605-3B080iHZB50,RZB50..LHD..HRF..STD..WC..GEN199908-200012

7.00R16-12,*B/S,FRONT

main42605-3B090iBB50,RZB40..(20S,22S,26S)..CHI199908-201511

7.00R16-10,*B/S

main42605-3B090iBB42,RZB40..GCC200007-200108

7.00R16-10,*B/S,REAR

main42605-3B090iBB42,HZB50,RZB40..LHD..HRF..(20S,22S,26S)..WC..GEN199908-200012

7.00R16-10,*B/S,FRONT

main42652-36120iXZB50..TAIW200008-201511

215/70R17.5 M117C

main42652-36121iXZB50..TAIW201511-201612

215/70R17.5

sub42652-36122

main42652-36130iBB50,HZB50..EUR199301-199907

215/70R17.5

main42652-36170iHZB50..LHD..HRF..WC..GEN200908-201501

215/70R17.5 RIB265,JORDAN SPEC

main42652-36170iBZB50199807-201511

215/70R17.5 RIB265

main42652-36170iBB50..WC..CBU199705-199907

215/70R17.5 RIB265,FRONT

main42652-36171iHZB50..LHD;TRB50..GCC;BZB50,XZB5#..GEN201511-201612

215/70R17.5

sub42652-36172

main42652-36180iBZB40200803-201612

215/70R17.5

main42652-36180iBB50..EUR199705-199907

215/70R17.5,REAR

main42652-36190iBB50..IV200408-201311

205/60R17.5

42652ATIRE (FOR SPARE)

main42605-36130iHZB50..EX199505-199509

7.00R16-10

main42605-36130iHZB50..EX199301-199704

7.00R16-10,M97

main42605-36131iRZB40..GEN;BB42..LHD..HRF..WOC199704-200006

7.00R16-10,M97

main42605-36131iRZB40..GEN;BB42..LHD..HRF..WOC199907-200006

7.00R16-10,*B/S

main42605-36170iBB42..SCO199301-199808

6.50R16-8,M-97, R230

main42605-36170iBB43199802-200708

6.50R16-8,M97,R230C

main42605-36180iBB42..SRF..GEN;BB42..HRF..26S..WC199907-201501

6.50R16-10,*B/S,*B/S,*D/L,*T/Y

main42605-36180iRZB40..26S..GEN;BB42..LHD..HRF..WOC199301-200408

6.50R16-10,*B/S,M-97,R230C

main42605-36180iBB42,TRB40..GEN200708-201612

6.50R16-10,*B/S

main42605-36520iBB40199301-199907

6.50R16-8

main42605-36620iHZB50,RZB50..STD..(GCC,GEN)199608-199704

7.00R16-12,M-97,R230C

main42605-36620iHZB50,RZB50..STD..(GCC,GEN)199301-199608

7.00R16-12,M-97, R230C

main42605-36621iHZB50..STD..GEN199704-200006

7.00R16-12,M97,R230C

main42605-36621iHZB50..STD..GEN199907-200006

7.00R16-12,*B/S

main42605-36630iHZB50..ARL199301-200211

7.00R16-10

main42605-36780iBB42..RHD..GEN199301-199608

6.50R16-10,M53B

main42605-36790iBZB40199301-200708

6.50R16-8,M53B

main42605-36800iHZB50..RHD..STD..GEN199301-199608

7.00R16-12

main42605-36810iBB42,HZB50..RHD..(20S,26S)199301-199608

7.00R16-10,M53B

main42605-36830iHZB50,RZB50..STD..(GCC,GEN)199509-199705

7.00R16-12,M53B

sub42605-36870

main42605-36840iRZB40;BB42,HZB50..(20S,22S,26S)..(GCC,GEN,SCO)..5F199509-199705

7.00R16-10,M53B

sub42605-36880

main42605-36850iBB42,RZB40..GCC,GEN199509-201612

6.50R16-10,*T/Y

main42605-36860iBB42..WOC..GCC199907-201511

6.50R16-10,*T/Y

main42605-36860iBB42..WOC..GCC199809-200408

6.50R16-10,*T/Y,FRONT

main42605-36860iBB42,RZB40..GCC199809-199907

6.50R16-10,*T/Y,REAR

main42605-36861iBB42,TRB40..GCC201511-201612

6.50R16-10,*T/Y

main42605-36870iBB50..WC..GEN..IV;BB58,HZB50,RZB50..STD..GEN199705-199907

7.00R16-12

main42605-36870iBB50..WOC..GEN..IV199711-199907

7.00R16-12,M53B

main42605-36870iBB5#,HZB50,RZB50..(22S,23S,30S)..GEN199907-200004

7.00R16-12,*T/Y

main42605-36880iRZB40..GEN;BB42..LHD..HRF..WOC199705-200004

7.00R16-10,M53B

main42605-36880iRZB40..GEN;BB42..LHD..HRF..WOC199907-200004

7.00R16-10,*T/Y

main42605-36890iBB42,HZB50,RZB40,50..GCC199809-199907

7.00R16-8,*T/Y

main42605-3B010iTRB40;BB42..RHD;BB42..LHD..SRF199907-201511

7.00R16-10,*T/Y

main42605-3B010iBB42,RZB40..GCC199809-200108

7.00R16-10,*T/Y,FRONT

main42605-3B010iBB42,RZB40..GCC199809-199907

7.00R16-10,*T/Y,REAR

main42605-3B011iBB42,TRB40,XZB40..26S201511-201612

7.00R16-10,*T/Y

main42605-3B020iHZB50,RZB50..GCC199809-199907

7.00R16-12,*T/Y,REAR

sub42605-3B021

main42605-3B020iXZB50..WOC..CBU199907-201206

7.00R16-12,*T/Y

sub42605-3B021

main42605-3B020iHZB50,RZB50..GCC199809-200108

7.00R16-12,*T/Y,FRONT

sub42605-3B021

main42605-3B021iHZB50,TRB50,XZB50..(DX,STD)..(ARL,GCC,GEN)201207-201511

7.00R16-12,*T/Y

main42605-3B022iHZB50,TRB50,XZB50..(DX,STD)..(ARL,GCC,GEN)201511-201612

7.00R16-12,*T/Y

main42605-3B030iBB42..WC..GCC199809-200408

6.50R16-10,*B/S,FRONT

main42605-3B030iBB42..WOC..GCC199907-201511

6.50R16-10,*B/S

main42605-3B030iBB42,RZB40..GCC199809-199907

6.50R16-10,*B/S,REAR

main42605-3B031iBB42,TRB40..GCC201511-201612

6.50R16-10,*B/S

main42605-3B040iBB42,HZB50,RZB40,50..GCC199809-199907

7.00R16-8,*B/S

main42605-3B050iBB42,RZB40..GCC199809-200007

7.00R16-10,*B/S,FRONT

main42605-3B050iBB42,RZB40..GCC199809-199907

7.00R16-10,*B/S,REAR

main42605-3B050iRZB40..GCC199907-200007

7.00R16-10,*B/S

main42605-3B060iHZB50..GCC199907-200007

7.00R16-12,*B/S

main42605-3B060iHZB50,RZB50..GCC199809-199907

7.00R16-12,*B/S,REAR

main42605-3B060iHZB50,RZB50..GCC199809-200007

7.00R16-12,*B/S,FRONT

main42605-3B080iXZB50..TAIW199908-201511

7.00R16-12,*B/S

main42605-3B090iXZB50..EX;BZB50..STD;BB42..LHD..HRF199908-201511

7.00R16-10,*B/S

main42652-36120iXZB50..TAIW199301-201511

215/70R17.5 M117C

main42652-36121iXZB50..TAIW201511-201612

215/70R17.5

sub42652-36122

main42652-36170iBB59;BB50..GEN..6F199705-201511

215/70R17.5 RIB265

main42652-36170iHZB50..LHD..HRF..WC..GEN200908-201501

215/70R17.5 RIB265,JORDAN SPEC

main42652-36171iHZB50..LHD;TRB50..GCC;BZB50,XZB5#..GEN201511-201612

215/70R17.5

sub42652-36172

main42652-36180iBZB40200803-201612

215/70R17.5

main42652-36190iBB50..IV200408-201311

205/60R17.5

11 parts on this diagram · 3 diagrams in section
