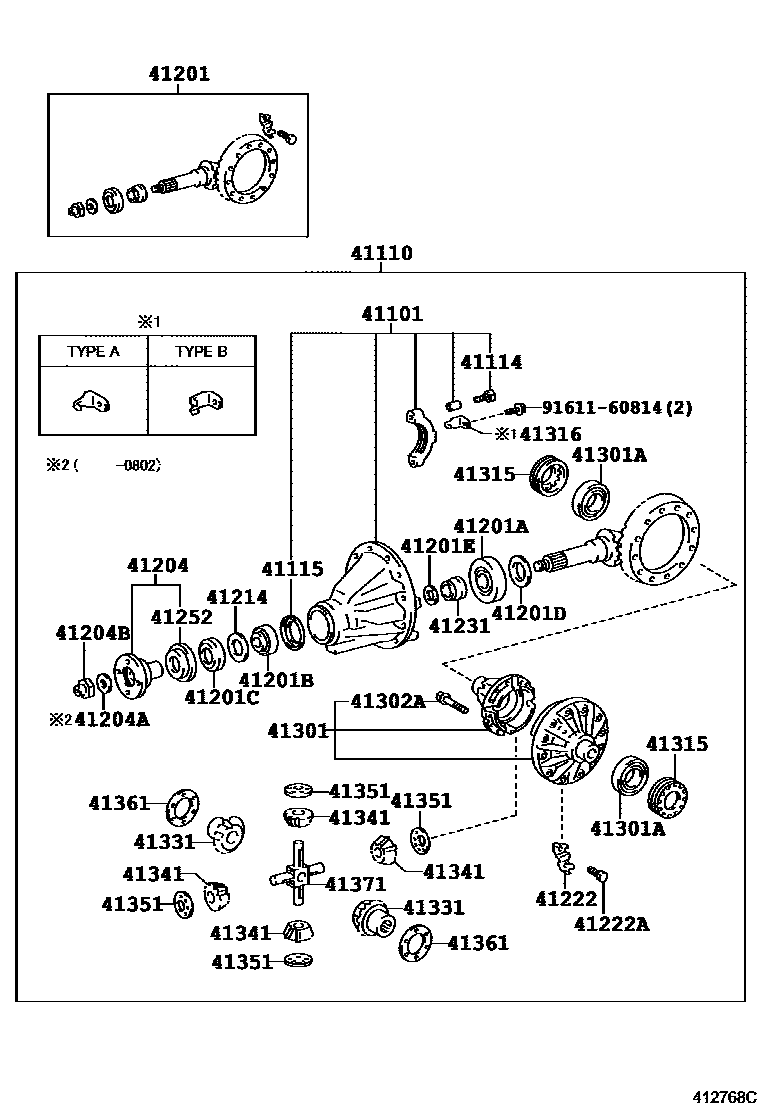

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-36030iBB4#,5#,HZB50,RZB40,50199301-199905

sub41101-37010

main41101-37010iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199905-201501

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-36460iHZB50..RHD..SRF;HZB50..WOC..GEN;BB43,HZB50..(17S,19S,20S,22S)..WC..(ARL,GEN)..5F199301-199907

*FGR=43:8=5.375

sub41110-37110

main41110-36550iBB4#,HZB50..(19S,22S,26S)..WOC199301-199505

*FGR=41:8=5.125

sub41110-37040

main41110-36580iBB42..GEN,SCO;HZB50..GEN..4FC;BB4#..WC..(ARL,GCC);HZB50..(20S,30S)..5F199301-199705

*FGR=45:8=5.625

sub41110-36581

main41110-36581iBB42..GEN;BB40,58..WC;BB42..WC..GCC;BB50,HZB50..EUR,GCC,GEN199705-199907

*FGR=45:8=5.625

sub41110-36660

main41110-36590iRZB40;HZB50..SCO;HZB50..GCC..4FC;BB42..WC..(GEN,SCO);HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN199301-199905

*FGR=41:7=5.857

sub41110-36670

main41110-36600iRZB50;BB42,HZB50..STD..(EUR,SCO)199301-199907

*FGR=43:7=6.142

sub41110-36680

main41110-36660iBB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;199907-201107

*FGR=45:8=5.625

sub41110-36661

main41110-36661iBB42,50,BZB40,50,HZB50201107-201612

*FGR=45:8=5.625

main41110-36670iBB42..22S199905-201107

*FGR=41:7=5.857

sub41110-36671

main41110-36670iBB42..26S..WC..GEN;HZB50..LHD..HRF..STD..WC..GEN199908-200408

*FGR=41:7=5.857,AXLE CODE=A04A

sub41110-36671

main41110-36671iHZB50..RHD;BB42..WC..GEN201107-201612

*FGR=41:7=5.857

main41110-36680iRZB50..CHI199907-201107

*FGR=43:7=6.142

sub41110-36681

main41110-36681iBB42..LHD..WOC;HZB50..HRF..WOC201107-201612

*FGR=43:7=6.142

main41110-37040iBB40,42,HZB50..(19S,22S,26S)..WOC199505-199907

*FGR=41:8=5.125

sub41110-37100

main41110-37090iXZB50..4FC200708-201108

*FGR=39:8=4.875

sub41110-37091

main41110-37091iXZB50..4FC201108-201612

*FGR=39:8=4.875

main41110-37100iBB42..WOC..GCC;BB42..RHD..HRF..WOC199907-201108

*FGR=41:8=5.125

sub41110-37101

main41110-37101iBB42..WOC201108-201612

*FGR=41:8=5.125

main41110-37110iXZB40,5#..GEN..5F;HZB50,XZB50..WOC..CBU199907-201107

*FGR=43:8=5.375

sub41110-37111

main41110-37111iHZB50..WOC;XZB40,5#..5F201107-201612

*FGR=43:8=5.375

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-16022iBB4#,5#,HZB50,RZB40,50199301-201501

41115RING, DIFFERENTIAL OIL STORAGE

main41115-37010iXZB50..STD..GEN199905-201501

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-39797iTRB50;BB42..LHD..WOC;HZB50..HRF..WOC200910-201107

*FGR=43:7=6.142

sub41201-39798

sub41204-36080

sub41204-36090

main41201-39798iTRB50201107-201501

*FGR=43:7=6.142

main41201-80041iBB4#,HZB50..(19S,22S,26S)..WOC199301-199505

*FGR=41:8=5.125

sub41201-80089

main41201-80042iHZB50..RHD..SRF;HZB50..WOC..GEN;BB43,HZB50..(17S,19S,20S,22S)..WC..(ARL,GEN)..5F199301-199907

*FGR=43:8=5.375

sub41201-80146

main41201-80043iBB42..GEN,SCO;HZB50..GEN..4FC;BB4#..WC..(ARL,GCC);HZB50..(20S,30S)..5F199301-199705

*FGR=45:8=5.625

sub41201-80123

main41201-80044iRZB40..WOC..GEN;HZB50..LHD..SRF..WC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);HZB50..RHD..HRF..STD..WC..GEN..5F199301-200408

*FGR=41:7=5.857

sub41201-80756

sub41204-36090

main41201-80045iHZB50,RZB50..CBR,TD199301-200408

*FGR=43:7=6.142

sub41201-39797

main41201-80089iBB40,42,HZB50..(19S,22S,26S)..WOC199505-199907

*FGR=41:8=5.125

sub41201-39826

main41201-80123iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,50..19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199705-200408

*FGR=45:8=5.625

sub41201-80755

sub41204-36090

main41201-80146iHZB50..LHD..EX;HZB50..LHD..WOC199907-200408

*FGR=43:8=5.375

sub41201-80620

main41201-80151iBB42..WOC..GCC;BB42..RHD..HRF..WOC199907-200408

*FGR=41:8=5.125

sub41201-80611

sub41204-37090

sub41204-37100

main41201-80365iBB42..WOC200408-201107

*FGR=41:8=5.125

sub41201-80611

sub41204-37090

sub41204-37100

main41201-80366iBB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)200408-201107

*FGR=45:8=5.625

sub41201-80757

sub41204-36090

main41201-80367iRZB50200408-200909

*FGR=43:7=6.142

sub41201-39797

main41201-80368iRZB40..GEN;RZB40..SRF..GCC200408-201107

*FGR=41:7=5.857

sub41201-80758

sub41204-36090

main41201-80369iXZB50..STD..GEN200408-200912

*FGR=43:8=5.375

sub41201-80620

main41201-80370iXZB50..4FC200708-200912

*FGR=39:8=4.875

sub41201-80600

main41201-80600iXZB50..4FC201001-201107

*FGR=39:8=4.875

sub41201-80601

sub41204-36090

sub41204-37100

main41201-80601iXZB50..4FC201107-201501

*FGR=39:8=4.875

main41201-80611iBB42..WOC201107-201501

*FGR=41:8=5.125

main41201-80620iHZB50..WOC;XZB40,5#..5F201001-201107

*FGR=43:8=5.375

sub41201-80621

sub41204-36090

sub41204-37100

main41201-80621iHZB50..WOC;XZB40,5#..5F201107-201209

*FGR=43:8=5.375

sub41201-80760

main41201-80757iBB42..LHD..HRF201107-201501

*FGR=45:8=5.625

main41201-80758iTRB40;HZB50..LHD..WC..GEN201107-201501

*FGR=41:7=5.857

main41201-80760iHZB50..WOC;XZB40,5#..(ARL,GEN,TAIW)..5F201210-201501

*FGR=43:8=5.375

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40001iBB4#,5#,HZB50,RZB40,50199301-199905

sub90366-40100

main90366-40100iBB4#,5#,HZB50,RZB40,50199905-201501

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-35023iBB4#,5#,HZB50,RZB40,50199301-199905

main90366-35108iXZB50..WOC..CBU199905-201501

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-48019iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199905-200404

sub90311-48024

main90311-48024iXZB50..STD..GEN200404-201501

main90311-48135iBB4#,5#,HZB50,RZB40,50199301-199905

sub90311-48019

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-40551iBB4#,50,HZB50,RZB40,50199301-199610

T=1.05

sub90564-40004

main90201-40552iBB4#,50,HZB50,RZB40,50199301-199610

T=1.10

sub90564-40007

main90201-40553iBB4#,50,HZB50,RZB40,50199301-199610

T=1.15

sub90564-40009

main90201-40554iBB4#,50,HZB50,RZB40,50199301-199610

T=1.20

sub90564-40011

main90201-40555iBB4#,50,HZB50,RZB40,50199301-199610

T=1.25

sub90564-40013

main90201-40556iBB4#,50,HZB50,RZB40,50199301-199610

T=1.30

sub90564-40015

main90201-40557iBB4#,50,HZB50,RZB40,50199301-199610

T=1.35

sub90564-40017

main90201-40558iBB4#,50,HZB50,RZB40,50199301-199610

T=1.40

sub90564-40019

main90201-40559iBB4#,50,HZB50,RZB40,50199301-199610

T=1.45

sub90564-40021

main90201-40560iBB4#,50,HZB50,RZB40,50199301-199610

T=1.50

sub90564-40023

main90201-40561iBB4#,50,HZB50,RZB40,50199301-199610

T=1.55

sub90564-40025

main90564-40004iXZB50..IV199610-201501

T=1.05

main90564-40006iBB50..WOC..6F;BB50..STD..WC..IV199610-201501

T=1.075

main90564-40007iRZB40..HRF..GCC199610-201501

T=1.10

main90564-40008iBB42..LHD..HRF199610-201501

T=1.125

main90564-40009iBB4#,5#,HZB50,RZB40,50199610-201501

T=1.15

main90564-40010iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199610-201501

T=1.175

main90564-40011iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)199610-201501

T=1.20

main90564-40012iBB50..WOC..6F;BB50..STD..WC..IV199610-201501

T=1.225

main90564-40013iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199610-201501

T=1.25

main90564-40014iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199610-201501

T=1.275

main90564-40015iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199610-201501

T=1.30

main90564-40016iBB50..WOC..6F;BB50..STD..WC..IV199610-201501

T=1.325

main90564-40017iBB50,HZB50,RZB40,50..ARL,CHI199610-201501

T=1.35

main90564-40018iBB42..LHD..HRF199610-201501

T=1.375

main90564-40019iXZB50..STD..GEN199610-201501

T=1.40

main90564-40020iBZB50..EX;BB5#..TDEFI199610-201501

T=1.425

main90564-40021iBB50..WOC..6F;BB50..STD..WC..IV199610-201501

T=1.45

main90564-40022iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199610-201501

T=1.475

main90564-40023iBB50..WOC..6F;BB50..STD..WC..IV199610-201501

T=1.50

main90564-40024iBB4#,5#,HZB50,RZB40,50199610-201501

T=1.525

main90564-40025iXZB50..IV199610-201501

T=1.55

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35019iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201501

T=1.80

main90564-35020iBB42..LHD..HRF199301-201501

T=1.82

main90564-35021iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

T=1.84

main90564-35022iXZB50..STD..GEN199301-201501

T=1.86

main90564-35023iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

T=1.88

main90564-35024iBB42..LHD..HRF199301-201501

T=1.90

main90564-35025iXZB50..WOC..CBU199301-201501

T=2.00

main90564-35026iBB42..LHD..HRF199301-201501

T=2.10

main90564-35027iBB4#,5#,HZB50,RZB40,50199301-201501

T=2.20

main90564-35028iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

T=2.30

main90564-35029iBB42..LHD..HRF199301-201501

T=2.40

main90564-35030iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

T=2.50

main90564-35031iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199301-201501

T=2.60

main90564-35032iRZB40..HRF..GCC199301-201501

T=2.70

main90564-35033iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)199301-201501

T=2.80

main90564-35034iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

T=2.90

main90564-35035iBB42..LHD..HRF199301-201501

T=3.00

main90564-35036iRZB40..HRF..GCC199301-201501

T=1.81

main90564-35037iXZB50..IV199301-201501

T=1.83

main90564-35038iBZB50..EX;BB5#..TDEFI199301-201501

T=1.85

main90564-35039iBB4#,5#,HZB50,RZB40,50199301-201501

T=1.87

main90564-35040iBB4#,5#,HZB50,RZB40,50199301-201501

T=1.89

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-36050iBB4#,5#,HZB50,RZB40,50199301-199905

main41204-36090iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#201107-201501

main41204-37010iBZB50..EX;BB5#..TDEFI199905-201108

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-23002iBB4#,5#,HZB50,RZB40,50199301-200802

41204BNUT (FOR REAR DRIVE PINION)

main90179-22003iBB4#,5#,HZB50,RZB40,50199301-200802

OD=29

main90179-22029iXZB50..STD..GEN200802-201501

OD=43

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-36030iBB4#,5#,HZB50,RZB40,50199301-199905

sub41214-37010

main41214-37010iBB4#,5#,HZB50,RZB40,50199905-201501

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-36020iBB4#,5#,HZB50,RZB40,50199301-201501

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-14315iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-36040iBB4#,5#,HZB50,RZB40,50199301-201501

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-36010iBB4#,5#,HZB50,RZB40,50199301-199905

sub41252-37020

main41252-37020iBB4#,5#,HZB50,RZB40,50199905-201501

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-36030iBB42..LHD..HRF199301-201501

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-52004iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199905-201501

main90368-52043iBB4#,5#,HZB50,RZB40,50199301-199905

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-12087iBB4#,5#,HZB50,RZB40,50199301-201501

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-36011iBB42..LHD..HRF199301-201501

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-36011iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201501

TYPE A:REFER ILLUST.

main41317-36011iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

TYPE B:REFER ILLUST.

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-36020iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

41341PINION, REAR DIFFERENTIAL

main41341-55012iBB4#,5#,HZB50,RZB40,50199301-199710

sub41341-55013

main41341-55013iBB4#,5#,HZB50,RZB40,50199710-201501

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-35011iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201501

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-60010iBB4#,50,HZB50,RZB40,50199301-199609

T=1.60

sub41361-60011

main41361-60011iRZB50;RZB40..GEN;RZB40..SRF..GCC199609-201501

T=1.60

main41361-60020iBB4#,50,HZB50,RZB40,50199301-199609

T=1.75

sub41361-60021

main41361-60021iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199609-201501

T=1.75

main41361-60030iBB4#,50,HZB50,RZB40,50199301-199609

T=1.90

sub41361-60031

main41361-60031iBB4#,5#,HZB50,RZB40,50199609-201501

T=1.90

main41361-60040iBB4#,50,HZB50,RZB40,50199301-199609

T=2.05

sub41361-60041

main41361-60041iBZB50..EX;BB5#..TDEFI199609-201501

T=2.05

main41361-60480iRZB50;RZB40..GEN;RZB40..SRF..GCC199609-201501

T=1.55

main41361-60490iBB50,HZB50,RZB40,50..ARL,CHI199609-201501

T=1.65

main41361-60500iBB42..LHD..HRF199609-201501

T=1.70

main41361-60510iXZB50..IV199609-201501

T=1.80

main41361-60520iXZB50..WOC..CBU199609-201501

T=1.85

main41361-60530iBZB50..EX;BB5#..TDEFI199609-201501

T=1.95

main41361-60540iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)199609-201501

T=2.00

main41361-60550iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199609-201501

T=2.10

41371SPIDER, REAR DIFFERENTIAL

main41371-36011iBB4#,5#,HZB50,RZB40,50199301-201501

9161160814

main91611-60814

29 parts on this diagram · 2 diagrams in section
