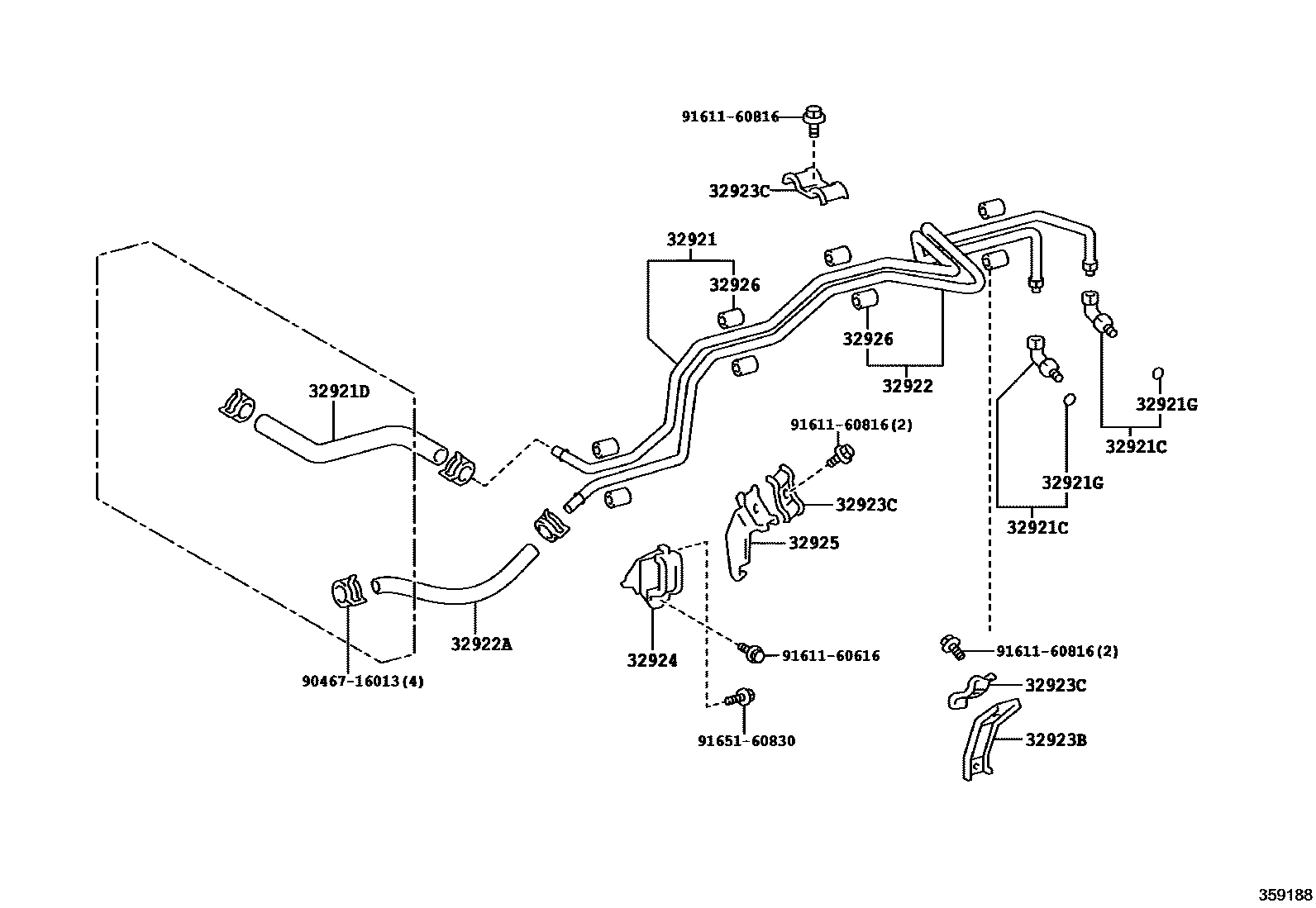

OIL COOLER & TUBE (ATM)
32921TUBE, OIL COOLER INLET, NO.1
NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2
32921CUNION(FOR OIL COOLER TUBE)
OUTLET
INLET
32921DHOSE(FOR OIL COOLER INLET)
L=270
L=275
32921GRING, O(FOR OIL COOLER TUBE UNION)
32922TUBE, OIL COOLER OUTLET, NO.1
NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2
32922AHOSE(FOR OIL COOLER OUTLET)
32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32924CLAMP, OIL COOLER TUBE, NO.2
32925CLAMP, OIL COOLER TUBE, NO.3
32926CUSHION, OIL COOLER TUBE(ATM)
L=35,ID=12
L=45,ID=12
9046716013
main90467-16013
9161160616
main91611-60616
9161160816
main91611-60816
9165160830
main91651-60830
16 parts on this diagram · 4 diagrams in section
