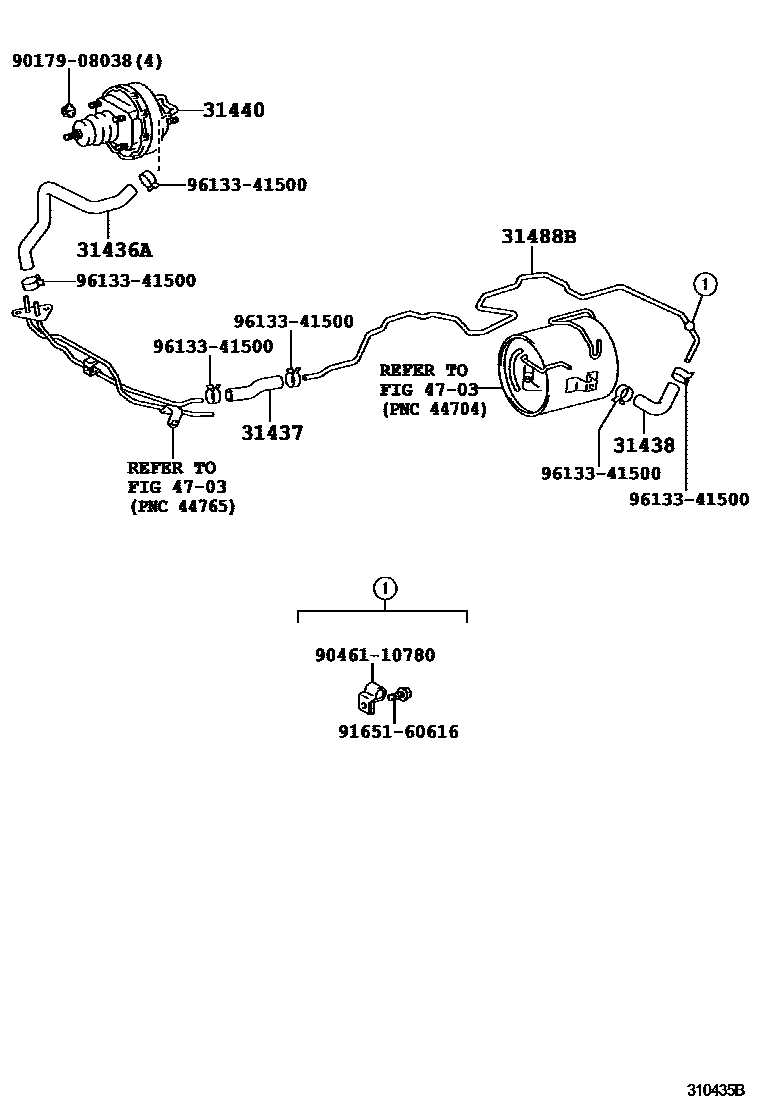

CLUTCH BOOSTER

0001 1 0002 1

31436AHOSE, NO.1(FOR CLUTCH BOOSTER VACUUM)

main31436-36110iBB43,50,HZB50..RHD..TD199301-199907

main31436-36120iBZB50..EX;BB50,59..RHD200408-200608

sub31436-36121

main31436-36130iBB5#..STD..GEN199705-199907

main31436-36140iBB50,58..LHD..TDEFI200408-200608

main90445-17133iBB50,HZB50..LHD..EUR199301-199907

31437HOSE, NO.2(FOR CLUTCH BOOSTER VACUUM)

main44771-36240iBB50,58..LHD..TDEFI200408-200608

main44771-36310iXZB50..LHD..IV200708-201311

main90445-17141iXZB50..STD..GEN200408-200803

31438HOSE, NO.3(FOR CLUTCH BOOSTER VACUUM)

main44775-36030iBB43,5#,HZB50..TD199301-199907

main44775-36100iXZB50..WOC..CBU200704-200908

31440BOOSTER ASSY, CLUTCH W/AIR CLEANER

main31440-36060iBB50..EX;BB50..EUR;BB43,HZB50..TD199301-199907

main31440-36070iBB5#..STD..GEN199705-199907

main31440-36080iXZB50..RHD..IV200408-201311

main31440-36090iBB50,58..LHD..TDEFI200408-200608

31488BTUBE, VACUUM HOSE TO VACUUM HOSE

main31488-36470iHZB50..TD199301-199605

main31488-36540iBB50..LHD..EUR199605-199907

main31488-36550iBB50..RHD..IV199605-199907

main31488-36560iBB50,59..5F200408-201501

main31488-36630iBB50..LHD..IV..6F199907-200105

main31488-36660iBB50..RHD..6F199907-200105

main31488-36720iBZB40,50200108-200408

main31488-36740iXZB40,5#..(ARL,GEN)..5F200608-201501

main31488-36770iXZB50..RHD..IV200608-201311

main31488-36780iXZB50..LHD200608-201501

4703

9017908038

main90179-08038

9046110780

main90461-10780

9165160616

main91651-60616

9613341500

main96133-41500

10 parts on this diagram · 2 diagrams in section
