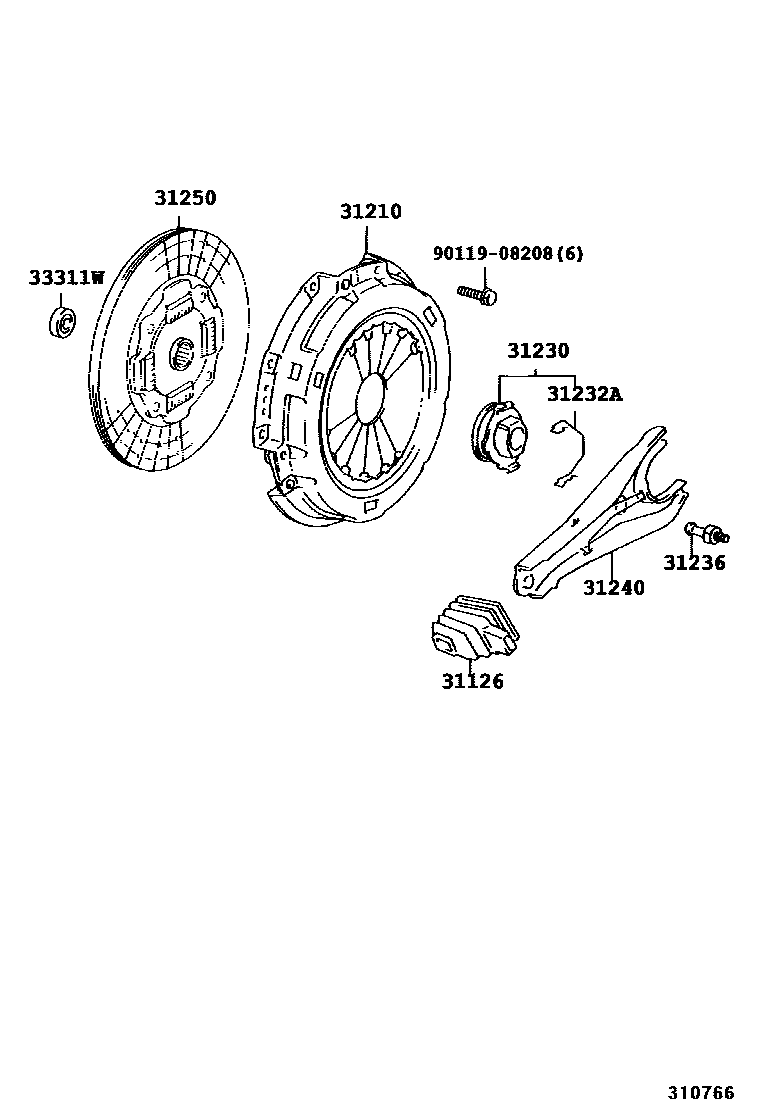

CLUTCH & RELEASE FORK

0001 1 0003 1 0004 1 0006 1 0007 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iRZB40,50199309-199505

main31126-36070iBB50,HZB50..ARL,CHI199301-201501

main31126-36080iBB42,TRB40,50199301-201501

31210COVER ASSY, CLUTCH

main31210-35200iRZB40,50199309-199907

sub31210-26170

main31210-35291iTRB40,50200708-201501

main31210-36160iBB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC199708-200111

sub31210-36161

main31210-36161iBB42200111-200612

sub31210-36330

main31210-36210iBB4#199301-199708

sub31210-36160

main31210-36220iHZB50..RHD..EX;HZB50..RHD..SRF;HZB50..RHD..WOC..GEN199907-200407

sub31210-36221

main31210-36221iHZB50200407-200704

sub31210-36340

main31210-36230iHZB50..5F..DSL199301-199907

sub31210-36231

main31210-36240iBB50..CBU..6F199907-200111

sub31210-36320

main31210-36250iBB58199907-200406

sub31210-36251

main31210-36290iBB58200407-200608

sub31210-36291

main31210-36291iXZB50..IV200608-201512

sub31210-36292

main31210-36292iXZB40,5#..5F201601

main31210-36300iRZB40,50200605-200708

sub31210-36301

main31210-36310iBB59,BZB50..EX;BB50..5F..TDEFI200601-201501

main31210-36320iBB50..6F200603-200608

main31210-36330iBB42..RHD;BB42..LHD..SRF200701-201501

main31210-36340iHZB50200705-201501

main31210-37030iBB50..CHI199705-200512

sub31210-36310

main31210-37050iRZB40..HRF..GCC199907-200604

sub31210-36300

main31210-60150iBB50,HZB50..EUR199301-199907

sub31210-60151

main31210-60210iBB50..6F200111-200602

sub31210-36320

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iTRB40,50199309-200805

sub31230-35071

main31230-35071iTRB40,50200805-201501

main31230-36150iBB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC199301-200803

sub31230-36151

main31230-36151iBB42..RHD;BB42..LHD..SRF200803-201501

main31230-36200iHZB50,XZB40,59;XZB50..(20S,21S)..WC..5F199301-201501

main31230-37010iBB50..CHI199705-201501

31232ACLIP, RELEASE BEARING HUB

main31232-35020iRZB40..HRF..GCC199907-201501

TYPE A:REFER ILLUST.

main31232-35020iRZB40,50199309-199907

TYPE A:REFER TO ILLUSTRATION

main31232-35030iRZB40..WOC..GCC;RZB40..22S..GEN199309-200408

TYPE B:REFER TO ILLUSTRATION

main31232-35030iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-201501

TYPE B:REFER ILLUST.

main31232-36010iBB42..LHD..HRF199301-201501

main31232-36030iXZB50..WOC..CBU199301-201501

main31232-37010iBB50,BZB40,50..STD..(LPG,TD)199705-201501

31236BALL, RELEASE FORK

main31236-30060iRZB40,50199309-199705

main31236-35030iBB42..LHD..HRF199301-201501

main31236-36060iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

main31236-37020iRZB40,50199705-201501

31240FORK ASSY, CLUTCH RELEASE

main31204-20071iRZB40,50199309-201501

main31204-35031iBB40,42;BB50..EUR199301-201501

main31204-36140iHZB50..5F199301-199501

sub31204-36141

main31204-36141iHZB50..5F199501-199705

sub31204-36142

main31204-36142iBZB50..EX;BB5#..TDEFI199705-201501

31250DISC ASSY, CLUTCH

main31250-26230iRZB50..GCC;RZB40..SRF..GCC200407-200708

sub31250-26231

main31250-34010iRZB40,50199309-199705

sub31250-35400

main31250-35400iRZB40..WOC..GCC;RZB40..22S..GEN199705-200407

sub31250-26230

main31250-36450iBB40,42199301-200004

sub31250-36451

main31250-36451iBB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC200004-200511

sub31250-36452

main31250-36452iBB42200512-200808

sub31250-36630

main31250-36482iBB50..EUR199605-199907

sub31250-36483

main31250-36490iHZB50..5F199301-199308

sub31250-36492

main31250-36500iHZB50..5F199308-199412

sub31250-36502

main31250-36502iHZB50..5F199412-200004

sub31250-36503

main31250-36503iHZB50200004-200511

sub31250-36504

main31250-36504iHZB50200512-200804

sub31250-36620

main31250-36520iBB43,5#..17S,20S,23S,30S199802-200012

sub31250-36521

main31250-36521iBB50..EX..TDEFI;BB58,59,BZB40,50;BB50..STD..GEN..CBU..5F200012-200507

sub31250-36570

main31250-36550iXZB40,59;XZB50..IV;XZB50..(20S,21S)..5F200608-200904

sub31250-36551

main31250-36551iXZB50..IV200905-201501

sub31250-36552

main31250-36570iBB50,BZB40,50..STD..(LPG,TD)200508-201111

sub31250-36571

main31250-36571iBZB40,50201112-201501

sub31250-36572

main31250-36580iRZB40,50..GCC200612-200907

sub31250-60500

main31250-36620iHZB50200805-201101

sub31250-36621

main31250-36621iHZB50201102-201111

sub31250-36622

main31250-36622iHZB50201112-201501

sub31250-36623

main31250-36630iBB42200809-201101

sub31250-36631

main31250-36631iBB42..LHD..HRF201102-201111

sub31250-36632

main31250-36632iBB42201112-201501

main31250-37040iBB50..IV;BB50..CBU..6F199705-200012

sub31250-37041

main31250-37041iBB50..6F200012-200508

sub31250-36571

main31250-60500iTRB40,50200908-201705

sub31250-60501

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBB4#,5#,RZB40,50199301-200006

sub90363-12024

main90363-12018iBB42..RHD;BB42..GCC;RZB40,50..GCC,GEN199904-201501

main90363-15017iHZB50199301-201501

main90363-17037iXZB40,5#..5F200608-201501

mainSZ37117009iXZB40,5#..5F201501

9011908208

main90119-08208

9 parts on this diagram · 5 diagrams in section
