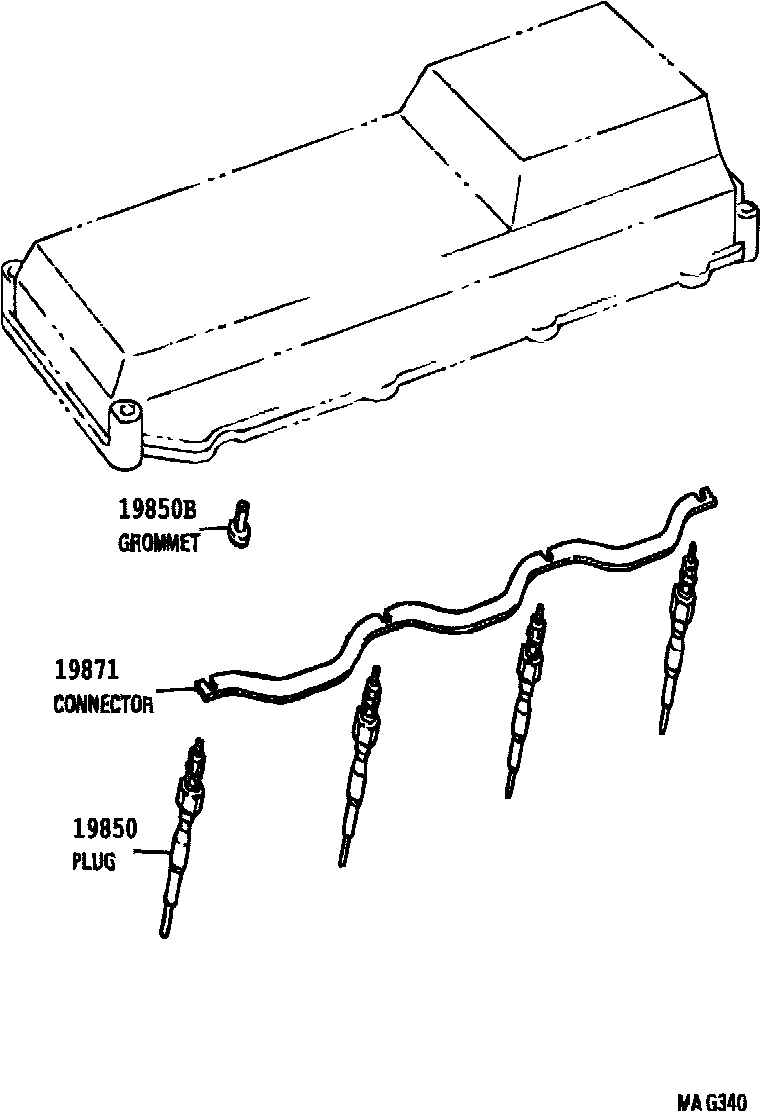

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

19850PLUG ASSY, GLOW

main19850-17010i1HZ..HZB50..ARL199705-201501

*BV-GV=24V-23V

main19850-17010i1HZ..HZB50..GCC;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..HRF..WOC;1HZ..HZB50..RHD..HRF..STD..WC..GEN..5F199705-200408

*BV-GV=24V-23V,*EX-USSR

main19850-17020i1HZ..HZB50..LHD..WOC199907-201501

*BV-GV=12V-11V

main19850-58010i3B..BB40199301-199907

*BV-GV=24V-23V

main19850-58010i3B..BB40199301-199907

*BV-GV=24V-23V,BATTERY (48D26R X2)

main19850-58010i1HZ..HZB50..SRF..WOC199505-199907

*BV-GV=24V-23V,BATTERY(48D26R X2 OR 95D31R X2)

main19850-58010i1HZ..HZB50..SRF..WOC199301-199505

*BV-GV=24V-23V,CIS SPEC OR BATTERY(48D26R X2)

main19850-64031i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199301-199907

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i3B..BB40199301-201501

19871CONNECTOR, GLOW PLUG NO.1

main19871-17010i1HZ#..HZB50199301-201501

main19871-56020i3B..BB40199301-199907

3 parts on this diagram · 8 diagrams in section
