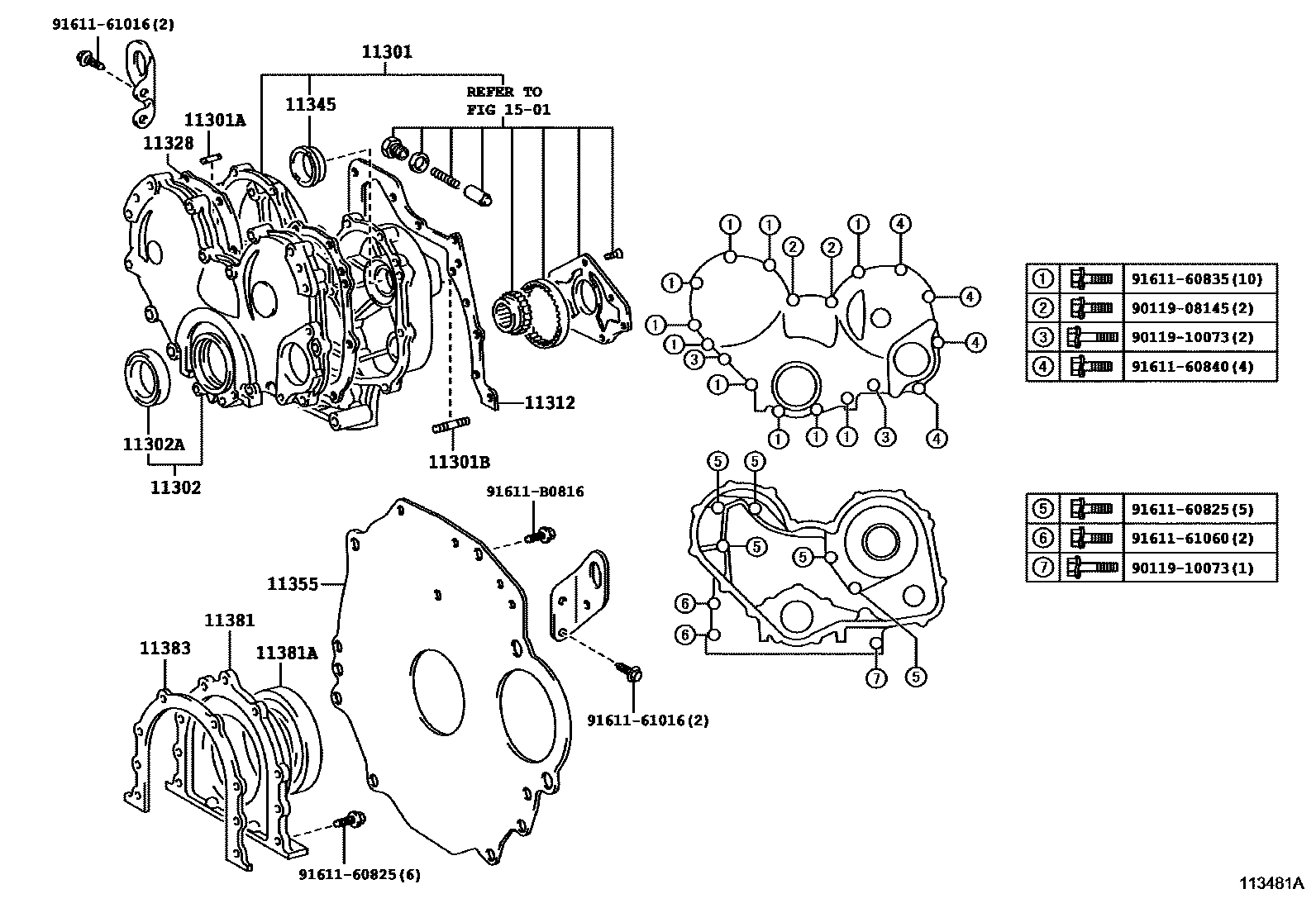

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-17020i1HZ#..HZB50199301-199408

sub11301-17021

main11301-17021i1HZ#..HZB50199408-199705

main11301-17030i1HZ..HZB50199705-201501

main11301-56080i14B,3B..BB4#199301-199411

sub11301-58020

main11301-58011i15BFT..BB58;15BFT..BB50..GEN..IV199705-199905

sub11301-58012

main11301-58012i1BZFPE..BZB40,50199905-201501

main11301-58020i14B,3B..BB40,42199411-199905

sub11301-58021

main11301-58021i14B,3B..BB40,42199905-201501

main11301-58030i15BFT..BB50..EUR;15BFT..BB43,50..CBU199605-199905

sub11301-58031

main11301-58031i15BFT..BB50..STD..GEN..CBU..5F199905-201501

main11301-58040i15BFTE..BB5#199907-200608

main11301-75020i3RZF..RZB40,50199309-199704

sub11301-75021

main11301-75021i3RZFE..RZB40..WOC..GCC;3RZFE..RZB40..22S..GEN199704-200708

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08054i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199301-201501

L=23,OD=8

main90250-08120i14B,15BFT,3B..BB4#,5#199301-201501

L=18,OD=8

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-08169i1BZFPE..BZB50..EX199301-201501

main90116-10160i1HZ#..HZB50199301-201501

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-56061i14B,3B..BB4#199301-199505

main11302-58010i15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58199505-199904

sub11302-58011

main11302-58011i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;14B,1BZFPE..BB42,BZB40,50..HRF..(17S,21S,26S)..WC199904-201501

main11302-58030i15BFT..BB50..EUR;15BFT..BB43,50..CBU199605-199904

sub11302-58031

main11302-58031i15BFT..BB50..EUR;15BFT..BB43,50..CBU199904-201501

main11302-58060i15BFTE..BB5#199907-200608

main11310-75070i2TRFE..TRB40,50200708-200711

sub11310-75071

main11310-75071i2TRFE..TRB40,50200711-200902

sub11310-75073

main11310-75073i2TRFE..TRB40,50200902-201406

sub11310-75074

sub91671-80840

main11310-75074i2TRFE..TRB40,50201406-201501

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90033-11040iN04C..XZB40,59;N04C..XZB50..(20S,21S)..WC200608-201501

main90311-50013i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S199301-201501

main90311-58006i1HZ..HZB50199301-201501

NO.1

main90311-58007i1HZ..HZB50199301-201501

NO.2

mainSZ31358002iN04C..XZB40,5#201501

11312GASKET, FRONT END PLATE

main11312-56040i14B,15BFT,3B..BB4#,5#199301-201501

main11312-58010i15BFTE..BB5#199907-200608

main11312-78011iN04C..XZB50..STD..GEN200608-201107

subS1131-21170

mainS113121170iN04C..XZB40,5#..ARL,GEN,TAIW201107-201501

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-17010i1HZ#..HZB50199301-199705

main11328-17030i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199705-201501

sub11328-43040

main11328-56050i14B,15BFT,3B..BB4#,5#199301-199905

main11328-58010i14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1BZFPE..BB50,BZB40,50..STD199905-201501

main11328-58020i15BFTE..BB5#199907-200608

main11328-75020i3RZF..RZB40,50199309-199904

sub11328-75021

main11328-75021i3RZF..RZB40,50199904-200708

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010i15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58199301-201501

11355PLATE, REAR END

main11355-17010i1HZ#..HZB50..5F199301-199710

sub11355-17011

main11355-17011i1HZ..HZB50..ARL199710-201501

main11355-17020i1HZ..HZB50..4FC199301-199710

sub11355-17021

main11355-17021i1HZ..HZB50..4FC199710-200108

main11355-56061i14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC199301-201501

main11355-58050i15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F199705-201501

main11355-75010i3RZFE..RZB40,50199309-200708

main11355-75021i2TRFE..TRB40,50200708-201501

11381RETAINER, ENGINE REAR OIL SEAL

main11381-17010i1HZ..HZB50199301-201501

main11381-56033i14B,3B..BB4#199301-199411

sub11381-58010

main11381-58010i14B,15BFT,3B..BB4#,5#199411-199905

sub11381-58011

main11381-58011i14B,15BFT,3B..BB4#,5#199905-201501

main11381-75010i3RZF..RZB40,50199309-200812

sub11381-75011

main11381-75011i2TRFE..TRB40,50200812-201406

sub11381-75012

main11381-75012i2TRFE..TRB40,50201407-201501

11381ASEAL, ENGINE REAR OIL

main90311-88003i3RZFE..RZB40,50199309-200009

main90311-88004i3RZFE..RZB40,50200009-200408

ARS

sub90311-88005

main90311-88005i3RZFE..RZB40,50200009-200408

NOK

sub90311-88006

main90311-88005i3RZFE..RZB40,50200408-201410

sub90311-88006

main90311-88006i2TRFE..TRB40,50201411-201501

main90311-95008i1HZ..HZB50199301-201501

main90311-95010i14B,3B..BB4#199303-199412

sub90311-95008

main90311-95011i15BFT..BB50..CHI199505-201501

main90311-99002iN04C..XZB40,59;N04C..XZB50..(20S,21S)..WC200608-201501

subSZ311-00004

mainSZ31100002iN04C..XZB40,5#201501

subSZ311-00004

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-56040i15BFT..BB50..CHI199301-201501

1501

9011908145

main90119-08145

9011910073

main90119-10073

9161160825

main91611-60825

9161160835

main91611-60835

9161160840

main91611-60840

9161161016

main91611-61016

9161161060

main91611-61060

91611B0816

main91611-B0816

21 parts on this diagram · 14 diagrams in section
