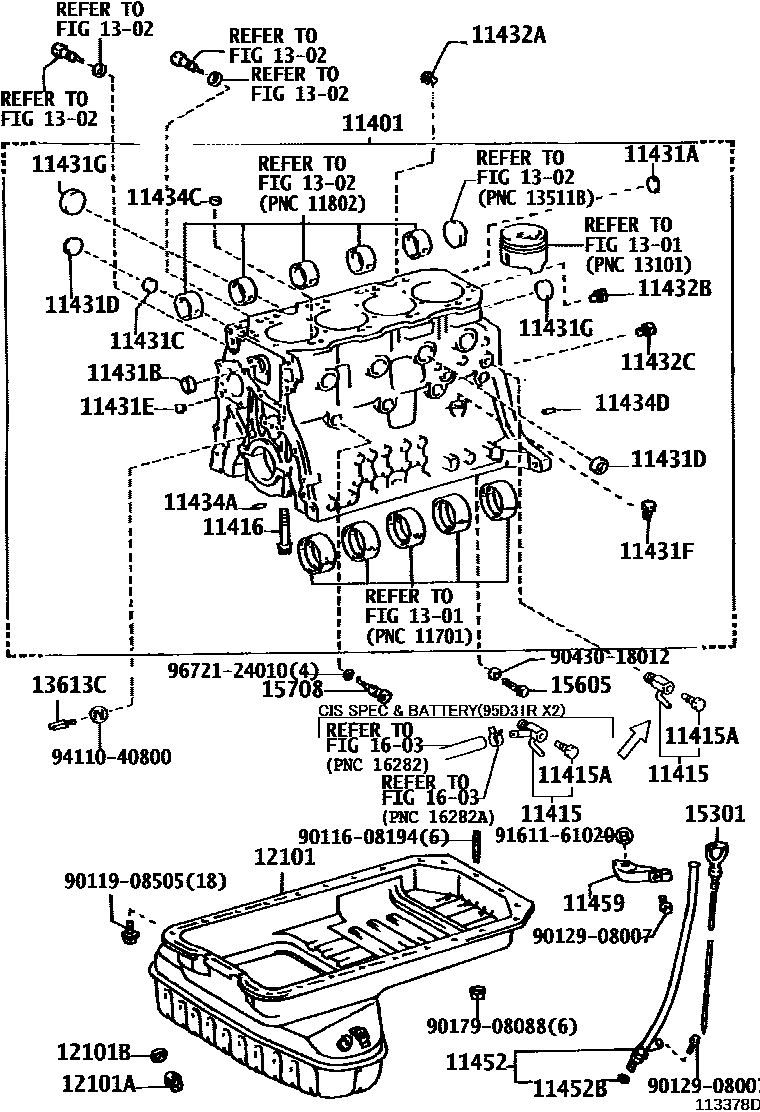

CYLINDER BLOCK

0001 1 0002 1 0003 1CHINA YOJO SPEC 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19606i1HZ..HZB50..GCC,GEN199301-199411

sub11401-19607

sub91622-G1014

main11401-19607i1HZ..HZB50..(20S,30S)..(GCC,GEN)199411-199705

sub11401-19608

sub90345-52003

main11401-19608i1HZ..HZB50..(GCC,GEN)..5F199705-199801

sub11401-19609

main11401-19609i1HZ..HZB50..(GCC,GEN)..5F199801-199907

sub11401-80040

main11401-19636i1HZ..HZB50..ARL199301-199411

*EX-USSR OR FR HEATER(MANUAL 120W W/O FILTER)

sub11401-19637

sub91622-G1014

main11401-19636i1HZ..HZB50..GCC;1HZ..HZB50..LHD..EX;1HZ..HZB50..RHD..GEN;1HZ..HZB50..GEN..4FC;1HZ..HZB50..LHD..HRF..WOC199301-199411

FR HEATER(MANUAL 120W W/O FILTER)

sub11401-19637

sub91622-G1014

main11401-19637i1HZ..HZB50..GCC;1HZ..HZB50..LHD..EX;1HZ..HZB50..RHD..GEN..5F;1HZ..HZB50..LHD..HRF..WOC;1HZ..HZB50..30S..GEN..4FC199411-199705

FR HEATER(MANUAL 120W W/O FILTER)

sub11401-19638

sub90345-52003

main11401-19637i1HZ..HZB50..ARL199411-199705

*EX-USSR OR FR HEATER(MANUAL 120W W/O FILTER)

sub11401-19638

sub90345-52003

main11401-19638i1HZ..HZB50..GCC;1HZ..HZB50..LHD..EX;1HZ..HZB50..RHD..GEN..5F;1HZ..HZB50..LHD..HRF..WOC199705-199801

*EX-USSR OR FR HEATER(MANUAL 120W W/O FILTER)

sub11401-19639

main11401-19638i1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN199705-199801

FR HEATER(MANUAL 120W W/O FILTER)

sub11401-19639

main11401-19639i1HZ..HZB50..ARL199801-199907

*EX-USSR OR FR HEATER(MANUAL 120W W/O FILTER)

sub11401-80043

main11401-19639i1HZ..HZB50..ARL199801-199907

FR HEATER(MANUAL 120W W/O FILTER)

sub11401-80043

main11401-19765i1HZ..HZB50..SCO199301-199411

sub11401-19766

sub91622-G1014

main11401-19766i1HZ..HZB50..SCO;1HZ..HZB50..22S..4FC199411-199705

sub11401-19767

sub90345-52003

main11401-19767i1HZ..HZB50..4FC199705-199801

sub11401-19768

main11401-19768i1HZ..HZB50..4FC199801-199907

sub11401-19769

main11401-19775i1HZT..HZB50199301-199411

sub11401-19776

sub91622-G1014

main11401-19776i1HZT..HZB50199411-199605

sub11401-19777

sub90345-52003

main11401-49735i1BZFPE..BZB40,50..STD200108-201612

sub11401-49736

main11401-59396i14B..BB42199307-199502

main11401-59397i14B..BB42..LHD..HRF..26S..WC199705-200404

YOJO SPEC

sub11401-59398

sub13511-56071

main11401-59416i3B..BB40199307-199502

sub11401-59417

main11401-59535i3B..BB40199301-199307

sub11401-59415

sub96411-41200

main11401-59536i3B..BB40199502-199505

main11401-59537i3B..BB40199505-199907

sub11401-59417

sub96411-41200

main11401-59545i14B..BB42199301-199307

sub11401-59395

sub90345-52001

sub90345-53004

sub96411-41200

main11401-59546i14B..BB42199502-199505

main11401-59547i14B..BB42199505-200408

main11401-59595i15BFT..BB58;15BFT..BB50..GEN..IV199705-200108

sub11401-59596

sub13511-58021

main11401-59625i15BFT..BB50..CHI199605-200404

main11401-59725i15BFTE..BB5#199907-200608

sub11401-59726

sub13511-58031

main11401-59835i15BFT..BB50200404-201501

sub11401-59836

sub13511-58021

main11401-59845i14B..BB42200408-201612

sub11401-59846

main11401-75122i2TRFE..TRB40,50201406-201501

sub11401-75081

main11401-78250iN04C..XZB5#200608-200704

main11401-79685i3RZF..RZB40,50199309-199904

sub11401-79686

main11401-79686i3RZFE..RZB40,50199904-200411

sub11401-79687

main11401-79687i3RZFE..RZB40,50200404-200708

main11401-80041i1HZ..HZB50200408-201501

*EX-USSR OR FR HEATER(MANUAL 120W W/O FILTER)

main11401-80041i1HZ..HZB50201501

W/HEATER

main11401-80041i1HZ..HZB50..RHD;1HZ..HZB50..GCC199907-200408

FR HEATER(MANUAL 120W W/O FILTER)

main11401-80042i1HZ..HZB50..(GCC,GEN)..5F199907-201501

main11401-80760i2TRFE..TRB40,50200708-200709

sub11401-80772

sub11444-75020

main11401-80772i2TRFE..TRB40,50200709-201406

sub11401-75122

main11410-78300iN04C..XZB40,5#..ARL,GEN,TAIW201108-201501

sub11410-E0E41

main11410-78320iN04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S200704-200804

sub11410-78321

main11410-78321iN04C..XZB40,5#200804-200908

sub11410-E0471

main11410-78361iN04C..XZB40,5#200908-201108

sub11410-E0711

main11410-E0E41iN04C..XZB40,5#201501

sub11410-E0E42

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-52003i1HZ#..HZB50199301-199705

main90910-09075i1HZ..HZB50199705-200901

sub90910-09129

main90910-09078i15BFT..BB50..WOC..5F199705-200608

main90910-09078i14B..BB42..LHD..WOC..GEN199301-200701

CIS SPEC & BATTERY(95D31R X2)

main90910-09091i3RZF..RZB40,50199309-199905

main90910-09095i1BZFPE..BZB50..EX199904-201501

main90910-09118i2TRFE..TRB40,50199905-201501

main90910-09123i15BFTE..BB50,59200105-200608

main90910-09129i1HZ..HZB50200901-201501

main96431-53828i15BFT..BB50..EUR;14B,15BFT,3B..BB4#,50..CBU199301-199904

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F199309-201501

main96432-23814i14B,15BFT,3B..BB4#,5#199301-199904

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-16068i15BFTE..BB5#199907-200608

*16-2.0PX126-32

main90105-16069i15BFTE..BB5#199907-200608

*16-2.0PX109-32

main90119-08182i1HZ..HZB50199301-201501

NO.1

main90910-02082i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S199301-201501

*16-2.0PX93.5-32

main90910-02083i1BZFPE..BZB50..EX199301-201501

*16-2.0PX129.5-32

main90910-02092i3RZF..RZB40,50199309-201005

sub90910-02179

main90910-02098i1HZ..HZB50199301-201501

NO.2

main90910-02156iN04C..XZB50..WOC..CBU200608-201501

main90910-02179i2TRFE..TRB40,50201005-201501

mainS115211410iN04C..XZB40,5#201501

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90033-31026iN04C..XZB50..WOC..CBU200608-201501

main90331-35002i1HZ..HZB50..ARL199301-201501

main96411-14500i14B,15BFT,3B..BB4#,5#199301-199905

main96411-63000i3RZF..RZB40,50199309-201501

main96411-64500i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F199905-201501

mainSN41105016iN04C..XZB40,5#201501

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90033-31035iN04C..XZB50..IV200608-201501

main90331-50003i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199411-201501

main96411-41800i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199301-201501

main96411-45000i14B,3B..BB4#199301-199411

main96411-63500i3RZF..RZB40,50199309-201501

mainSN41104016iN04C..XZB40,5#201501

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90033-31034iN04C..XZB40,59;N04C..XZB50..(20S,21S)..WC200608-201501

main96411-42500i1HZ..HZB50199301-201501

main96411-43000i14B,3B..BB4#199301-199411

main96411-63000i14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1BZFPE..BB50,BZB40,50..STD199411-201501

main96411-64000i3RZFE..RZB40,50199309-201501

mainSN41103616iN04C..XZB40,5#201501

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90033-31020iN04C..XZB40,59;N04C..XZB50..(20S,21S)..WC200608-201501

main96411-43500i1HZ#..HZB50199301-201501

main96411-63500i15BFT..BB50..CHI199411-201501

mainSN41101712iN04C..XZB40,5#201501

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90331-14006i14B,1BZFPE..BB42,BZB40,50199411-201501

main96411-41400i14B,3B..BB4#199301-199411

main96411-45000i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199301-201501

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main90331-14005iN04C..XZB50..STD..GEN200608-201501

main96411-41200i14B,1BZFPE..BB42,BZB40,50199301-201501

main96411-43500i1HZ..HZB50199301-201501

mainSZ33114001iN04C..XZB40,5#201501

11431GPLUG, TIGHT

main96411-45000i14B,15BFT,3B..BB4#,5#199411-199905

OD=50,T=1.6,H=12

main96411-45000i14B,3B..BB4#199301-199411

main96411-65000i15BFT..BB50..CHI199905-201501

main96411-65000i14B,15BFT,3B..BB4#,5#199411-199905

OD=50,T=1.2,H=12

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51007i14B..BB42..LHD..HRF199301-201501

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53004i14B..BB42..LHD..HRF199301-201501

11432CPLUG, W/HEAD TAPER SCREW, NO.3

main90345-52001i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199301-201501

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90032-50050iN04C..XZB40,59;N04C..XZB50..(20S,21S)..WC200704-201501

L=24,OD=8

main90250-08015iN04C..XZB5#200608-200704

L=24,OD=8

main90250-08120i1HZ..HZB50..ARL199301-201501

L=18,OD=8

mainSZ25008008iN04C..XZB40,5#201501

L=24,OD=8

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90032-50049iN04C..XZB40,59;N04C..XZB50..(20S,21S)..WC200704-201501

L=16,OD=8

main90250-08016iN04C..XZB5#200608-200704

L=16,OD=8

main90250-08074i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199301-201501

L=15,OD=8

main90253-15005i14B,3B..BB4#199301-199505

L=7,OD=14.5

main90253-15008i14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1BZFPE..BB50,BZB40,50..STD199505-201501

L=9.0,OD=14.5

mainSZ25008007iN04C..XZB40,5#201501

L=16,OD=8

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i3RZFE..RZB40,50199309-201501

L=14,OD=6

main90250-06068i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199301-201501

L=11,OD=6

main90250-08120i15BFTE..BB5#;1BZFPE..BZB50..EX199301-201501

L=18,OD=8

11452GUIDE, OIL LEVEL GAGE

main11409-75030i3RZF..RZB40,50199309-199511

main11409-75040i3RZF..RZB40,50199511-199902

sub11409-75041

main11409-75041i3RZFE..RZB40,50199902-200708

main11409-75080i2TRFE..TRB40,50200708-201501

main11452-17020i1HZ#..HZB50199301-199907

main11452-17060i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199907-201501

main11452-48040i1BZFPE..BZB40,50200108-201501

main11452-56050i14B..BB42..LHD..HRF..26S199705-200108

YOJO SPEC

main11452-58030i14B..BB42199301-201501

main11452-58060i15BFT..BB50..WOC..5F;15BFT..BB50..CBU..6F;15BFT..BB43,50..RHD..5F199605-201501

main11452-58090i15BFTE..BB5#199907-200608

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90033-01058iN04C..XZB40,59;N04C..XZB50..(20S,21S)..WC200608-201501

main96721-19010i3RZFE..RZB40,50199309-200708

main96721-24010i15BFT..BB50..CHI199301-201501

main96723-19010i2TRFE..TRB40,50200708-201501

mainSZ30110025iN04C..XZB40,5#201501

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-56040i14B..BB42..LHD..HRF..26S199705-200108

YOJO SPEC

main11459-58020i3B..BB40199301-199907

main11459-58030i14B..BB42199301-201501

12101PAN SUB-ASSY, OIL

main12101-17050i1HZT..HZB50199301-199605

main12101-17060i1HZ..HZB50199301-199907

main12101-17220i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199907-201501

main12101-58092i14B..BB42..LHD..HRF..26S199705-200108

YOJO SPEC

main12101-58140i14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC199301-201501

main12101-58180i15BFT,1BZFPE..BB50,BZB40,50..STD199605-201501

main12101-58250i15BFTE..BB5#199907-200608

main12101-75030i3RZFE..RZB40,50199309-200708

main12101-75150i2TRFE..TRB40,50200708-201501

main12101-78130iN04C..XZB5#200608-200703

sub12101-78160

main12101-78160iN04C..XZB40,59;N04C..XZB50..(20S,21S)..WC200703-201501

sub12101-E0320

main12101-E0320iN04C..XZB40,5#201501

12101APLUG(FOR OIL PAN DRAIN)

main90033-41020iN04C..XZB50..WOC..CBU200608-201501

main90341-12012i3RZFE..RZB40,50199907-201501

main90341-12026i14B,15BFT,3B..BB4#,5#199301-199907

sub90341-12012

mainSZ34118014iN04C..XZB40,5#201501

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90034-30046iN04C..XZB5#200608-200802

sub90034-30047

main90034-30047iN04C..XZB50..STD..GEN200802-201501

main90430-12027i1HZ#..HZB50199301-199312

sub90430-12031

main90430-12031i14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1BZFPE..BB50,BZB40,50..STD199301-201501

mainSZ43018009iN04C..XZB40,5#201501

1301

1302

13613CNOZZLE, OIL

main90915-01015i14B..BB42..LHD..HRF199301-201501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-17020i1HZ#..HZB50199301-199907

main15301-17070i1HZ..HZB50..ARL199907-201501

main15301-58011i14B..BB42..LHD..HRF..26S199705-200108

YOJO SPEC

main15301-58030i14B,1BZFPE..BB42,BZB40,50199301-201501

main15301-58070i15BFTE..BB5#199907-200608

main15301-75030i3RZF..RZB40,50199309-199511

main15301-75070i3RZFE..RZB40,50199511-200708

main15301-75110i2TRFE..TRB40,50200708-201501

main15301-78120iN04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S200608-200901

sub15301-78121

main15301-78121iN04C..XZB40,5#200901-200908

sub15301-E0441

main15301-78210iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

sub15301-E0330

main15301-E0330iN04C..XZB40,5#201501

15605VALVE SUB-ASSY, OIL CHECK

main15602-E0010iN04C..XZB40,5#201508

main15605-17030i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199501-201501

main15605-54010i15BFTE..BB5#199301-200608

main15605-56010i14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1BZFPE..BB50,BZB40,50..STD199301-201501

main15703-78030iN04C..XZB50..STD..GEN200608-201107

subS1560-21200

mainS156021200iN04C..XZB40,5#201107-201507

sub15602-E0010

15708NOZZLE SUB-ASSY, OIL, NO.1

main11418-78010iN04C..XZB50..STD..GEN200608-201108

subS110B-E0010

main11418-78070iN04C..XZB50..IV201108-201501

main15708-17010i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199301-201501

main15708-56010i14B..BB42199301-201501

main15708-58020i3B..BB40199301-199505

sub15708-56010

main15708-58040i1BZFPE..BZB50..EX200108-201501

main15708-58050i15BFT..BB50199605-201501

main15708-58060i15BFTE..BB5#199907-200608

main15708-75010i2TRFE..TRB40,50200708-201301

sub15708-75020

main15708-75020i2TRFE..TRB40,50201301-201501

mainS110BE0010iN04C..XZB40,5#201501

1603

9011608194

main90116-08194

9011908505

main90119-08505

9012908007

main90129-08007

9017908088

main90179-08088

9043018012

main90430-18012

9161161020

main91611-61020

9411040800

main94110-40800

9672124010

main96721-24010

38 parts on this diagram · 10 diagrams in section
