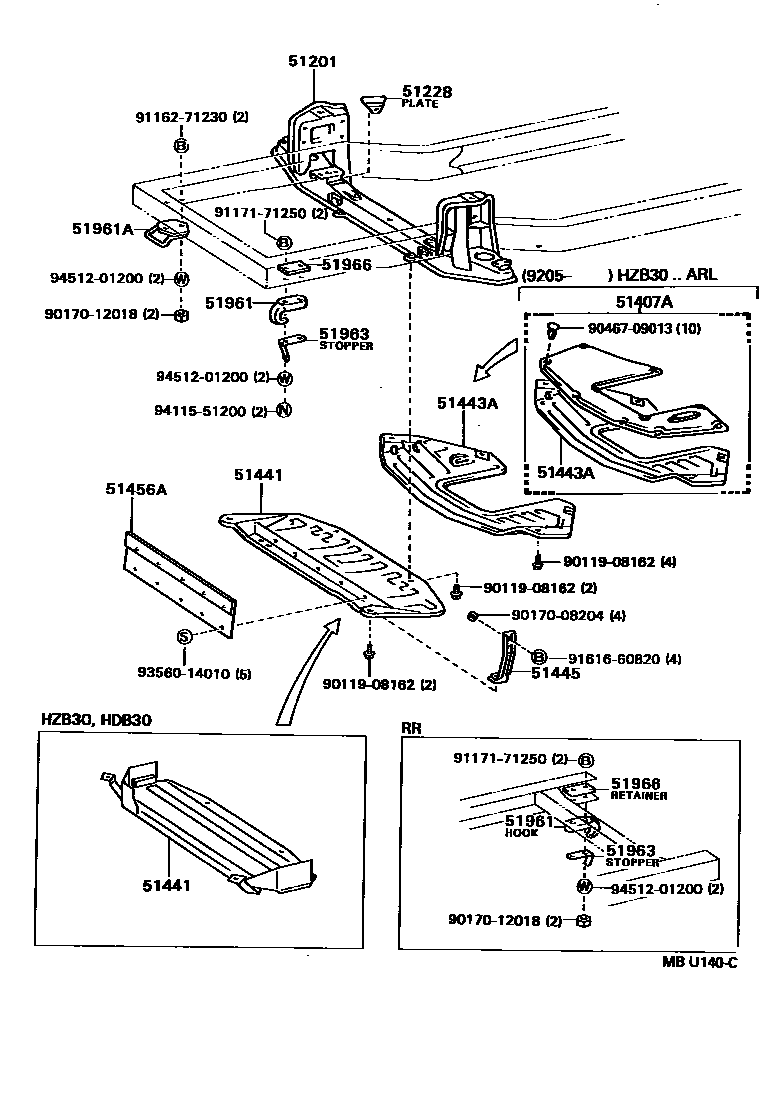

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-36100iBB2#,30,RB20198205-198610

main51201-36101iBB2#,RB20198610-199301

main51201-36141iBB3#,FB30,HB3#,HDB30,HZB30198610-199301

51228PLATE, SUSPENSION MEMBER SET

main51229-36010×2iBB2#,30,RB20198205-199301

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-36080iHZB30..ARL199205-199301

51441COVER, ENGINE UNDER, NO.1

main51441-36150iBB2#,3#,FB30,HB3#,RB20198205-199301

main51441-36260iHDB30,HZB30..RHD..GEN199001-199301

main51441-36270iHDB30,HZB30..LHD199001-199301

51443ACOVER, ENGINE UNDER, REAR

main51406-36070iBB22198510-198808

main51443-36010iBB20,21,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

51445BRACKET, ENGINE UNDER COVER

main51445-36010×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

51456ASEAL, ENGINE UNDER COVER, REAR

main51456-36040iRB20198205-199301

51961HOOK, NO.1

main51961-60010×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

51961AHOOK, NO.3

main51963-36020iBB2#,30,RB20198205-198601

main51963-36050iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198601-199301

51963STOPPER, HOOK WIRE

main51963-35010×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

sub51963-35080

51966RETAINER, REAR HOOK

main51966-60010×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

9011908162

main90119-08162

9017008204

main90170-08204

9017012018

main90170-12018

9046709013

main90467-09013

9116271230

main91162-71230

9117171250

main91171-71250

9161660820

main91616-60820

9356014010

main93560-14010

9411551200

main94115-51200

9451201200

main94512-01200

21 parts on this diagram · 1 diagram in section
