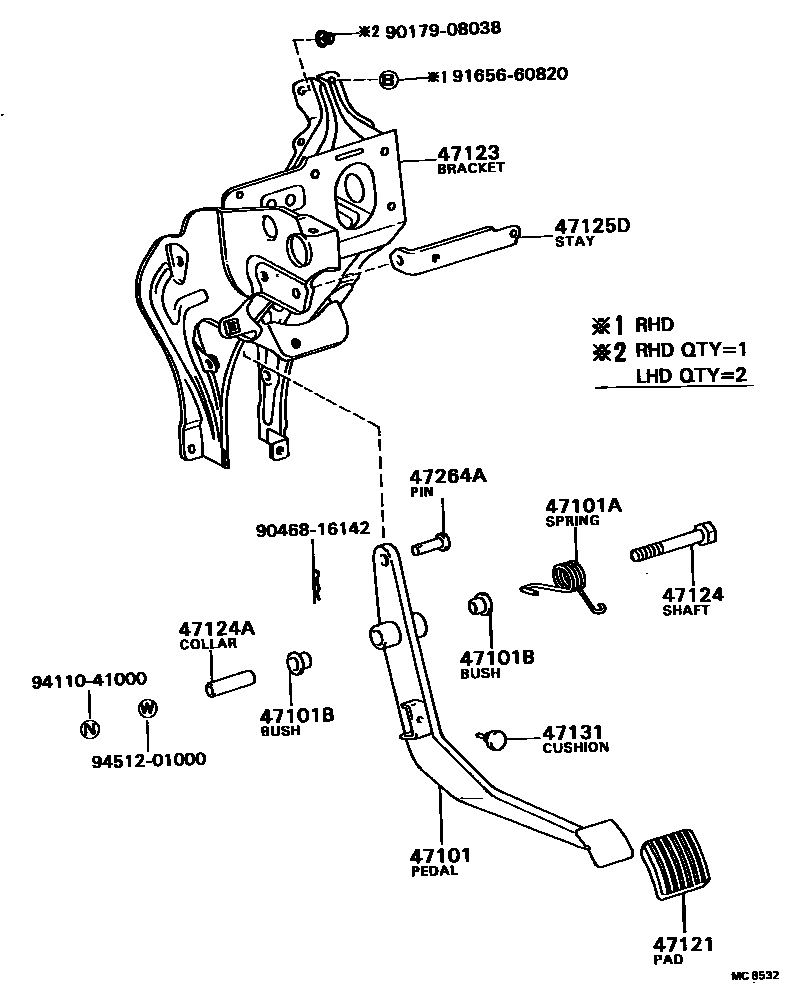

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-36080iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35322iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

47121PAD, BRAKE PEDAL

main31321-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

47123BRACKET, BRAKE PEDAL

main55106-90B00iBB20,RB20..RHD198205-198211

sub55106-90B01

main55106-90B01iBB20,RB20..LHD198205-198510

main55106-90B02iBB20,22,23,3#,HZB30,RB20198510-199301

main55106-90B04iFB30,HB31,HDB30198610-199301

47124SHAFT, BRAKE PEDAL

main91121-51070iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

47125DSTAY, BRAKE PEDAL BRACKET

main55196-90B00iHB30..SRF..WC198205-199301

main55196-90B01iBB20,22,23,RB20198408-199301

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199005

main90541-06036iBB2#,32,FB30,HDB30,HZB30,RB20199005-199301

47264APIN(FOR PUSH ROD)

main90240-10085iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

9017908038

main90179-08038

9046816142

main90468-16142

9165660820

main91656-60820

9411041000

main94110-41000

9451201000

main94512-01000

15 parts on this diagram · 1 diagram in section
