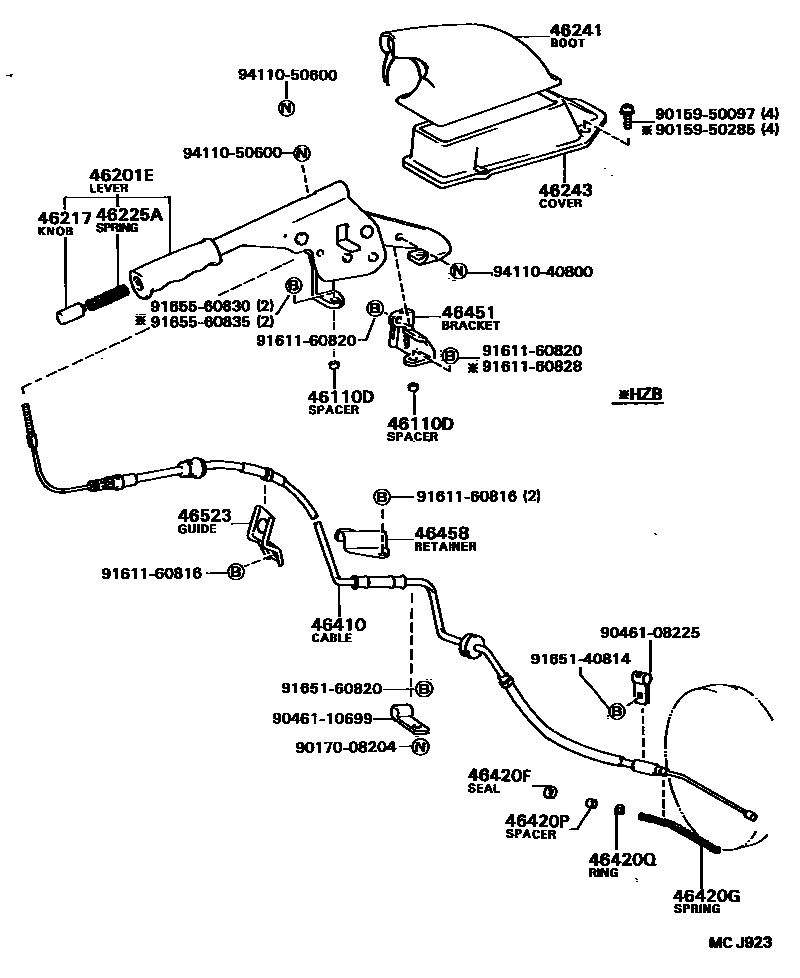

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0005 1

46110DSPACER(FOR PARKING BRAKE HANDLE)

main90560-08002iBB2#,3#,FB30,HB3#,RB20198205-198904

main90560-08070iBB2#,32,FB30,HB3#,HDB30,RB20198904-199301

main90560-08075iHZB30199001-199301

46201ELEVER SUB-ASSY, PARKING BRAKE

main46210-36010-02iBB2#,FB30,HB30,RB20198205-198808

DARK WINE,DARK WINE

sub46210-36010

sub46210-36030

main46210-36010-02iBB30..LHD198610-198808

DARK WINE

sub46210-36010

sub46210-36030

main46210-36010-06iBB21,FB30,HB30,RB20198808-198810

SABLE,SABLE

sub46210-36010

sub46210-36030

main46210-36020-02iBB30,HB31..RHD198610-198808

DARK WINE,DARK WINE

sub46210-36020

sub46210-36022

main46210-36020-06iBB32,HB31198808-198810

SABLE,SABLE

sub46210-36020

sub46210-36022

main46210-36021-06iBB32,HB31,HDB30198810-199109

SABLE,SABLE

sub46210-36022

main46210-36022-D0iBB32,HDB30199109-199301

DARK WINE,DARK WINE

sub46210-36022

main46210-36022-E0iBB32,HDB30199109-199301

SABLE,SABLE

sub46210-36022

main46210-36030-02iBB21,FB30,HB30,HZB30,RB20198810-199301

DARK WINE,DARK WINE

sub46210-36030

main46210-36030-06iBB21,FB30,HB30,HZB30,RB20198810-199301

SABLE,SABLE

sub46210-36030

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-02iBB2#,30,FB30,HB3#,RB20198205-198808

DARK WINE,RED/MAROON

sub46217-10020

sub46217-20020

main46217-10020-10iBB2#,32,FB30,HB3#,RB20198808-199301

SABLE,SABLE

sub46217-10020

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

46241BOOT, PARKING BRAKE LEVER

main46241-36010-02iBB2#,30,FB30,HB3#,RB20198205-198808

DARK WINE,DARK WINE

sub46241-36010

main46241-36010-06iBB2#,32,FB30,HB3#,HDB30,HZB30,RB20198808-199301

SABLE,SABLE

sub46241-36010

46243COVER, PARKING BRAKE LEVER

main46243-36010-02iBB2#,30,FB30,HB3#,RB20198205-198808

DARK WINE,DARK WINE

sub46243-36010

main46243-36010-06iBB2#,32,FB30,HB3#,HDB30,HZB30,RB20198808-199301

SABLE,SABLE

sub46243-36010

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-36240iRB20..4F198205-198510

main46410-36250iRB20..5F198205-198510

sub46410-36251

main46410-36251iRB20198510-199301

main46410-36260iBB20..RHD198205-198510

sub46410-36261

main46410-36261iBB2#..RHD198510-198808

main46410-36262iBB2#..RHD198808-199301

main46410-36270iBB20..LHD198205-198510

sub46410-36271

main46410-36271iBB20,21..LHD198510-198808

main46410-36272iBB21..LHD198808-199301

main46410-36281iHB30..ARL198610-199001

main46410-36282iHZB30..ARL199001-199301

main46410-36290iBB30..LHD198306-198510

sub46410-36291

main46410-36291iBB30..LHD198510-198808

main46410-36292iBB32..5F198808-199301

main46410-36300iBB30..RHD198408-198510

sub46410-36301

main46410-36301iBB30..RHD198510-199301

main46410-36320iFB30,HB30,HDB30,HZB30..LHD..5F198610-199301

main46410-36330iHB3#..RHD..GEN198610-199001

main46410-36331iHDB30,HZB30..RHD..GEN199001-199301

main46410-36340iHZB30..ME199001-199301

main46410-36400iBB32..4FC199001-199301

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iBB3#,FB30,HB3#,HDB30,HZB30..GEN,ME198306-199301

main90501-14021iBB2#,RB20198205-199301

46420PSPACER, PARKING BRAKE

main90560-08002iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

46451BRACKET, CABLE SUPPORT

main46451-36030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

46458RETAINER, CABLE

main46458-36010iBB2#,30,HB3#,HDB30,HZB30,RB20..RHD198205-199301

main46458-36020iBB20,21,3#,FB30,HB30,HDB30,HZB30,RB20..LHD198205-199301

46523GUIDE, PARKING BRAKE CABLE

main46523-36010iBB2#,30,HB3#,HDB30,HZB30,RB20..RHD198205-199301

main46526-36020iBB20,21,3#,FB30,HB30,HDB30,HZB30,RB20..LHD198205-199301

9015950097

main90159-50097

9015950285

main90159-50285

9017008204

main90170-08204

9046108225

main90461-08225

9046110699

main90461-10699

9161160816

main91611-60816

9161160820

main91611-60820

9161160828

main91611-60828

9165140814

main91651-40814

9165160820

main91651-60820

9165560830

main91655-60830

9165560835

main91655-60835

9411040800

main94110-40800

9411050600

main94110-50600

28 parts on this diagram · 4 diagrams in section
