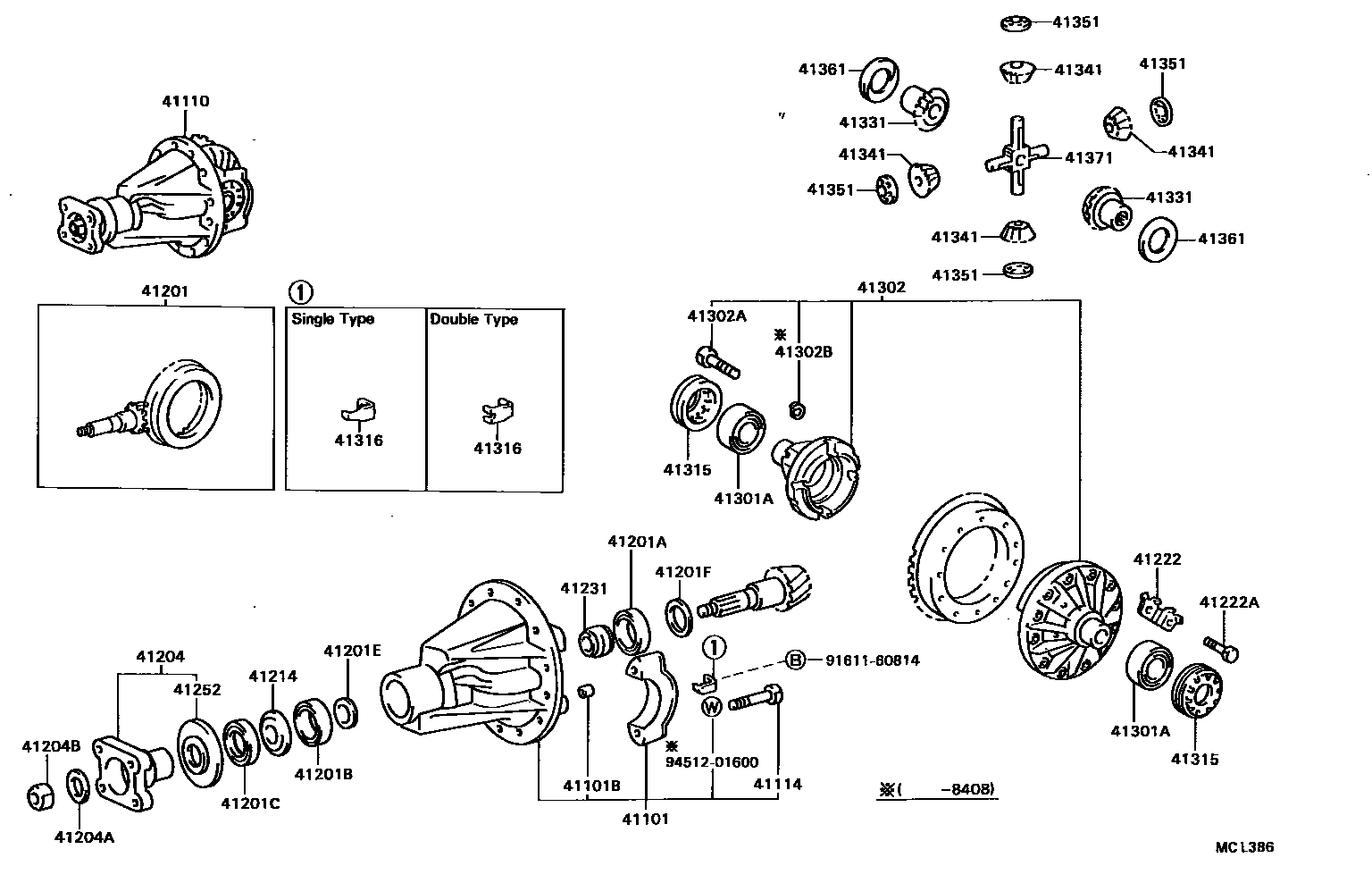

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-36030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

sub41101-37010

41101BPIN, RING (FOR REAR DIFFERENTIAL CARRIER)

main90253-21001iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-36240iBB20..GEN,IRQ;BB20..20S..WC198205-198408

*AXC=L264,*FGR=39:7

main41110-36250iBB20..WC198205-198408

*AXC=L194,*FGR=35:6

main41110-36260iBB30,RB20198205-198408

*AXC=L204,*FGR=37:6

main41110-36280iBB20..WOC198205-198408

*AXC=L154,*FGR=41:8

main41110-36360iBB20..16S198304-198408

*AXC=L264,*FGR=39:7

main41110-36400iBB21..RHD..WOC;BB21..LHD..(25S,26S)..WOC198408-198702

*FGR=41:8=5.125,*AXC=L154,*FGR=41:8

sub41110-36550

main41110-36410iFB30..WC..GEN198610-198702

*FGR=43:8=5.375,*AXC=L404,*FGR=43:8

sub41110-36460

main41110-36420iHB30..WC..ARL198408-198702

*FGR=39:7=5.571,*AXC=L264,*FGR=39:7

sub41110-36520

main41110-36430iFB30..WC..GEN198408-198702

*FGR=35:6=5.833,*AXC=L194,*FGR=35:6

sub41110-36530

main41110-36440iBB30..LHD198408-198702

*FGR=37:6=6.617,*AXC=L204,*FGR=37:6

sub41110-36540

main41110-36450iBB30..RHD198408-198702

*FGR=41:6=6.833,*AXC=L234,*FGR=41:6

sub41110-36560

main41110-36460iFB30..WC..GEN198610-199301

*FGR=43:8=5.375,*AXC=L404,*FGR=43:8

sub41110-37110

main41110-36520iBB21..DLX..WC..GEN198408-199301

*FGR=39:7=5.571,*AXC=L264,*FGR=39:7

sub41110-37120

main41110-36520iBB21..16S198610-199301

*FGR=39:7=5.571,*AXC=L264,*FGR=39.7

sub41110-37120

main41110-36530iRB20..ARL198702-199301

*FGR=35:6=5.833,*AXC=L194,*FGR=35:6

sub41110-37190

main41110-36540iBB3#..LHD198610-199301

*FGR=37:6=6.167,*AXC=L204,*FGR=37:6

sub41110-36541

main41110-36550iFB30..WOC..GEN198610-199301

*FGR=41:8=5.125,*AXC=L154,*FGR=41:8

sub41110-37040

main41110-36560iBB30..RHD198702-199301

*FGR=41:6=6.833,*AXC=L234,*FGR=41:6

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-16005iBB20,30,RB20198205-198408

sub90105-16022

main90105-16022iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29315iFB30..WOC..GEN198205-198702

*FGR=41:8,*AXC=L154,*FGR=41:8

sub41201-39825

main41201-39315iBB21..ME198205-198702

*FGR=39:7,*AXC=L264,*FGR=39:7

sub41201-39605

main41201-39325iBB20..WC198205-198408

*AXC=L194,*FGR=35:6

sub41201-39326

main41201-39326iFB30..WC..GEN198408-198702

*FGR=35:6,*AXC=L194,*FGR=35:6

sub41201-39615

main41201-39335iRB20..GEN198205-198702

*FGR=37:6,*AXC=L204,*FGR=37:6

sub41201-39785

main41201-39345iBB30..RHD198408-198702

*FGR=41:6,*AXC=L234,*FGR=41:6

sub41201-39835

main41201-39455iHB30..WOC..GEN198610-198702

*FGR=35:6,*AXC=L404,*FGR=43:8

sub41201-39525

main41201-39525iFB30..WC..GEN198610-199301

*FGR=43:8=5.375,*AXC=L404,*FGR=43:8

sub41201-39526

sub41204-36090

main41201-39605iBB21..20S..WC198304-199301

*FGR=39:7=5.571,*AXC=L264,*FGR=39:7

sub41201-80630

main41201-39615iFB30..WC..GEN198702-199301

*FGR=35:6=5.833,*AXC=L194,*FGR=35:6

sub41201-80640

main41201-39785iBB30..LHD198610-199301

*FGR=37:6=6.167,*AXC=L204,*FGR=37:6

sub41201-39786

sub41204-36090

main41201-39825iFB30..WOC..GEN198610-199301

*FGR=41:8=5.125,*AXC=L154,*FGR=41:8

sub41201-39826

main41201-39835iBB30..RHD198702-199301

*FGR=41:6=6.833,*AXC=L234,*FGR=41:6

sub41201-39836

sub41204-36090

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40001iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

sub90366-40100

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-35023iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-48135iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

sub90311-48019

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35019iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.80,T=1.80

main90564-35020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.82,T=1.82

main90564-35021iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.84,T=1.84

main90564-35022iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.86,T=1.86

main90564-35023iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.88,T=1.88

main90564-35024iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.90,T=1.90

main90564-35025iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=2.00,T=2.00

main90564-35026iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=2.10,T=2.10

main90564-35027iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=2.20,T=2.20

main90564-35028iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=2.30,T=2.30

main90564-35029iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=2.40,T=2.40

main90564-35030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=2.50,T=2.50

main90564-35031iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=2.60,T=2.60

main90564-35032iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=2.70,T=2.70

main90564-35033iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=2.80,T=2.80

main90564-35034iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=2.90,T=2.90

main90564-35035iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=3.00,T=3.00

main90564-35036iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

T=1.81,T=1.81

main90564-35037iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

T=1.83,T=1.83

main90564-35038iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

T=1.85,T=1.85

main90564-35039iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

T=1.87,T=1.87

main90564-35040iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

T=1.89,T=1.89

41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)

main90201-40551iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.05,T=1.05

sub90564-40004

main90201-40552iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.10,T=1.10

sub90564-40007

main90201-40553iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.15,T=1.15

sub90564-40009

main90201-40554iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.20,T=1.20

sub90564-40011

main90201-40555iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.25,T=1.25

sub90564-40013

main90201-40556iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.30,T=1.30

sub90564-40015

main90201-40557iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.35,T=1.35

sub90564-40017

main90201-40558iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.40,T=1.40

sub90564-40019

main90201-40559iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.45,T=1.45

sub90564-40021

main90201-40560iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.50,T=1.50

sub90564-40023

main90201-40561iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.55,T=1.55

sub90564-40025

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-36032iBB20,30,RB20198205-198408

main41204-36050iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-23002iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

41204BNUT (FOR REAR DRIVE PINION)

main90179-22003iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

OD=29

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-36010iBB20,30,RB20198205-198408

sub41214-36030

main41214-36030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

sub41214-37010

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-36020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-14315iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-36040iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

sub41252-37020

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-52043iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-36030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90101-12020iBB20,30,RB20198205-198408

sub90105-12087

main90105-12087iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

41302BWASHER, SPRING(FOR REAR DIFFERENTIAL CASE)

main90201-12007iBB20,30,RB20198205-198408

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-36011iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-36011iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

SINGLE TYPE

main41317-36011iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-36020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

41341PINION, REAR DIFFERENTIAL

main41341-55012iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

sub41341-55013

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-35011iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-60010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.60,T=1.60

sub41361-60011

main41361-60020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.75,T=1.75

sub41361-60021

main41361-60030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=1.90,T=1.90

sub41361-60031

main41361-60040iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

T=2.05,T=2.05

sub41361-60041

41371SPIDER, REAR DIFFERENTIAL

main41371-36011iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

9161160814

main91611-60814

9451201600

main94512-01600
