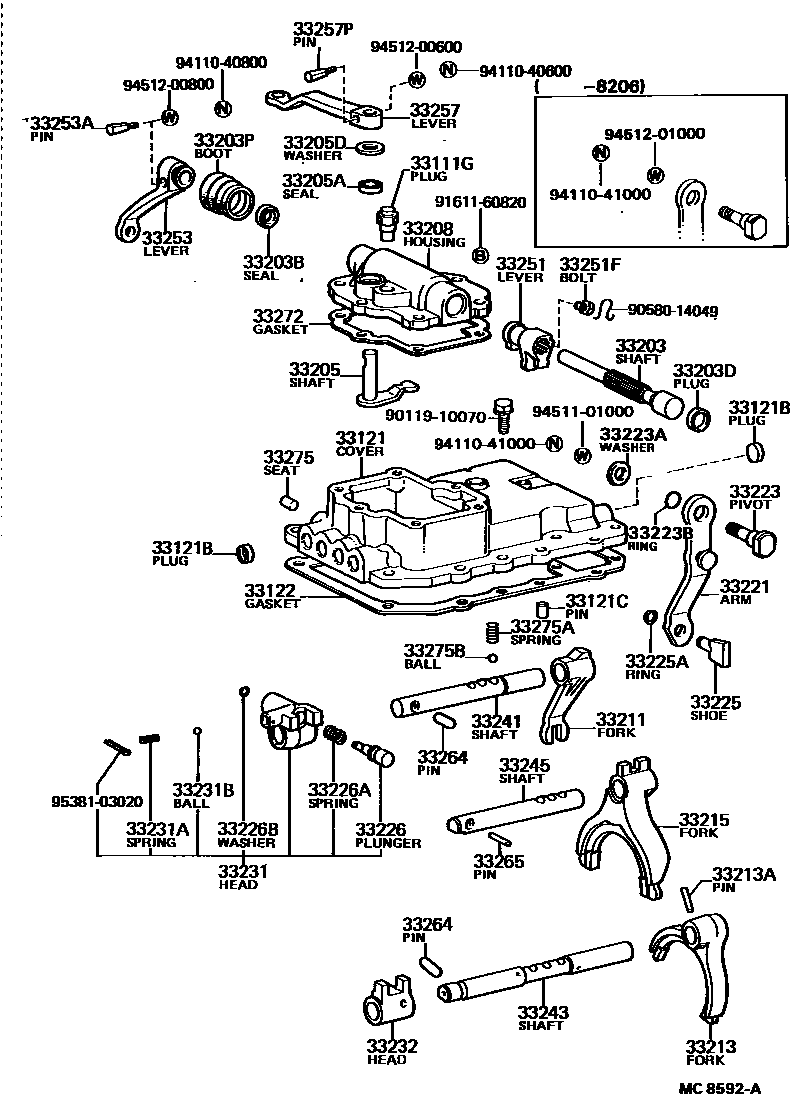

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03075iBB20,RB20198205-198211

main90930-03085iBB20,30,RB20198211-198401

main90930-03090iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198401-199301

33121COVER, MANUAL TRANSMISSION CASE

main33121-36030iRB20..4F198205-198510

main33121-36080iBB20,30,RB20..5F198205-198510

33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)

main90331-16050iBB20,30,RB20198205-198510

sub96411-11600

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214iBB20,30,RB20198205-198510

L=14,OD=10

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-36020iBB20,30,RB20..5F198205-198510

main33122-36030iRB20..4F198205-198510

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-36040iBB20,30,RB20198205-198510

main33261-36060iBB20,21,22,30,FB30,HB3#,RB20198510-199301

main33261-36070iBB23,32,HDB30,HZB30..5F198808-199301

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-22009iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

main90312-17001iBB20,30,RB20198205-198510

33203DPLUG, TIGHT(FOR SHIFT LEVER SHAFT)

main90331-20044iBB20,30,RB20198205-198510

33203PBOOT, DUST(FOR SHIFT LEVER SHAFT)

main33531-36020iBB20,30,RB20198205-198510

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-36050iBB20,30,RB20198205-198510

main33262-36050iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198205-199301

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94612-11300iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198205-199301

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33271-36060iBB20..RHD..GEN198205-198510

W/EXHAUST BRAKE

main33271-36070iBB20,RB20198205-198510

sub33271-36060

sub90341-16013

33211FORK, REVERSE SHIFT

main33211-36020iBB20,30,RB20198205-198510

33213FORK, 1ST & 2ND SHIFT

main33212-36011iBB20,30,RB20198205-198510

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05016iBB20,30,RB20198205-198510

33215FORK, 3RD & 4TH SHIFT

main33213-36020iBB20,30,RB20198205-198510

33221ARM, REVERSE SHIFT

main33201-36040iBB20,30,RB20198205-198510

33223PIVOT, SHIFT ARM

main33223-36010iBB20,RB20198205-198206

sub33223-36020

main33223-36020iBB20,30,RB20198206-198510

33223AWASHER(FOR SHIFT ARM PIVOT)

main90201-10045iBB20,30,RB20198206-198407

sub90201-10092

main90201-10092iBB20,30,RB20198407-198510

33223BRING, O(FOR SHIFT ARM PIVOT)

main96711-19010iBB20,30,RB20198206-198510

33225SHOE, SHIFT ARM

main33225-36030iBB20,30,RB20198205-198510

33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)

main90520-08098iBB20,30,RB20198205-198510

33226PLUNGER, REVERSE SHIFT RETURN

main33226-36020iBB20,30,RB20198205-198510

33226ASPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER)

main90501-16029iBB20,30,RB20198205-198510

33226BWASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER)

main90213-06001iBB20,30,RB20198205-198510

33231HEAD, REVERSE SHIFT

main33202-36020iRB20..4F198205-198510

main33202-36030iBB20,30,RB20..5F198205-198510

33231ASPRING, REVERSE SHIFT RESTRICT

main90501-12019iBB20,30,RB20198205-198510

33231BBALL, REVERSE SHIFT RESTRICT

main90360-06004iBB20,30,RB20198205-198510

33232HEAD, 1ST & 2ND SHIFT

main33232-36040iBB20,30,RB20198205-198510

33241SHAFT, REVERSE SHIFT FORK

main33241-36021iBB20,30,RB20198205-198510

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-36040iBB20,30,RB20198205-198510

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-36020iBB20,30,RB20198205-198510

33251LEVER, SHIFT & SELECT

main33251-36030iBB20..RHD..GEN198205-198510

W/EXHAUST BRAKE

main33251-36050iBB20,RB20198205-198510

sub33251-36030

main33251-36090iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main33218-35010iBB20,30,RB20198205-198510

main90254-05016iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

33253LEVER, SHIFT OUTER, NO.1

main33253-36060iBB20,30,RB20198205-198510

main33253-36120iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33282-36030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

main33282-57010iBB20,30,RB20198205-198510

33257LEVER, SELECT OUTER

main33257-36061iBB20,30,RB20198205-198510

main33257-36110iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

main33282-36010iBB20,30,RB20198205-198510

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-10011iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

L=13.4,OD=9.53

main90361-10008iBB20,30,RB20198205-198510

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05034iBB20,RB20198205-198207

main90250-10014iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

L=37.4,OD=9.53

main90361-05001iBB20,30,RB20198207-198510

L=13

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-36020iBB20,30,RB20198205-198510

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90250-10215iBB20,30,RB20198205-198510

L=9,OD=9

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14237iBB20,30,RB20198205-198510

L=16.1

main90501-16099iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

sub90501-16145

33275BBALL, SHAFT DETENT

main90360-10003iBB20,30,RB20198205-199301

9011910070

main90119-10070

9058014049

main90580-14049

9161160820

main91611-60820

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451101000

main94511-01000

9451200600

main94512-00600

9451200800

main94512-00800

9451201000

main94512-01000

9538103020

main95381-03020

56 parts on this diagram · 3 diagrams in section
