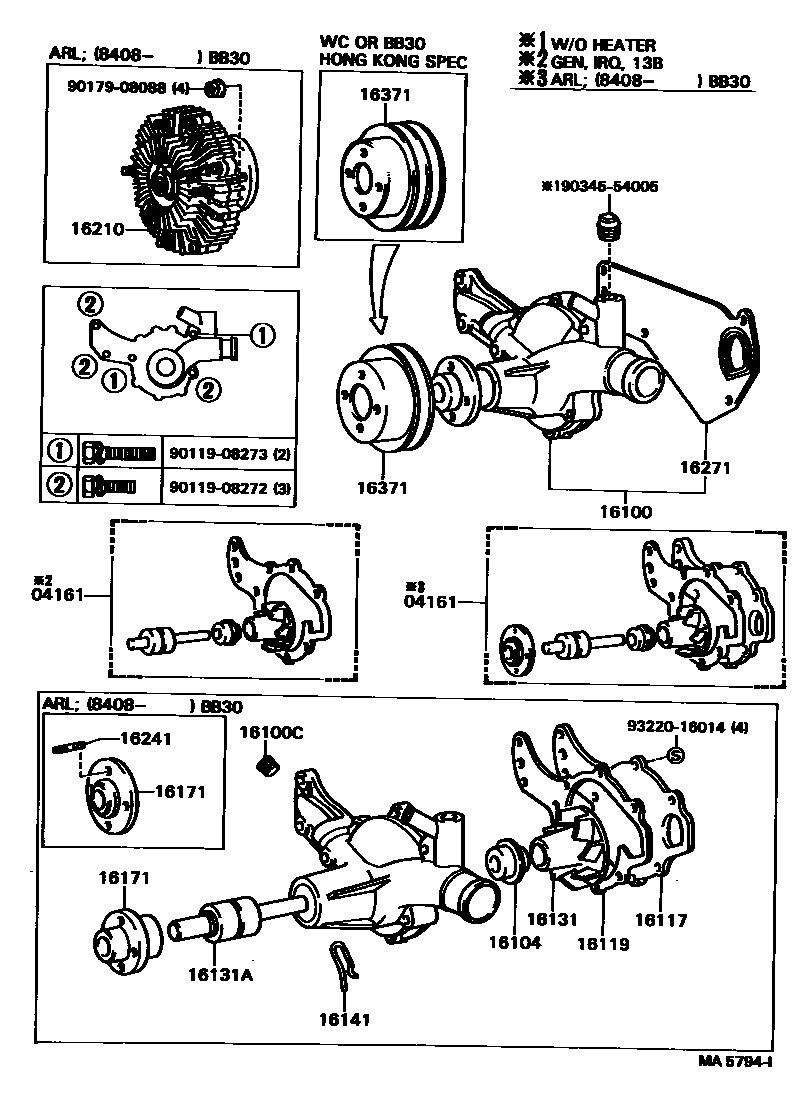

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

04161PUMP KIT, WATER

main04161-35020i22R..RB20..WOC198205-198408

sub04161-35021

main04161-56040i3B..BB20,21..(22S,25S,26S)..WOC198205-198808

sub04161-56041

main04161-56070i3B..BB20..RHD..STD..HRF198405-198610

HONG KONG SPEC

sub04161-56071

main04161-56080i3B..BB20,21..ARL198205-198808

sub04161-56081

main04161-68010i12HT,2H..HB3#198610-199001

16100PUMP ASSY, ENGINE WATER

main16100-19235i1H#..HDB30,HZB30199001-199301

main16100-39315i22R..RB20..WOC198205-198212

sub16100-39316

main16100-39335i22R..RB20..WC198205-198212

W/PS

sub16100-39336

main16100-39355i22R..RB20198408-198812

main16100-39356i22R..RB20198812-199301

main16100-59075i3B..BB20,21..(22S,25S,26S)..WOC198205-198704

main16100-59076i3B..BB21..WOC..(GEN,ME)198704-198808

main16100-59085i3B..BB20..15S;13B,3B..BB2#..WC..(GEN,IRQ,ME)198408-198808

main16100-59105i3B..BB30198408-198808

main16100-59175i3B..BB21..WOC..(GEN,ME)198808-199301

sub16100-59265

main16100-59185i3B..BB21..ARL198808-199301

sub16100-59186

main16100-59195i14B,3B..BB2#..WC..(GEN,ME)198808-199301

sub16100-59196

main16100-69035i12HT,2H..HB3#198610-199301

sub16100-69036

main16100-69175i3F..FB30198610-199001

main16100-69176i3F..FB30199001-199301

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010i13B,3B..BB2#,30198205-198808

16104SEAL SET, WATER PUMP

main16104-15020i12HT,2H..HB3#198610-199001

main16104-41111i22R..RB20198205-198408

main16104-52011i3B..BB20..RHD..STD..HRF198405-198507

HONG KONG SPEC

sub16104-52012

main16104-52013i3B..BB20..RHD..STD..HRF198507-198610

HONG KONG SPEC

16117PLATE, WATER PUMP

main16117-56040i13B,3B..BB2#,30198205-198808

main16117-58010i14B,3B..BB2#,32198808-199301

main16117-61110i3F..FB30198610-199301

16119GASKET, WATER PUMP BODY

main16119-56040i13B,3B..BB2#,30198205-198808

sub16119-56041

16131ROTOR, WATER PUMP

main16131-35010i22R..RB20198205-198408

main16131-56030i3B..BB20,21..(22S,25S,26S)..WOC198205-198808

main16131-56040i3B..BB20..RHD..STD..HRF198405-198610

HONG KONG SPEC

main16131-68010i12HT,2H..HB3#198610-199001

16131ABEARING, WATER PUMP

main90369-30011i22R..RB20..WOC198205-198212

sub90029-36816

main90369-30028i3B..BB20,21..(22S,25S,26S)..WOC198205-198704

main90369-30060i3B..BB21..WOC..(GEN,ME)198704-198804

main90369-30061i3B..BB21..WOC..(GEN,ME)198804-198808

main90369-35007i22R..RB20..WC198205-198212

W/PS

sub90029-36839

main90369-35016i12HT,2H..HB3#198610-199001

sub90029-36842

main90369-38001i3B..BB20..ARL198205-198311

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010i3B..BB20,21..(22S,25S,26S)..WOC198205-198808

main16141-68010i12HT,2H..HB3#198610-199001

main16141-76010i3B..BB20..RHD..STD..HRF198405-198610

HONG KONG SPEC

16171SEAT, WATER PUMP PULLEY

main16171-13020i22R..RB20..WC198205-198212

W/PS

main16171-38022i22R..RB20..WOC198205-198212

main16171-41170i12HT,2H..HB3#198610-199001

main16171-56010i3B..BB20,21..(22S,25S,26S)..WOC198205-198808

main16171-57011i3B..BB20..RHD..STD..HRF198405-198610

HONG KONG SPEC

main16171-61071i3F..FB30198408-198808

16210COUPLING ASSY, FLUID

main16210-17030i1H#..HDB30,HZB30199001-199301

main16210-35010i22R..RB20..WC198205-198210

W/PS

main16210-35011i22R..RB20..WC198210-198212

W/PS

main16210-38050i22R..RB20..WOC198205-198212

main16210-58011i3B..BB20..ARL198205-198307

main16210-58012i3B..BB20,21..ARL198307-198808

main16210-58040i3B..BB21..ARL198808-199005

main16210-58041i3B..BB21..ARL199005-199301

main16210-61130i3F..FB30198610-199301

main16210-68040i12HT,2H..HB3#198610-199001

sub16210-17040

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-33030×4i22R..RB20..WOC198205-198212

main16198-41050i3F..FB30198610-199301

main16198-41170×4i3B..BB30198408-198808

main16241-28020×4i22R..RB20..WC198205-198212

W/PS

main90116-08112×4i12HT,2H..HB3#198610-199001

16271GASKET, WATER PUMP

main16271-17010i1H#..HDB30,HZB30199001-199301

main16271-56020i13B,3B..BB2#,30198205-198808

main16271-56030i14B,3B..BB2#,32198808-199301

sub16271-56031

main16271-61010i3F..FB30198610-199001

main16271-61020i3F..FB30199001-199301

main16271-68010i12HT,2H..HB3#198610-199001

sub16271-68020

16371PULLEY, FAN

main16173-35010i22R..RB20..WC198205-198212

W/PS

main16173-35030i22R..RB20198408-199301

main16173-38011i22R..RB20..WOC198205-198212

main16173-61210i3F..FB30198610-199301

main16371-17010i1H#..HDB30,HZB30199001-199301

main16371-56020i3B..BB20..WOC..GEN198205-198211

main16371-56021i3B..BB20,21..(22S,25S,26S)..WOC198211-198808

main16371-56040i3B..BB20,21..WOC..ARL198205-198808

main16371-56060i3B..BB21..WOC..(GEN,ME)198808-199301

main16371-56070i14B..BB32..4FC199001-199301

main16371-58010i3B..BB20..15S;13B,3B..BB2#..WC..(GEN,IRQ,ME)198408-198808

main16371-58020i3B..BB30198408-198808

main16371-58030i3B..BB21..WOC..ARL198808-199301

main16371-58040i3B..BB21..WC..ARL198808-199301

sub16371-58041

main16371-58050i14B,3B..BB2#..WC..(GEN,ME)198808-199301

main16371-68010i2H..HB30..WOC198610-199001

main16371-68030i12HT..HB31198610-199001

9011908272

main90119-08272

9011908273

main90119-08273

9017908088

main90179-08088

9034554005

main90345-54005

9322016014

main93220-16014

19 parts on this diagram · 7 diagrams in section
