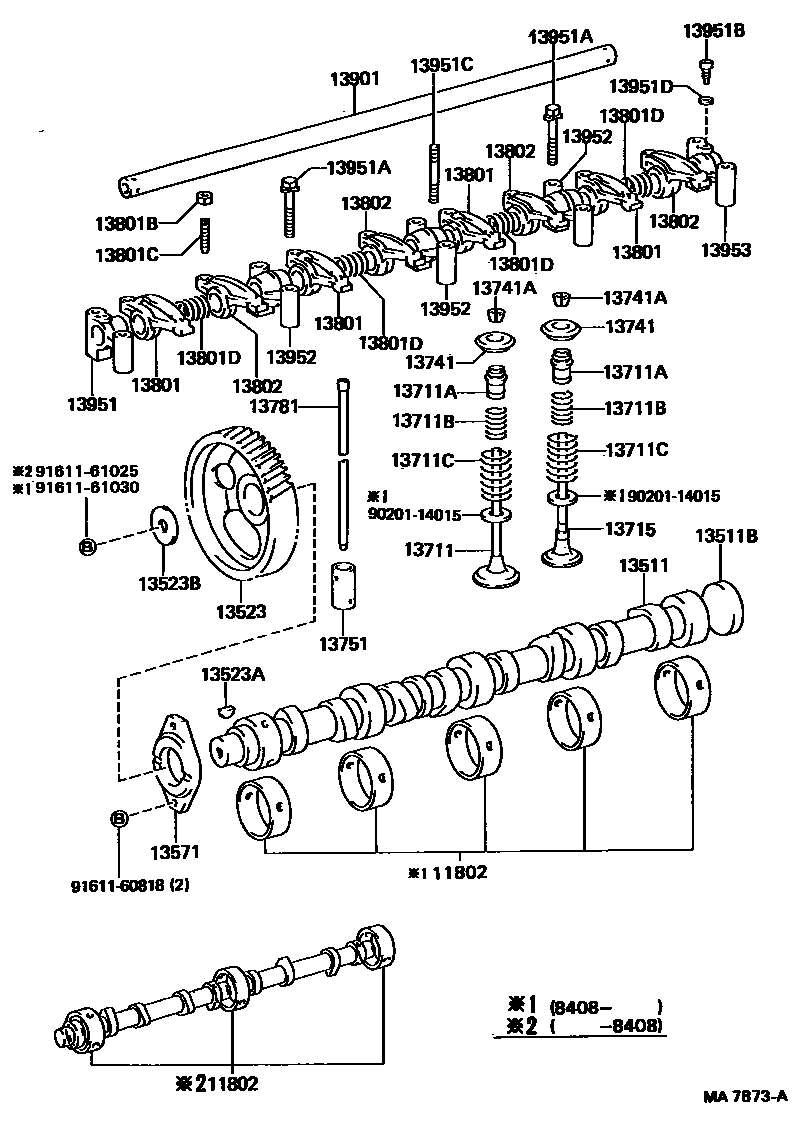

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
STD
STD
STD
STD
STD
STD,STD
STD,STD
U/S 0.125,U/S 0.125
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.250
U/S 0.50,U/S 0.50
13511BPLUG, EXPANSION(FOR CAMSHAFT)
OD=51
OD=55
OD=56
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523BWASHER, PLATE(FOR TIMING GEAR)
OD=40,ID=10.5
13711BSPRING, COMPRESSION(FOR INNER)
WD=2.3,CW=7.2,INNER
13711CSPRING, COMPRESSION(FOR OUTER)
WD=4.7,CW=6.31
WD=4.7,CW=6.0,OUTER
13741RETAINER, VALVE SPRING
INTAKE
EXHAUST
13741ALOCK, VALVE SPRING RETAINER
EXHAUST
INTAKE
13781ROD, VALVE PUSH
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13951ABOLT(FOR ROCKER SUPPORT SET)
*8-1.25PX53-30
*8-1.25PX63-30
*10-1.25PX74-20
*10-1.25PX72-20
*8-1.25PX55-30
*8-1.25PX60-30
*8-1.25PX65-30
13951CBOLT, STUD(FOR ROCKER SUPPORT)
L=58,S=9&32
L=84,S=9&29
L=38,S=10&16
13951DWASHER, SEAL(FOR HEAD COVER SET)
9020114015
main90201-14015
9161160818
main91611-60818
9161161025
main91611-61025
9161161030
main91611-61030
33 parts on this diagram · 6 diagrams in section
