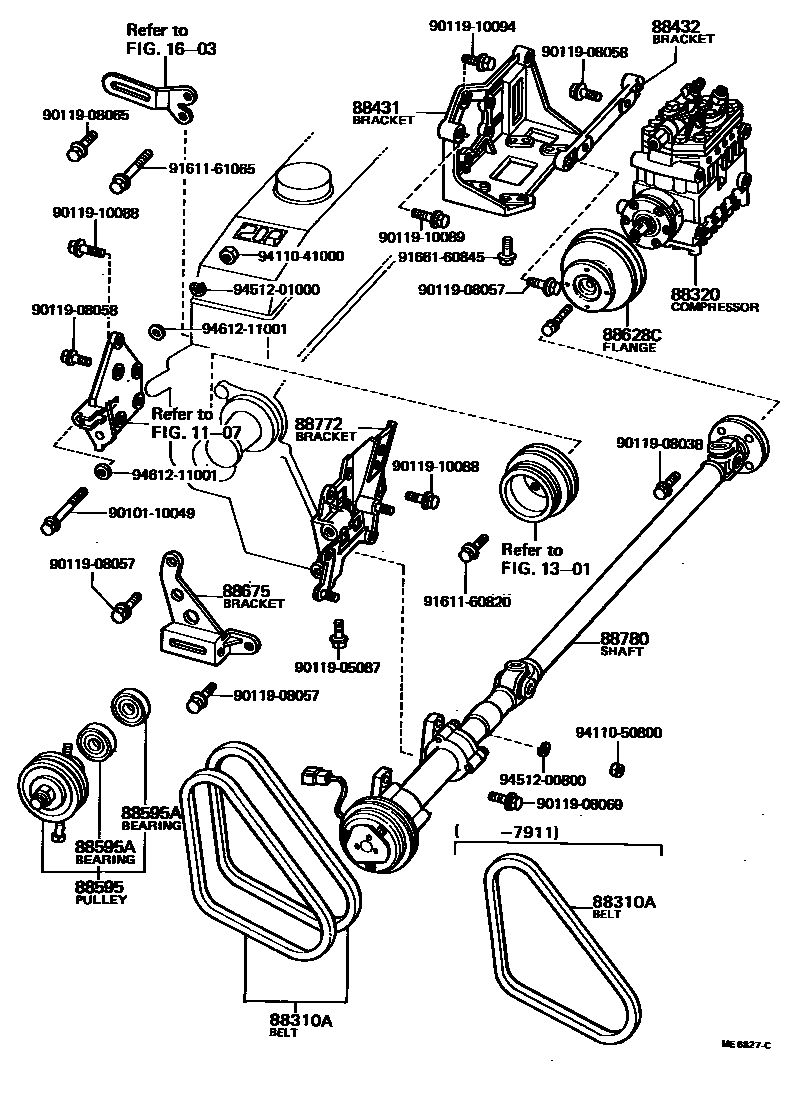

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1107MOUNTING

→ Go to FIG 11-07

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

88320COMPRESSOR ASSY, COOLER

main88320-36031iBB10,RB11..BC197708-197709

main88320-36032iBB10,RB11,13..BC197709-198102

main88320-36033iBB10,RB13..BC198102-198110

main88320-36034iBB10,RB13..BC198110-198204

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-36070iBB10,RB11,13..BC197708-198204

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88434-36070iBB10..BC197708-198204

main88434-36080iRB11,13..BC197708-198204

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-20050iBB10,RB11..BC197708-197911

main88440-36080iBB10,RB1#..BC197911-198204

88595ABEARING (FOR COOLER IDLE PULLEY)

main90099-10089iBB10,RB11..BC197808-197911

main90099-10129iBB10,RB1#..BC197911-198204

88628CFLANGE, COUPLING

main88628-36020iBB10,RB11..BC197708-197709

main88628-36021iBB10,RB11,13..BC197709-198204

88675BRACKET, IDLER PULLEY (FOR COOLER)

main88444-36060iBB10..BC197708-197911

main88444-36061iBB10..BC197911-198008

main88444-36062iBB10..BC198008-198204

main88444-36070iRB11..BC197708-197911

main88444-36071iRB1#..BC197911-198202

main88444-36072iRB13..BC198202-198204

88772BRACKET, SHAFT MOUNTING

main88772-36030iBB10..BC197708-198008

main88772-36031iBB10..BC198008-198204

main88772-36040iRB11,13..BC197708-198204

88780SHAFT ASSY

main88780-36030iBB10..BC197708-197808

main88780-36031iBB10..BC197808-197809

main88780-36032iBB10..BC197809-197911

main88780-36033iBB10..BC197911-198204

main88780-36040iRB11..BC197708-197808

main88780-36041iRB11..BC197808-197809

main88780-36042iRB11..BC197809-197911

main88780-36043iRB1#..BC197911-198204

9010110049

main90101-10049

9011905087

main90119-05087

9011908038

main90119-08038

9011908057

main90119-08057

9011908058

main90119-08058

9011908065

main90119-08065

9011908069

main90119-08069

9011910088

main90119-10088

9011910089

main90119-10089

9011910094

main90119-10094

9161160820

main91611-60820

9161161065

main91611-61065

9166160845

main91661-60845

9411041000

main94110-41000

9411050800

main94110-50800

9451200800

main94512-00800

9451201000

main94512-01000

9461211001

main94612-11001

31 parts on this diagram · 4 diagrams in section
