MOULDING

0001 1 0002 1

75611MOULDING, SIDE PANEL FRONT, RH

main75611-90501iBB10,RB1#..RHD..(BC,DLX)197708-198204

main75612-90500iBB10,RB1#..LHD..(BC,DLX)197708-198204

75612MOULDING, SIDE PANEL FRONT, LH

main75611-90501iBB10,RB1#..LHD..(BC,DLX)197708-198204

main75612-90500iBB10,RB1#..RHD..(BC,DLX)197708-198204

75617MOULDING, SIDE PANEL END, NO.2

main75616-90500iBB10,RB1#..BC,DLX197802-198204

main75617-90500iBB10,RB1#..BC,DLX197708-197802

75618CONNECTOR, SIDE PANEL MOULDING

main75618-90500iBB10,RB1#..BC,DLX197708-198204

75619SPACER, SIDE PANEL MOULDING

main75619-90500iBB10,RB1#..BC,DLX197708-197811

75624MOULDING, SIDE PANEL INNER, RH

main75621-90503iBB10,RB1#..RHD..(BC,DLX)197708-197911

main75621-90504iBB10,RB1#..RHD..(BC,DLX)197911-198204

main75622-90503iBB10,RB1#..LHD..(BC,DLX)197708-197911

FR

sub75623-90502

main75622-90504iBB10,RB1#..LHD..(BC,DLX)197911-198204

FR

sub75623-90503

main75623-90502iBB10,RB1#..LHD..(BC,DLX)197708-197911

RR

main75623-90503iBB10,RB1#..LHD..(BC,DLX)197911-198204

RR

75625MOULDING, SIDE PANEL INNER, LH

main75621-90503iBB10,RB1#..LHD..(BC,DLX)197708-197911

main75621-90504iBB10,RB1#..LHD..(BC,DLX)197911-198204

main75622-90503iBB10,RB1#..RHD..(BC,DLX)197708-197911

FR

sub75623-90502

main75622-90504iBB10,RB1#..RHD..(BC,DLX)197911-198204

FR

sub75623-90503

main75623-90502iBB10,RB1#..RHD..(BC,DLX)197708-197911

RR

main75623-90503iBB10,RB1#..RHD..(BC,DLX)197911-198204

RR

75626MOULDING, SIDE PANEL, REAR

main75613-90500iBB10,RB1#..BC,DLX197708-198204

75627MOULDING, SIDE PANEL END, NO.1

main75616-90500iBB10,RB1#..BC,DLX197708-198204

75711MOULDING, FRONT DOOR OUTSIDE, NO.1

main75615-90500iBB10,RB1#..BC,DLX197708-198204

75711AMOULDING, FRONT DOOR INNER

main75624-90502iBB10,RB1#..BC,DLX197708-197911

main75624-90503iBB10,RB1#..BC,DLX197911-198204

9354014016

main93540-14016

9354014020

main93540-14020

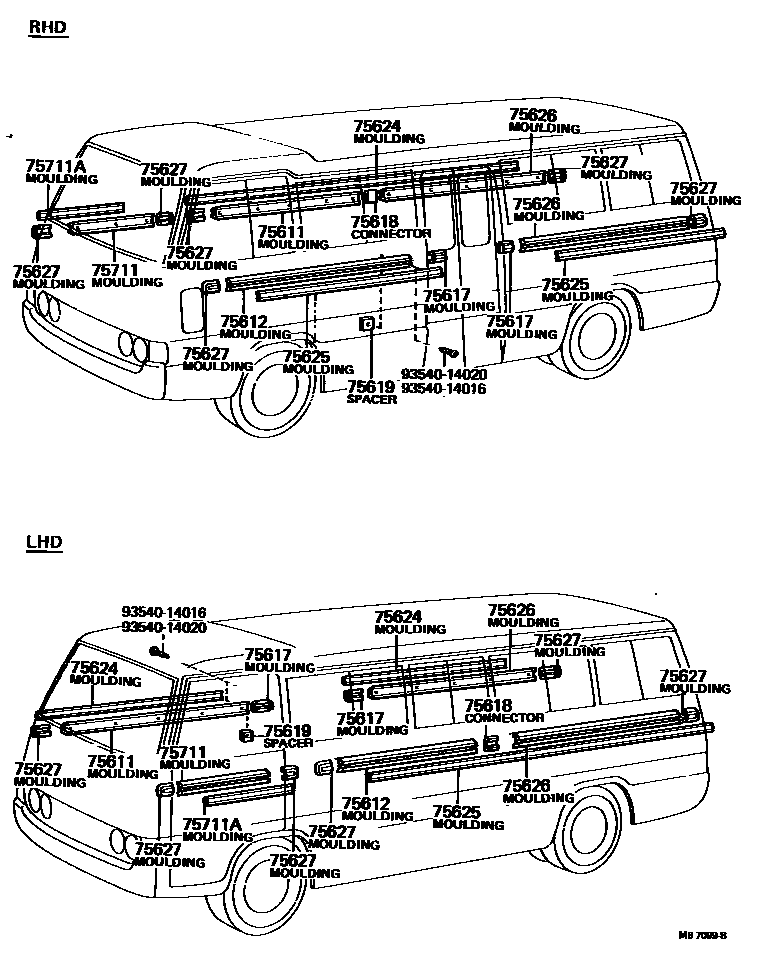

13 parts on this diagram · 2 diagrams in section
