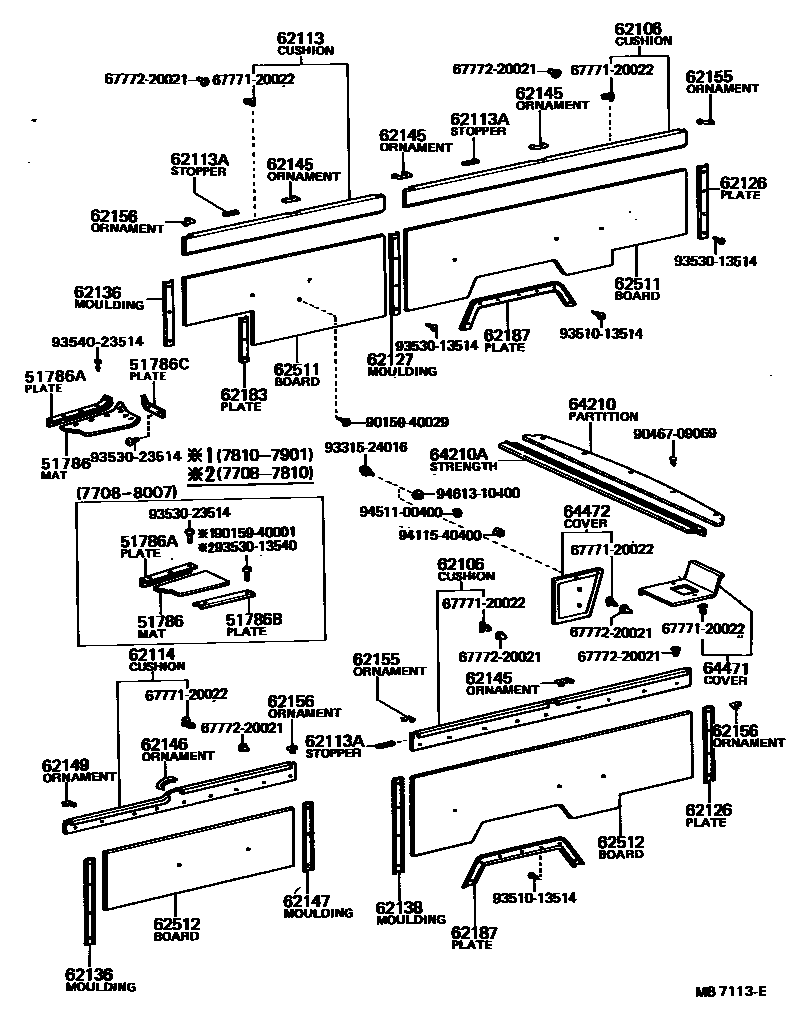

INSIDE TRIM BOARD

0001 1 0002 1

51786MAT, FRONT STEP, RH

main61625-90500iBB10,RB1#..RHD197708-198007

main61625-90501iBB10,RB1#..RHD198007-198204

51786APLATE, FRONT DOOR STEP MAT SET, LOWER

main61627-90500iBB10,RB1#197708-198007

main61765-90500iBB10,RB1#..RHD198007-198204

main61766-90500iBB10,RB1#..LHD198007-198204

51786BPLATE, FRONT DOOR STEP MAT SET, LOWER INNER

main61628-90500iBB10,RB1#197708-197810

51786CPLATE, FRONT DOOR STEP MAT SET, LOWER REAR

main61763-90500iBB10,RB1#..RHD198007-198204

main61764-90500iBB10,RB1#..LHD198007-198204

62106CUSHION SUB-ASSY, INSIDE, REAR

main62106-90740iBB10,RB1#..GEN197708-197911

RH

main62106-90741iBB10,RB11..ARL197708-197911

RH

main62106-90744iBB10,RB1#..GEN,IRQ197911-198204

RH

main62106-90745iBB10,RB1#..ARL197911-198204

RH

main62109-90740iBB10,RB1#..(DLX,STD)..GEN197708-197710

LH

main62109-90741iRB11..STD..ARL197708-197710

LH

main62109-90743iBB10,RB11..BC..GEN197708-197710

LH

main62109-90744iRB11..BC..ARL197708-197710

LH

main62109-90746iBB10,RB1#..GEN,IRQ197911-198204

LH

main62109-90747iBB10,RB1#..ARL197911-198204

LH

62113CUSHION, INSIDE, FRONT RH

main62103-90740iBB10,RB1#..RHD..GEN197708-197911

main62103-90741iBB10,RB11..ARL197708-197911

main62103-90743iBB10,RB1#..LHD197708-197911

main62103-90745iBB10,RB1#..RHD..GEN197911-198204

main62103-90746iBB10,RB1#..ARL197911-198204

main62103-90747iBB10,RB1#..LHD197911-198204

62113ASTOPPER, INSIDE CUSHION

main62197-90500×23iBB10,RB1#197708-197808

62114CUSHION, INSIDE, FRONT LH

main62104-90740iBB10,RB1#..RHD..GEN197708-197911

main62104-90741iBB10,RB11..ARL197708-197911

main62104-90743iBB10,RB1#..LHD197708-197911

main62104-90745iBB10,RB1#..RHD..GEN197911-198204

main62104-90746iBB10,RB1#..ARL197911-198204

main62104-90747iBB10,RB1#..LHD197911-198204

62126PLATE, REAR FLOOR SIDE BOARD SET VERTICAL

main62118-90740×2iBB10,RB11..BC197710-197808

LH

main62126-90741×2iBB10,RB11..BC197708-197710

LH

sub62126-90742

main64444-90740iBB10,RB11..BC197708-197808

RH

62127MOULDING, SIDE BOARD CONNECTOR

main62116-90741iBB10,RB1#197708-198201

L=525

main62116-90742iBB10,RB13198201-198204

L=525

62136MOULDING, SIDE BOARD SET FRONT FLOOR VERTICAL

main62116-90740iBB10,RB1#197708-198204

L=525

main62117-90741iBB10,RB1#197708-198201

L=360

main62117-90742iBB10,RB13198201-198204

L=360

62138MOULDING, SIDE BOARD SET REAR FLOOR VERTICAL, CENTER REAR

main62118-90740iBB10,RB1#197708-198201

main62118-90742iBB10,RB13198201-198204

62145ORNAMENT, INNER PILLAR, LOWER NO.1

main62145-90501×4iBB10,RB1#197708-198204

62146ORNAMENT, INNER PILLAR, LOWER NO.2

main62146-90501iBB10,RB1#..RHD197708-198204

main62146-90502iBB10,RB1#..LHD197708-198204

62147MOULDING, SIDE BOARD SET FRONT FLOOR VERTICAL, CENTER FRONT

main62117-90741iBB10,RB1#197708-198201

main62117-90742iBB10,RB13198201-198204

62149ORNAMENT, INNER PILLAR, LOWER NO.3

main62159-90500iBB10,RB1#..RHD197708-198204

main62159-90501iBB10,RB1#..LHD197708-198204

62155ORNAMENT, INNER PILLAR, LOWER NO.4

main62149-90500×3iBB10,RB1#197708-198204

62156ORNAMENT, INNER PILLAR, LOWER NO.5

main62156-90500×3iBB10,RB1#197708-198204

62183PLATE,SIDE BOARD CORNER SET

main62144-90740iBB10,RB1#197708-198201

main62144-90741iBB10,RB13198201-198204

62187PLATE, REAR WHEEL HOUSE SIDE BOARD SET

main62187-90740×2iBB10,RB1#197708-198201

main62187-90743×2iBB10,RB13198201-198204

62511BOARD, QUARTER INSIDE TRIM, RH

main62111-90740iBB10,RB1#..RHD197708-197911

FR

main62111-90744iBB10,RB1#..RHD197911-198204

FR

main62113-90740iBB10,RB1#..RHD..(DLX,STD)..GEN197708-197911

RR

main62113-90741iBB10,RB1#..LHD..(DLX,STD)197708-197911

RR

main62113-90742iBB10,RB11..RHD..BC..GEN197708-197911

RR

main62113-90743iBB10,RB11..LHD..BC197708-197911

RR

main62113-90745iBB10,RB11..STD..ARL197708-197911

RR

main62113-90746iBB10,RB11..BC..ARL197708-197911

RR

main62113-90748iBB10,RB1#..RHD..(DLX,STD)..GEN197911-198204

RR

main62113-90749iBB10,RB1#..RHD..BC..GEN197911-198204

RR

main62113-90750iBB10,RB1#..STD..ARL197911-198204

RR

main62113-90751iBB10,RB1#..BC..ARL197911-198204

RR

main62113-90752iBB10,RB1#..LHD..(DLX,STD)197911-198204

RR

main62113-90753iBB10,RB1#..LHD..BC197911-198204

RR

main62114-90740iBB10,RB1#..LHD197708-197911

FR

main62114-90744iBB10,RB1#..LHD197911-198204

FR

62512BOARD, QUARTER INSIDE TRIM, LH

main62114-90740iBB10,RB1#..RHD197708-197911

FR

main62114-90741iBB10,RB1#..LHD197708-197911

FR

main62114-90744iBB10,RB1#..RHD197911-198204

FR

main62114-90745iBB10,RB1#..LHD197911-198204

FR

main62115-90740iBB10,RB1#..RHD..(21S,22S,25S,26S)197708-197911

RR

main62115-90741iBB10,RB1#..LHD197708-197911

RR

main62115-90742iBB10,RB11..STD..ARL197708-197911

RR

main62115-90745iBB10,RB1#..RHD..(21S,22S,25S,26S)197911-198204

RR

main62115-90746iBB10,RB1#..STD..ARL197911-198204

RR

main62115-90747iBB10,RB1#..LHD197911-198204

RR

64210PARTITION ASSY, LUGGAGE

main64210-90740iBB10,RB1#197708-198204

64210ASTRENGTH, LUGGAGE PARTITION

main64803-90740iBB10,RB11,13..BC197708-198204

main64803-90741iBB10,RB1#..DLX,STD197708-198204

64471COVER, EVAPORATOR, UPPER

main64802-90741iBB10,RB11..BC..GEN197708-197911

main64802-90742iBB10,RB11..BC..ARL197708-197911

main64802-90744iBB10,RB1#..BC197911-198204

64472COVER,EVAPORATOR, SIDE

main64801-90740iBB10,RB11..BC..GEN197708-197911

main64801-90741iBB10,RB11..BC..ARL197708-197911

main64801-90743iBB10,RB1#..BC197911-198204

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9015940001

main90159-40001

9015940029

main90159-40029

9046709069

main90467-09069

9331524016

main93315-24016

9351013514

main93510-13514

9353013514

main93530-13514

9353013540

main93530-13540

9353023514

main93530-23514

9354023514

main93540-23514

9411540400

main94115-40400

9451100400

main94511-00400

9461310400

main94613-10400

40 parts on this diagram · 2 diagrams in section
