SIDE MEMBER
58826STOPPER, FUEL INLET COVER, UPPER
61028PILLAR SUB-ASSY, REAR INNER, RH
61029PILLAR SUB-ASSY, REAR INNER, LH
61103PILLAR SUB-ASSY, FRONT BODY, RH
61104PILLAR SUB-ASSY, FRONT BODY, LH
61104DBRACKET, WASHER TANK, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
W/RADIO
61132PILLAR, FRONT BODY, UPPER OUTER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61164PILLAR, FRONT BODY, INNER LH
61177COVER, CENTER DOOR GUIDE
61177ACUSHION, CENTER DOOR GUIDE
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61213RAIL, ROOF SIDE, OUTER REAR RH
61214RAIL, ROOF SIDE, OUTER REAR LH
61216RAIL, CENTER DOOR SIDE, LH
61217RAIL, ROOF SIDE, OUTER CENTER RH
61218RAIL, ROOF SIDE, OUTER CENTER LH
61269COVER, FRONT DOOR WEATHERSTRIP SET
61311PILLAR, REAR RH
61312PILLAR, REAR LH
61385STOPPER, AIR CLEANER SERVICE HOLE COVER
61443PANEL, STEP SIDE UNDER FRONT, RH
61445PANEL, STEP SIDE, REAR RH
61456STRANGTH, STEP, RH
61476PATCH, FRONT DOOR PILLAR, RH
61478PATCH, CENTER DOOR PILLAR
61479PATCH, CENTER DOOR PILLAR
61601RAIL SUB-ASSY, CENTER DOOR, UNDER
61611PANEL, QUARTER, RH
FR
FR
RR
RR
RR
RR
61611FGUSSET, QUARTER PANEL, LOWER RH
61612PANEL, QUARTER, LH
FR
RR
RR
FR
61612FGUSSET, QUARTER PANEL, LOWER LH
61631CSPACER(FOR QUARTER WHEEL HOUSE)
61673PANEL, FRONT DOOR STEP FRONT, RH
61673APANEL, FRONT DOOR STEP, REAR RH
61675PANEL, FRONT DOOR STEP SIDE, RH
62332PANEL SUB-ASSY, SIDE LOWER WINDOW
64307NET SUB-ASSY, CONDENSER AIR GUIDE
9015940001
main90159-40001
9018304070
main90183-04070
9095001004
main90950-01004
9095001011
main90950-01011
9095001255
main90950-01255
9331914008
main93319-14008
9351014010
main93510-14010
9351015012
main93510-15012
9351023510
main93510-23510
9461110400
main94611-10400

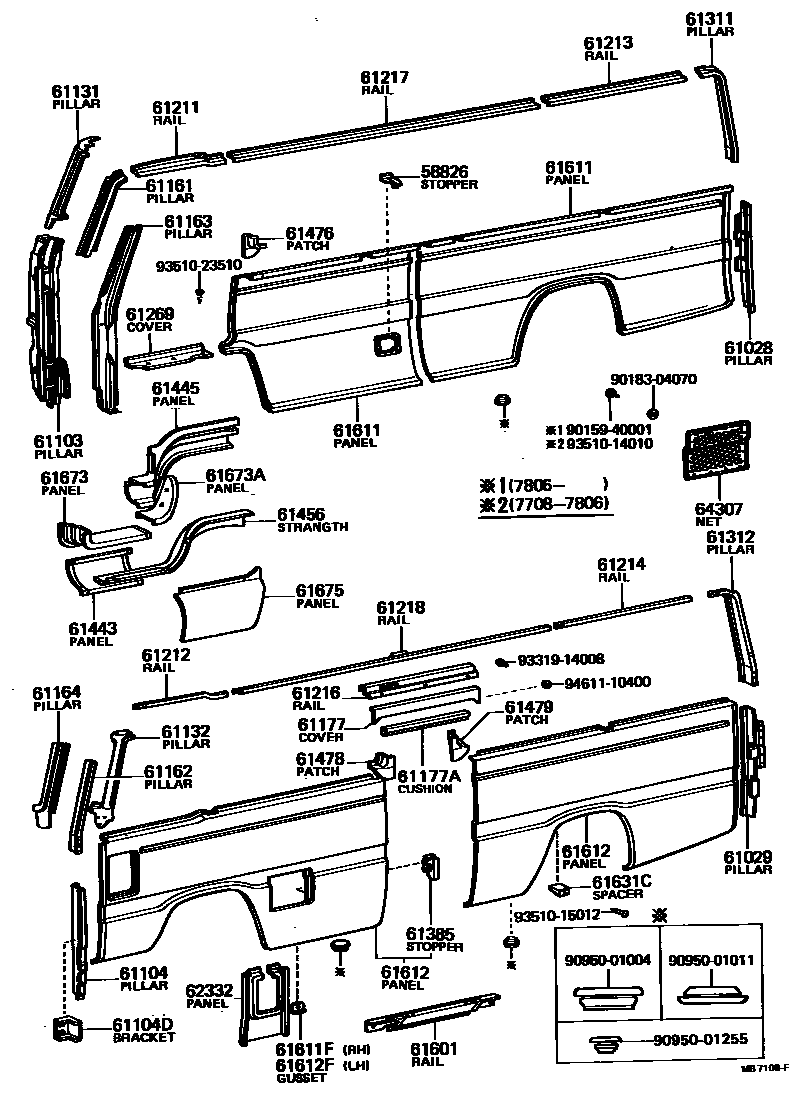

52 parts on this diagram · 2 diagrams in section
