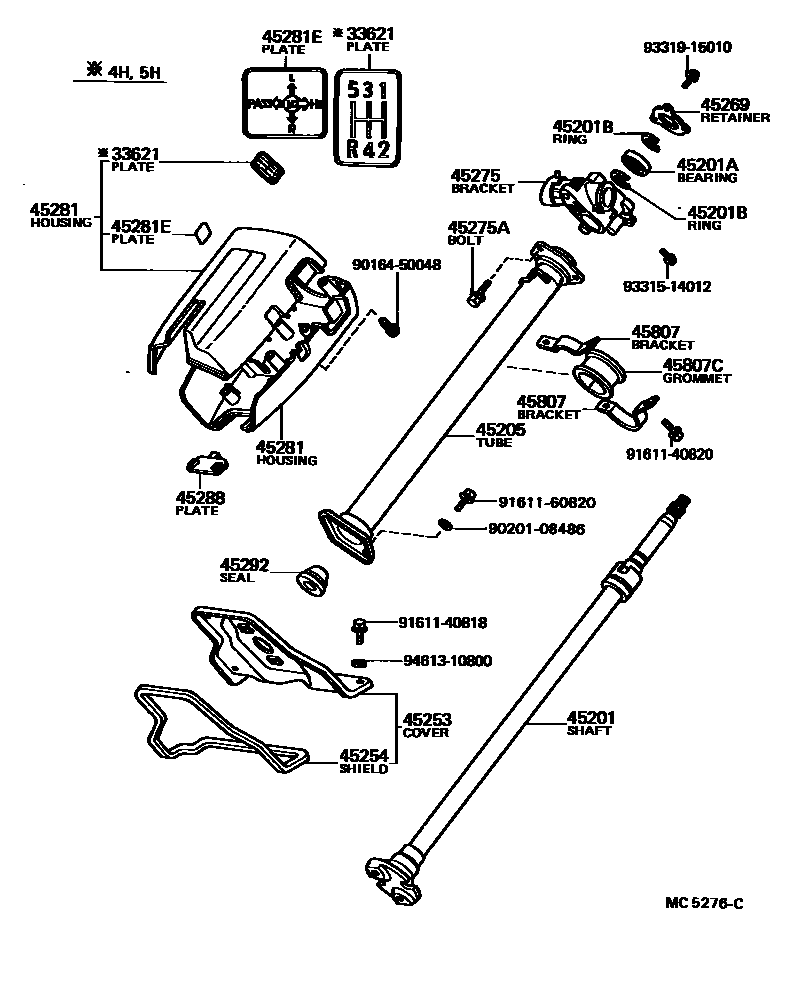

STEERING COLUMN & SHAFT

0001 1 0002 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36010iRB10..LHD197708-197911

main33621-36020iBB10,RB11..RHD..5H197708-197911

main33621-36030iBB10..LHD197708-197911

main33621-36040iRB1#..RHD..4H197708-197911

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-36110iBB10,RB1#197708-198204

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iBB10,RB1#197708-198204

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBB10,RB1#197708-198204

T=1.20,LWR

main90520-17269iBB10,RB1#197708-198204

T=1.20,UPR

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-36130iBB10,RB1#197708-198204

45253COVER, STEERING COLUMN HOLE

main45253-36060iBB10,RB1#..RHD197708-197911

main45253-36070iBB10,RB1#..LHD197708-197911

main45253-36160iBB10,RB1#..RHD197911-198204

main45253-36170iBB10,RB1#..LHD197911-198204

45254SHIELD, STEERING COLUMN HOLE

main45254-36020iBB10,RB1#..RHD197708-198204

main45254-36030iBB10,RB1#..LHD197708-198204

45269RETAINER, MAIN SHAFT BEARING

main45269-36010iBB10,RB1#197708-198204

45275BRACKET, STEERING COLUMN, UPPER

main45307-36050iRB1#..RHD197708-198204

sub45307-36051

main45307-36050iBB10..ARL197708-198204

W/*EDIC

sub45307-36051

main45307-36060iBB10..RHD197708-198204

sub45307-36061

main45307-36070iBB10..LHD197708-197911

sub45307-36071

main45307-36080iRB1#..LHD197708-197911

W/*EDIC

sub45307-36081

main45307-36090iBB10..LHD197911-198204

sub45307-36091

main45307-36100iRB1#..LHD197911-198204

sub45307-36101

main45307-36100iBB10..LHD..(DLX,STD)197911-198008

W/*EDIC

sub45307-36101

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main91611-40616iBB10,RB1#197708-198008

sub91611-60616

main91611-60616iBB10,RB13198008-198204

sub91611-B0616

45281HOUSING, STEERING COLUMN

main45286-36110iBB10..RHD197708-197911

UPR

main45286-36120iRB11..RHD..5H197708-197911

UPR,W/*EDIC

main45286-36150iBB10..LHD197708-197911

UPR

main45286-36160iRB11..LHD..5H197708-197911

UPR

main45286-36170iBB10..LHD197911-198204

UPR

main45286-36180iBB10..LHD..(DLX,STD)197911-198204

UPR,W/*EDIC

main45286-36200iRB1#..RHD..4H197708-197911

UPR

main45286-36210iRB1#..LHD..4H197708-197911

UPR

main45286-36250iBB10..RHD..GEN197911-198204

UPR

main45286-36260iBB10..RHD..(22S,23S,26S)197911-198204

UPR,W/*EDIC

main45287-36070iBB10,RB1#..RHD197708-198204

LWR

main45287-36090iBB10,RB11..LHD197708-197911

LWR

main45287-36100iBB10,RB1#..LHD197911-198204

LWR

45281EPLATE, SAFETY CAUTION

main45283-22010iBB10,RB1#..RHD197708-198204

main45283-22020iBB10,RB1#..LHD197708-198204

45288PLATE, STEERING COLUMN COVER

main45288-36010iBB10,RB1#197708-198204

45292SEAL, MAIN SHAFT LOWER DUST

main45292-36010iBB10,RB1#197708-198204

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main55601-90500iBB10,RB1#197708-198204

UPR

sub55612-90501

main55612-90501iBB10,RB1#197708-198204

LWR

45807CGROMMET(FOR STEERING COLUMN CLAMP)

main90480-45092iBB10,RB1#197708-198204

9016450048

main90164-50048

9020108486

main90201-08486

9161140818

main91611-40818

9161140820

main91611-40820

9161160820

main91611-60820

9331514012

main93315-14012

9331915010

main93319-15010

9461310800

main94613-10800

24 parts on this diagram · 2 diagrams in section
