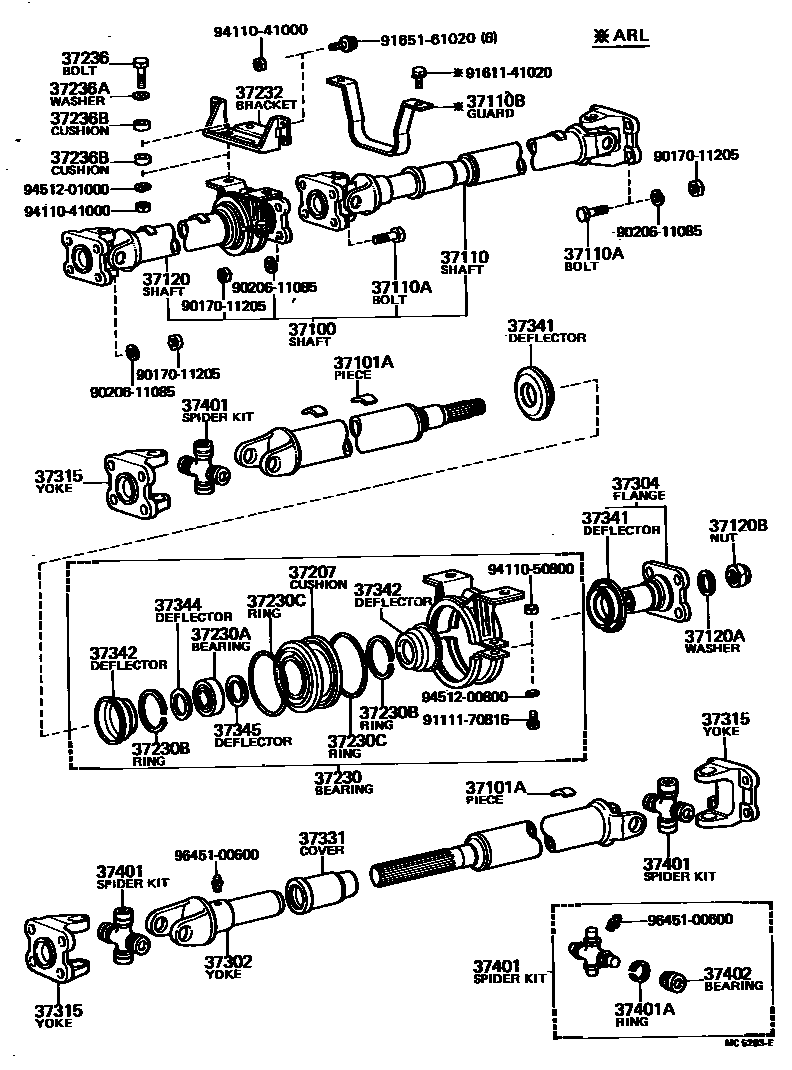

PROPELLER SHAFT & UNIVERSAL JOINT

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-36160iBB10197708-198204

main37100-36170iRB11,13..4F,4H197708-198204

main37100-36180iRB11,13..5F,5H197708-198204

main37100-36190iRB10197708-197911

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iBB10,RB1#197708-198204

10G,L=20.7,10G

main90937-01136iBB10,RB1#197708-198204

20G,L=41.4,20G

main90937-01140iBB10,RB1#197708-198204

30G,L=62.2,30G

main90937-01147iBB10,RB1#197708-198204

2G,T=2.0,2G

main90937-01148iBB10,RB1#197708-198204

4G,T=2.0,4G

main90937-01149iBB10,RB1#197708-198204

6G,L=12.4,6G

main90937-01150iBB10,RB1#197708-198204

8G,L=16.6,8G

main90937-01151iBB10,RB1#197708-198204

12G,L=24.9,12G

main90937-01152iBB10,RB1#197708-198204

14G,L=29.0,14G

main90937-01153iBB10,RB1#197708-198204

16G,L=33.2,16G

main90937-01154iBB10,RB1#197708-198204

18G,L=37.3,18G

main90937-01155iBB10,RB1#197708-198204

22G,L=45.6,22G

main90937-01156iBB10,RB1#197708-198204

24G,L=49.7,24G

main90937-01157iBB10,RB1#197708-198204

26G,L=53.9,26G

main90937-01158iBB10,RB1#197708-198204

28G,L=58.1,28G

37110SHAFT ASSY, PROPELLER

main37110-36251iBB10,RB11,13197708-198204

main37110-36280iRB10197708-197911

37110ABOLT (FOR PROPELLER SHAFT)

main90101-11468×8iBB10,RB1#197708-198204

sub90105-11H00

37110BGUARD, PROPELLER SHAFT

main51569-36010iBB10,RB11..ARL197708-197903

main51569-36011iBB10,RB11,13..ARL197903-198204

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-36150iBB10197708-197904

main37120-36160iRB11,13..4F,4H197708-198204

main37120-36170iRB11,13..5F,5H197708-198204

main37120-36180iRB10197708-197911

main37120-36200iBB10197904-198204

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-20005iBB10,RB1#197801-198204

OD=33.5,T=4.0

main90201-20329iBB10,RB1#197708-197801

OD=34

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-20001iBB10,RB1#197801-198204

main90179-20061iBB10,RB1#197708-197801

37207CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1

main37207-35011iBB10,RB1#197708-198204

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-36020iBB10,RB1#197708-197904

sub37230-36021

main37230-36040iBB10,RB1#197904-198204

37230ABEARING, NO.1 (FOR CENTER SUPPORT)

main90363-30029iBB10,RB1#197708-198204

37230BRING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING)

main90521-66077×2iBB10,RB1#197708-198204

37230CRING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)

main90522-97001×2iBB10,RB13198107-198204

main90522-97013×2iBB10,RB1#197708-198107

37232BRACKET, CENTER SUPPORT BEARING HOUSING

main51504-36012iBB10197708-198204

main51563-36020iRB1#197708-198204

37236BOLT, CENTER SUPPORT BEARING HOUSING

main37236-36020×2iBB10,RB1#197708-198204

sub37236-36H00

37236AWASHER, PLATE (FOR CENTER SUPPORT BEARING HOUSING)

main94613-11400×2iBB10,RB1#197708-198204

37236BCUSHION (FOR CENTER SUPPORT BEARING HOUSING)

main90540-14001×4iBB10,RB1#197708-198204

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-36010iBB10,RB1#197708-198204

sub37302-36H00

sub37302-36H01

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-36020iBB10,RB1#197708-197801

sub37304-36022

main37304-36021iBB10,RB1#197801-198204

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-36010×3iBB10,RB1#197708-198204

37331COVER, SLIDING SHAFT DUST

main37305-25010iBB10,RB1#197708-198204

main37305-36010iBB10,RB13198204-198204

37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1

main37341-36010×2iBB10,RB1#197708-198204

37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2

main37342-36010×2iBB10,RB1#197708-198204

37344DEFLECTOR, PROPELLER SHAFT DUST, NO.3

main37344-35010iBB10,RB1#197708-198204

37345DEFLECTOR, PROPELLER SHAFT DUST, NO.4

main37345-35010iBB10,RB1#197708-198204

sub37345-40010

37401SPIDER KIT, UNIVERSAL JOINT

main04371-36021×3iBB10,RB1#197708-198204

sub04371-36030

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-29002×12iBB10,RB1#197708-198204

T=1.53,T=1.53

main90520-29286×12iBB10,RB1#197708-198204

T=1.50,T=1.50

main90520-29287×12iBB10,RB1#197708-198204

T=1.56,T=1.56

main90520-29288×12iBB10,RB1#197708-198204

T=1.59,T=1.59

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-36060×12iBB10,RB1#197708-198204

sub37402-36080

sub90520-29024

sub90520-29025

sub90520-29026

sub90520-29027

9017011205

main90170-11205

9020611085

main90206-11085

9111170816

main91111-70816

9161141020

main91611-41020

9165161020

main91651-61020

9411041000

main94110-41000

9411050800

main94110-50800

9451200800

main94512-00800

9451201000

main94512-01000

9645100600

main96451-00600

38 parts on this diagram · 1 diagram in section
