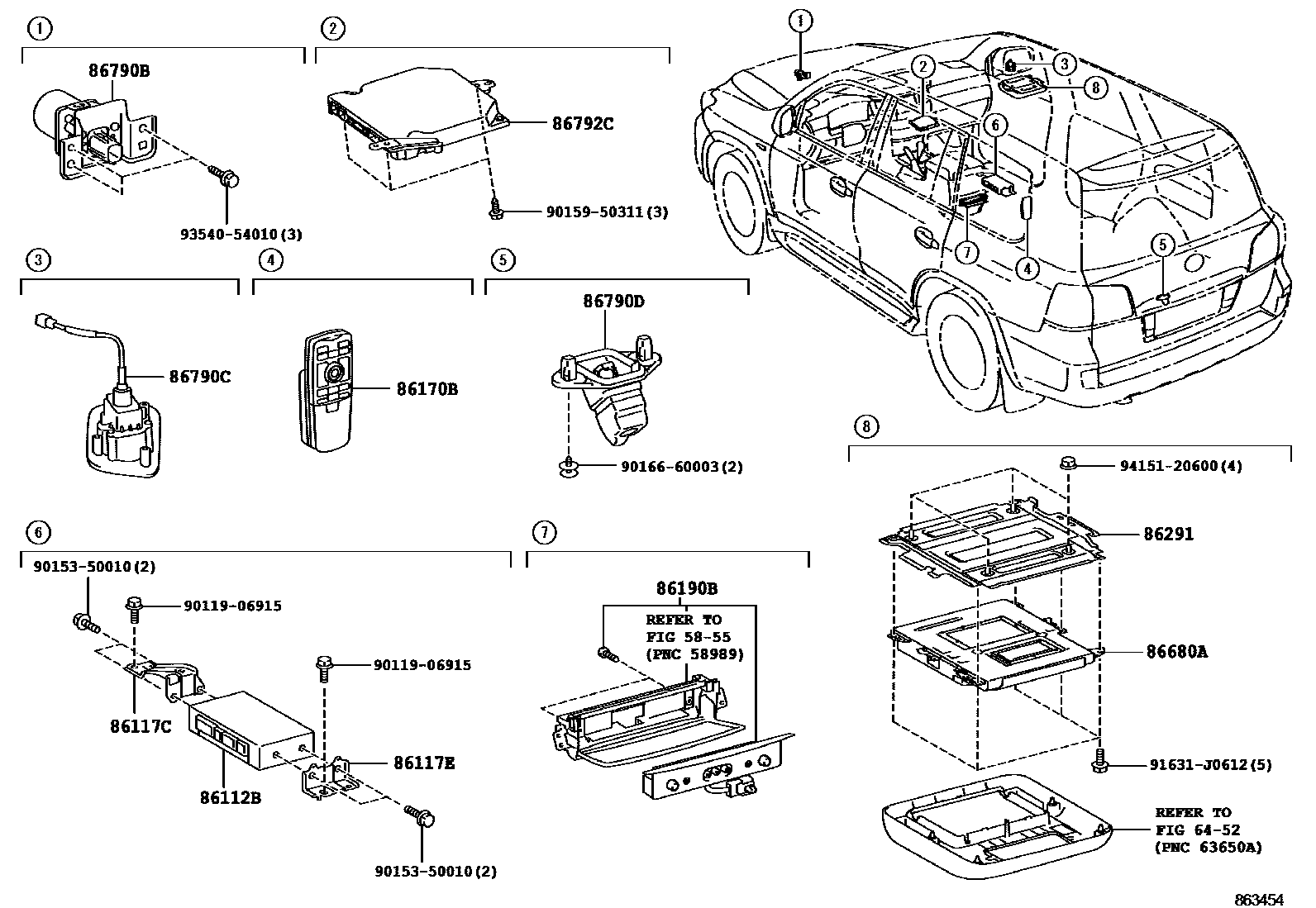

CAMERA & REAR MONITOR DISPLAY
5855
6452
86112BSELECTOR, MULTI-DISPLAY
REAR SEAT ENTERTAINMENT-WITH
86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2
REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR)
REAR SEAT ENTERTAINMENT-WITH
REAR SEAT ENTERTAINMENT-WITH
86117EBRACKET, MULTI-DISPLAY CONTROLLER, NO.3
REAR SEAT ENTERTAINMENT-WITH
REAR SEAT ENTERTAINMENT-WITH
86170BSWITCH & VOLUME ASSY, TELEVISION
REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR)
GCC SPEC(EXCEPT SAUDI ARABIA)&REAR SEAT ENTERTAINMENT-WITH
REAR SEAT ENTERTAINMENT-WITH
REAR SEAT ENTERTAINMENT-WITH
REAR SEAT ENTERTAINMENT-WITH
INDIA SPEC&REAR SEAT ENTERTAINMENT-WITH
86190BADAPTER ASSY, REMOTE CONTROL
IVORY,TRIM0#
SEAT AIR CONDITIONER-W(VENTILATION,DRIVER & PASSENGER),IVORY,TRIM0#
BLACK,TRIM2#,5#
REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM02
BLACK,TRIM06,2#,3#,4#
REAR SEAT ENTERTAINMENT-WITH,MD.GRAY,TRIM1#
86291BRACKET, TELEVISION
REAR SEAT ENTERTAINMENT-WITH
86680ADISPLAY ASSY, TELEVISION
PANASONIC,IVORY,TRIM0#
PANASONIC,BLACK,TRIM2#,4#,5#
PANASONIC,IVORY,TRIM0#
PANASONIC,SAUDI ARABIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&SEAT COVERMATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),BLACK,TRI
PANASONIC,IVORY,TRIM0#
PANASONIC,REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),BLACK,TRIM2#,3#,4#
PANASONIC,BLACK,TRIM0#,2#,3#,4#
PANASONIC,REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,3#,4#,5#
PANASONIC,BLACK,TRIM0#,2#,3#,4#
PANASONIC,IVORY,TRIM0#
PANASONIC,LT.GRAY,TRIM1#,2#
PANASONIC,IVORY,TRIM0#
PANASONIC,LT.GRAY,TRIM2#
DENSO,REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM0#
DENSO,REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#
DENSO,REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM0#
DENSO,REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#
86790BCAMERA ASSY, TELEVISION, FR
COLOMBIA SPEC
BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)
BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)
86790CCAMERA ASSY, TELEVISION, SIDE
PERU SPEC,LH
SAUDI ARABIA SPEC,RH
BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)
BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)
86790DCAMERA ASSY, TELEVISION, RR
BACK MONITOR-WITHOUT
86792CCOMPUTER, PARKING ASSIST
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)
COLOMBIA SPEC
COLOMBIA SPEC
BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)
SYRIA OR LEBANON OR JORDAN SPEC&BACK MONITOR-GUIDE
INDIA SPEC
9011906915
main90119-06915
9015350010
main90153-50010
9015950311
main90159-50311
9016660003
main90166-60003
91631J0612
main91631-J0612
9354054010
main93540-54010
9415120600
main94151-20600
20 parts on this diagram · 10 diagrams in section
