HEADLAMP CLEANER
8401
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
HEADLAMP CLEANER-WITH,STARLIGHT BLACK GF.,217
sub85353-60901
HEADLAMP CLEANER-WITH,WHITE PEARL CS.,077
HEADLAMP CLEANER-WITH,PREMIUM SILVER,1F2
HEADLAMP CLEANER-WITH,GRAY M.M.,1G8
HEADLAMP CLEANER-WITH,BLACK,202
HEADLAMP CLEANER-WITH,STARLIGHT BLACK GF.,217
HEADLAMP CLEANER-WITH,DK.RED MC.CS.,3R7
HEADLAMP CLEANER-WITH,BEIGE ME.,4T1
HEADLAMP CLEANER-WITH,BLUE M.M.,8U4
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
HEADLAMP CLEANER-WITH,STARLIGHT BLACK GF.,217
sub85354-60901
HEADLAMP CLEANER-WITH,WHITE PEARL CS.,077
HEADLAMP CLEANER-WITH,PREMIUM SILVER,1F2
HEADLAMP CLEANER-WITH,GRAY M.M.,1G8
HEADLAMP CLEANER-WITH,BLACK,202
HEADLAMP CLEANER-WITH,STARLIGHT BLACK GF.,217
HEADLAMP CLEANER-WITH,DK.RED MC.CS.,3R7
HEADLAMP CLEANER-WITH,BEIGE ME.,4T1
HEADLAMP CLEANER-WITH,BLUE M.M.,8U4
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85271HOSE, HEADLAMP CLEANER, NO.1
L=850,HEADLAMP CLEANER-WITH
L=900,HEADLAMP CLEANER-WITH
85271AHOSE, HEADLAMP CLEANER, NO.2
L=140,HEADLAMP CLEANER-WITH
L=190,HEADLAMP CLEANER-WITH
85271BHOSE, HEADLAMP CLEANER, NO.3
L=670
L=1000,HEADLAMP CLEANER-WITH
L=550
85271CHOSE, HEADLAMP CLEANER, NO.4
L=600,HEADLAMP CLEANER-WITH
L=50,HEADLAMP CLEANER-WITH
L=900
L=795,HEADLAMP CLEANER-WITH
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
HEADLAMP CLEANER-WITH
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEADLAMP CLEANER-WITH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=40,HEADLAMP CLEANER-WITH
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85376APROTECTOR, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP CLEANER-WITH
85376BPROTECTOR, HEADLAMP CLEANER HOSE, NO.3
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8527760050HOSE, HEADLAMP CLEANER, C
main85277-60050
9046312570
main90463-12570
91651A0616
main91651-A0616

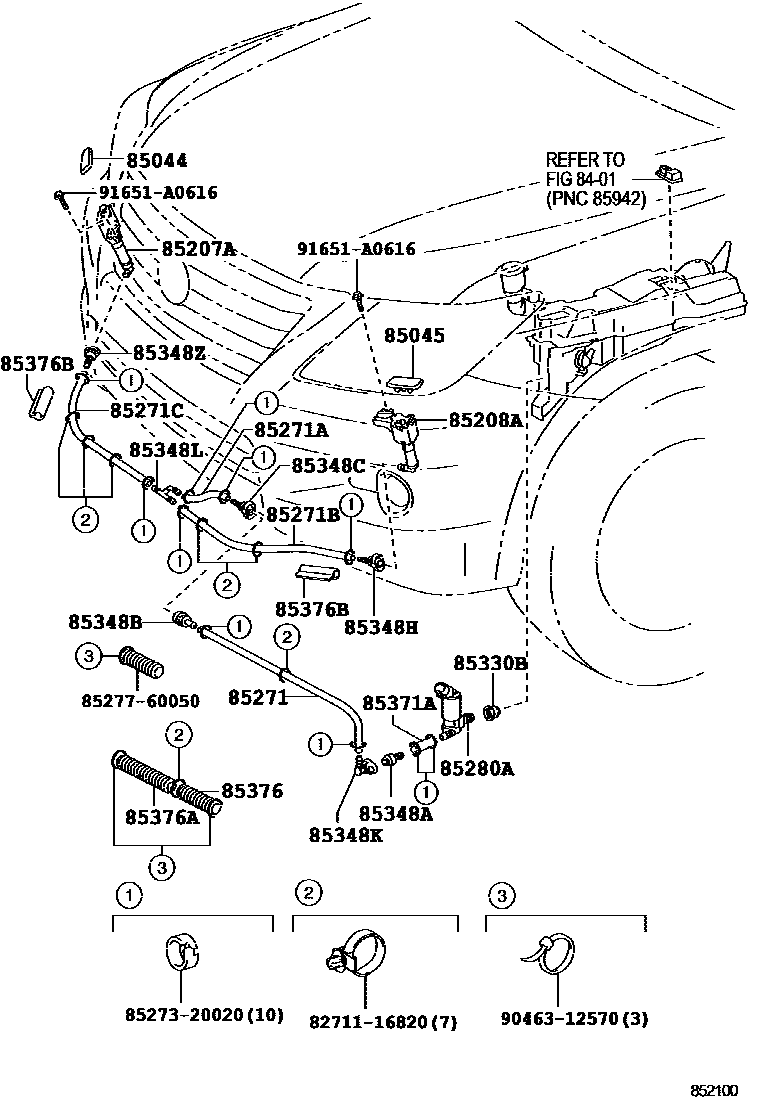

27 parts on this diagram · 4 diagrams in section
