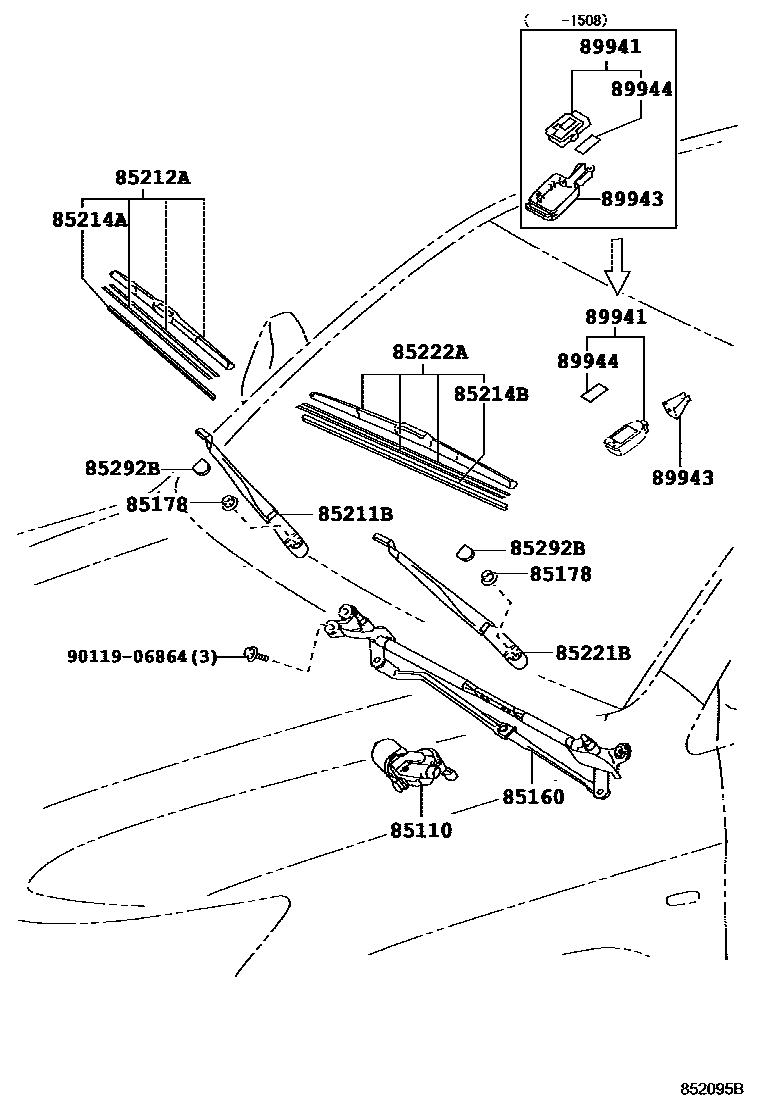

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60370iURJ20#..ARL¥20,900200711-201509

main85110-60390iURJ201,VDJ201..GCC¥20,900200711-201509

main85110-60400iURJ201..CHI¥21,100200711-202006

85160LINK ASSY, WINDSHIELD WIPER

main85150-60290iURJ201,VDJ201..ARL¥8,400200711-201606

sub85150-60291¥5,800

main85150-60291iURJ201,VDJ201..ARL¥5,800201607

main85150-60310iURJ201,VDJ201..GCC200711-201606

sub85150-60311

main85150-60311iURJ201,VDJ201..GCC201607

main85150-60320iURJ201..CHI200711-201606

sub85150-60321

main85150-60321iURJ201..CHI201607-202006

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iURJ201¥80200711-201509

85211BARM, FRONT WIPER, RH

main85211-60240iURJ20#..ARL¥3,070200711-201509

main85211-60260iURJ201..LHD¥2,920200711-201509

85212ABLADE, FR WIPER, RH

main85212-42110iURJ201..ARL¥3,700200711-201509

main85222-53071iURJ201..LHD¥3,190200711-201509

85214ARUBBER, WIPER, RH

main85214-30380iURJ201,VDJ201..ARL¥850200711-201509

main85214-53080iURJ201..LHD¥850200711-201509

85214BRUBBER, WIPER, LH

main85214-30380iURJ201..LHD¥850200711-201509

main85214-53080iURJ201..ARL¥850200711-201509

85221BARM, FRONT WIPER, LH

main85221-60270iURJ20#..ARL¥2,920200711-201509

main85221-60280iURJ201..GCC¥3,070200711-201509

main85221-60290iURJ201..CHI¥3,070200711-202006

85222ABLADE, FR WIPER, LH

main85212-53070iURJ201..ARL¥3,190200711-201509

main85222-42110iURJ201..LHD¥3,700200711-201509

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iURJ201¥250200711-201509

89941SENSOR, RAIN

main89941-50040iURJ201¥36,700200711-200902

sub89941-50080¥36,700

main89941-50080iURJ201¥36,700200903-201109

sub89941-50081¥36,700

main89941-50081iURJ201¥36,700201110-201509

main89941-52010iURJ201,VDJ201¥12,500201509

89943COVER, RAIN SENSOR

main89943-60030iURJ20#¥1,350200711-201509

main89943-76010iURJ201,VDJ201¥1,400201509

89944TAPE, RAIN SENSOR

main89944-42010iURJ201,VDJ201¥1,490201509

main89944-50020iURJ201¥2,380200711-201110

sub89944-50021¥1,980

main89944-50021iURJ20#¥1,980201110-201509

9011906864

main90119-06864¥80

14 parts on this diagram · 2 diagrams in section
