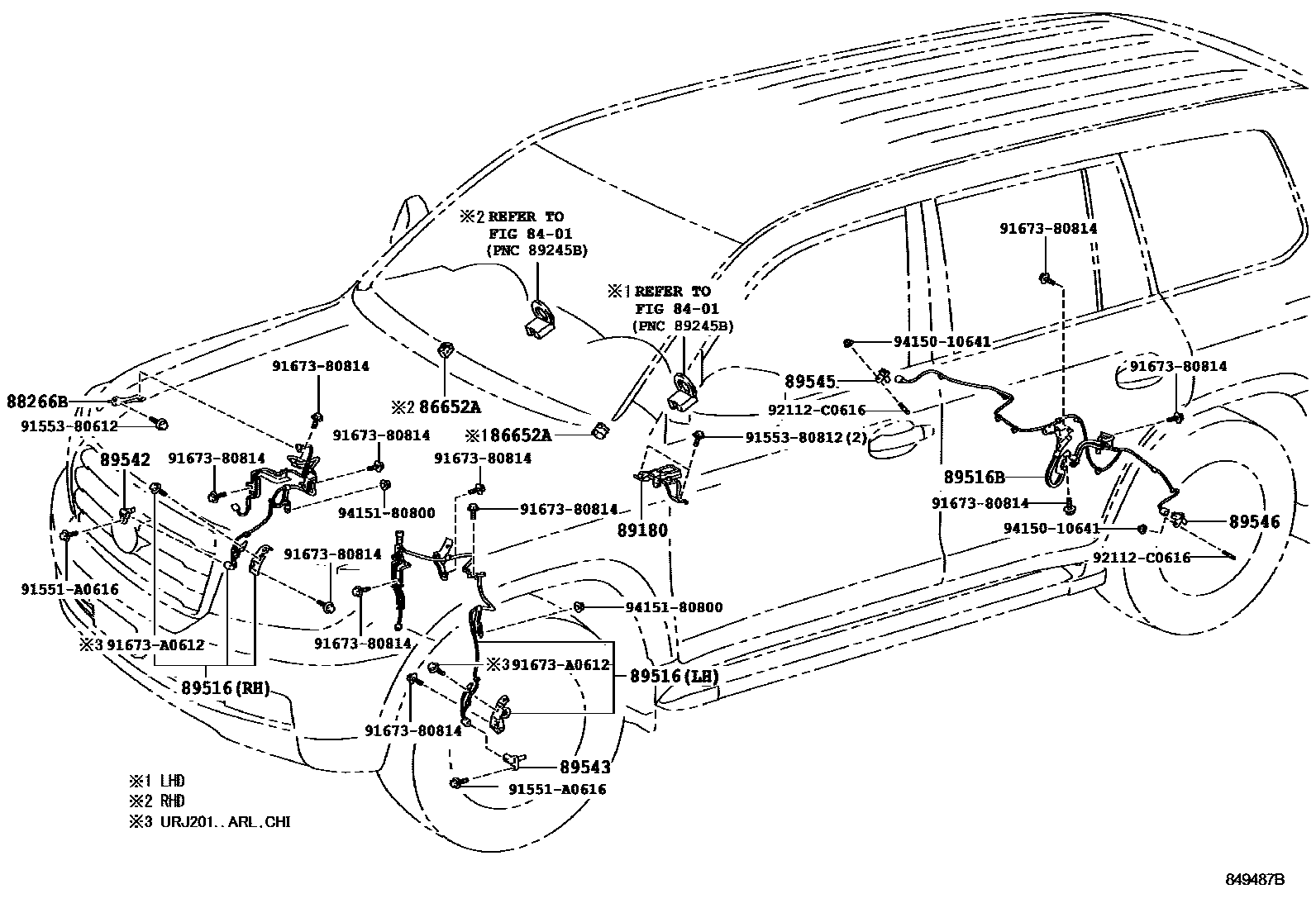

ABS & VSC
8401
86652ABUZZER ASSY, SKID CONTROL
88266BCLAMP, SKID CONTROL SENSOR, NO.1
89180SENSOR ASSY, YAWRATE
89516WIRE, SKID CONTROL SENSOR
COLOMBIA SPEC,RH
LH
RH
LH
89516BWIRE, SKID CONTROL SENSOR
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
91551A0616
main91551-A0616
9155380612
main91553-80612
9155380812
main91553-80812
9167380814
main91673-80814
91673A0612
main91673-A0612
92112C0616
main92112-C0616
9415010641
main94150-10641
9415180800
main94151-80800
18 parts on this diagram · 2 diagrams in section
