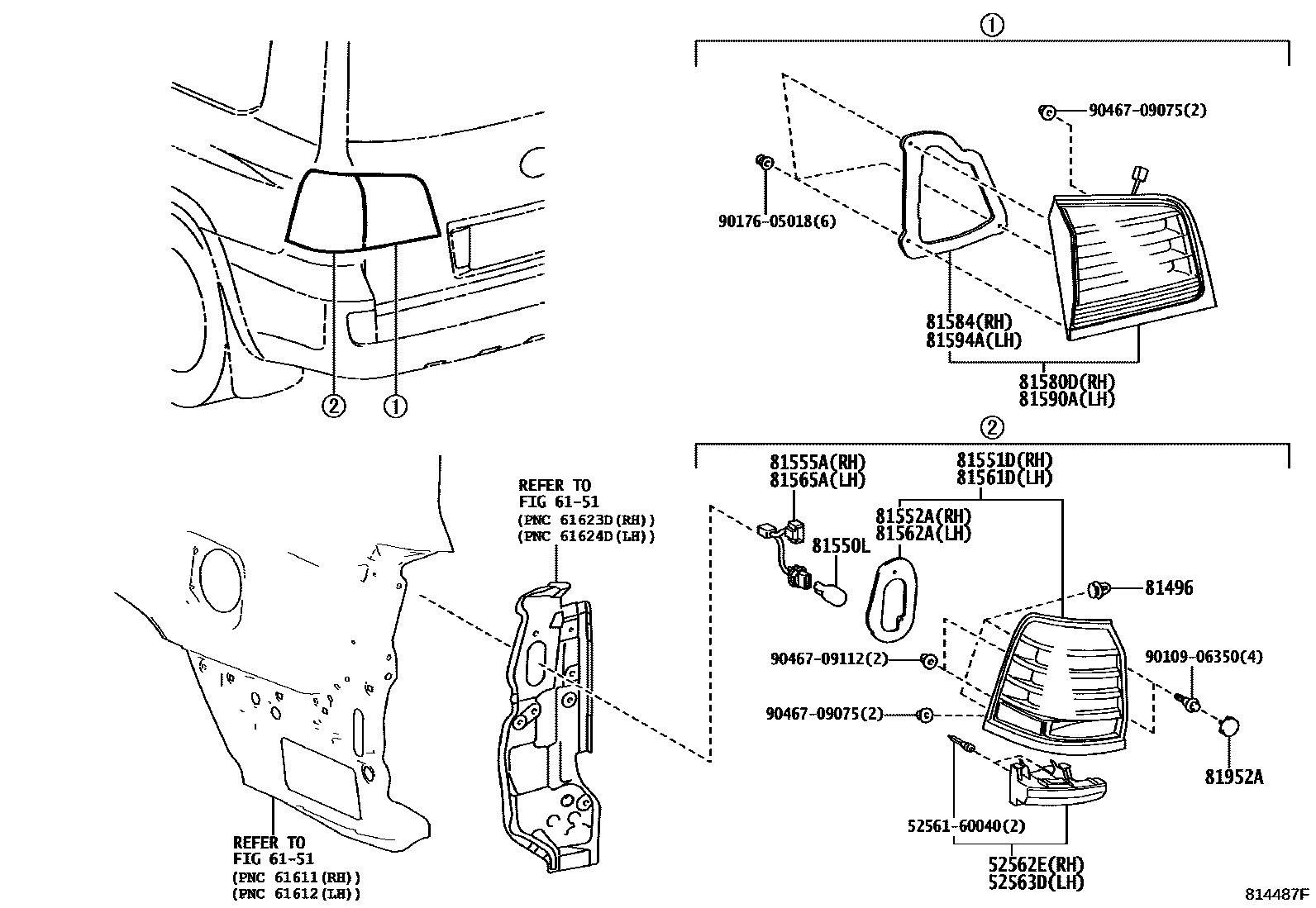

REAR COMBINATION LAMP
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
6151
81496GUIDE, REAR COMBINATION LAMP
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W
12V 21W,AMBER
81551DLENS & BODY, REAR COMBINATION LAMP, RH
PERU SPEC&HEADLAMP-LED & WITH(*AHB & SEQUENTIAL TURN)
QATAR, OMAN, BAHRAIN SPEC&HEADLAMP-LED,W(*AHS & SEQUENTIAL TURN),BLACK TYPE
sub81551-60C81
HEADLAMP-LED,W(*AHS & SEQUENTIAL TURN),BLACK TYPE
81552AGASKET, REAR COMBINATION LAMP, RH
81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
LEBANON SPEC&HEADLAMP-LED,W(*AHS & SEQUENTIAL TURN),BLACK TYPE
sub81561-60B51
QATAR, OMAN, BAHRAIN SPEC&HEADLAMP-LED,W(*AHS & SEQUENTIAL TURN),BLACK TYPE
SYRIA, LEBANON, JORDAN SPEC&HEADLAMP-LED & WITH(*AHS & SEQUENTIAL TURN)
81562AGASKET, REAR COMBINATION LAMP, LH
81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81580DLAMP ASSY, REAR, RH
81584PACKING, REAR LAMP RH
81590ALAMP ASSY, REAR, LH
81594AGASKET, REAR LAMP LH
81952ACOVER, REAR LAMP, RH
5256160040RETAINER, REAR BUMPER, UPPER CENTER
main52561-60040
9010906350
main90109-06350
9017605018
main90176-05018
9046709075
main90467-09075
9046709112
main90467-09112
21 parts on this diagram · 3 diagrams in section
