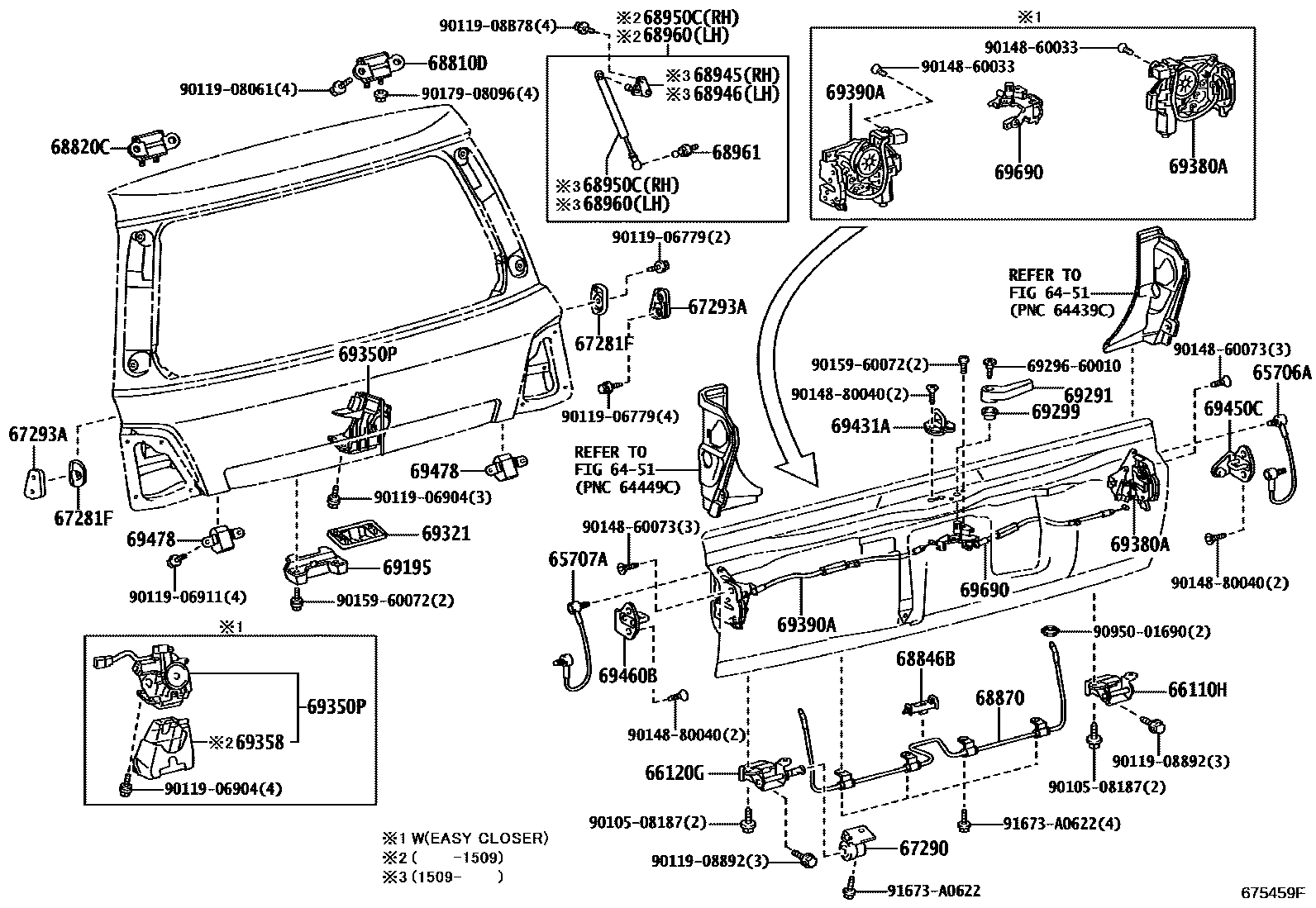

BACK DOOR LOCK & HINGE

0001 1 0002 1POWER BACK DOOR PARTS

6451

65706ASTAY SUB-ASSY, TAIL GATE, RH

main65706-60030iURJ20#201201-201509

main65706-60032iURJ201,VDJ201201908

65707ASTAY SUB-ASSY, TAIL GATE, LH

main65706-60030iURJ201200711-201201

main65706-60032iURJ201,VDJ201201908

66110HHINGE ASSY, TAIL GATE, RH

main66110-60030iURJ201200711-201201

main66110-60031iURJ201,VDJ201201512

66120GHINGE ASSY, TAIL GATE, LH

main66120-60020iURJ201200711-201201

main66120-60021iURJ201,VDJ201201512

67281FSTOPPER, BACK DOOR, LOWER

main67281-60040×2iURJ201200711-201201

67290DAMPER ASSY, BACK DOOR

main67028-60010iURJ201200711-201201

67293ACUSHION, BACK DOOR STOPPER

main67293-60050×2iURJ201200711-201201

68810DHINGE ASSY, BACK DOOR, RH

main68810-28040iURJ201200711-201201

sub68810-28041

main68810-60020iURJ201,VDJ201201509-201511

PAD T=1.0

main68810-60021iURJ201,VDJ201201512

PAD T=1.0

main68810-60030iURJ201,VDJ201201509-201511

PAD T=1.5

main68810-60031iURJ201,VDJ201201512

PAD T=1.5

main68810-60040iURJ201,VDJ201201509-201511

PAD T=2.0

main68810-60041iURJ201,VDJ201201512

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-28040iURJ201200711-201201

sub68810-28041

main68810-60020iURJ201,VDJ201201509-201511

PAD T=1.0

main68810-60021iURJ201,VDJ201201512

PAD T=1.0

main68810-60030iURJ201,VDJ201201509-201511

PAD T=1.5

main68810-60031iURJ201,VDJ201201512

PAD T=1.5

main68810-60040iURJ201,VDJ201201509-201511

PAD T=2.0

main68810-60041iURJ201,VDJ201201512

PAD T=2.0

68846BGUIDE, BACK DOOR TORSION BAR

main68846-60010iURJ201,VDJ201201509

68870BAR ASSY, BACK DOOR LOWER TORSION

main68870-60021iURJ201,VDJ201202002

main68870-60050iURJ201200711-201201

main68870-60051iURJ201,VDJ201202001-202002

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-60010iURJ201,VDJ201201509

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-60010iURJ201,VDJ201201509

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WB00iURJ201..GCC201509-201609

TAILGATE DOOR EASY CLOSER-WITH

main68950-0WB01supersedes 68950-0WA91iURJ201..GCC201610

TAILGATE DOOR EASY CLOSER-WITH

main68950-69165supersedes 68950-69155iURJ201..CHI200907-201201

WITH(POWER BACK DOOR)

main68950-69215supersedes 68950-69205iURJ201..GCC201207-201509

TAILGATE DOOR EASY CLOSER-WITH

main68950-69105supersedes 68950-69095iURJ201200711-200907

WITH(POWER BACK DOOR)

68960STAY ASSY, BACK DOOR, LH

main68960-0WB00iURJ201..GCC201509-201609

TAILGATE DOOR EASY CLOSER-WITH

main68960-0WB01supersedes 68960-0WA91iURJ201..GCC201610

TAILGATE DOOR EASY CLOSER-WITH

main68960-69125supersedes 68960-69115iURJ201..CHI200907-201201

WITH(POWER BACK DOOR)

main68960-69165supersedes 68960-69155iURJ201..GCC201207-201509

TAILGATE DOOR EASY CLOSER-WITH

main68960-69065supersedes 68960-69055iURJ201200711-200907

WITH(POWER BACK DOOR)

68961BOLT, BACK DOOR STAY

main68961-12050×2iURJ201,VDJ201201509

69195GRIP, BACK DOOR

main69195-60010iURJ201200711-200806

main69195-60011iURJ201,VDJ201201509

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-60040iURJ201,VDJ201201509

69299GROMMET, BACK DOOR HANDLE

main69299-60010iURJ201,VDJ201201509

69321COVER, BACK DOOR LOCK

main69321-60010iURJ201200711-201201

main69321-60030iURJ201,VDJ201201509

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-60150supersedes 69350-60140iURJ201..CHI200907-201201

sub69350-60151

main69350-60190iURJ201..GCC201509-201511

TAILGATE DOOR EASY CLOSER-WITH

main69350-60191supersedes 69350-60200iURJ201..GCC201512

TAILGATE DOOR EASY CLOSER-WITH

69358PROTECTOR, BACK DOOR LOCK

main69358-60030iURJ201..CHI200907-201201

69380ALOCK ASSY, TAIL GATE, LOWER RH

main69380-60070supersedes 69380-60060iURJ201..GCC201201-201509

TAILGATE DOOR EASY CLOSER-WITH

main69380-60071supersedes 69380-60061iURJ201..GCC201512

TAILGATE DOOR EASY CLOSER-WITH

69390ALOCK ASSY, TAIL GATE, LOWER LH

main69390-60060supersedes 69390-60050iURJ201..CHI200907-201201

main69390-60061supersedes 69390-60051iURJ201..GCC201512

TAILGATE DOOR EASY CLOSER-WITH

69431ASTRIKER, REAR SWING GATE LOCK

main69431-60010iURJ201200711-201201

69450CSTRIKER ASSY, BACK DOOR LOCK, RH

main69450-60040iURJ201200711-201201

69460BSTRIKER ASSY, BACK DOOR LOCK, LH

main69460-60040iURJ201200711-201201

69478CUSHION, BACK DOOR LOWER STOPPER

main69042-60010×2iURJ201200711-200809

main69478-60020×2iURJ20#201201-201509

main69478-60030×2iURJ201200711-200809

WITH(POWER BACK DOOR)

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-60060supersedes 69690-60050iURJ201..CHI200907-201201

6929660010SCREW, DOOR INSIDE HANDLE

main69296-60010

9010508187

main90105-08187

9011906779

main90119-06779

9011906904

main90119-06904

9011906911

main90119-06911

9011908061

main90119-08061

9011908892

main90119-08892

9011908B78

main90119-08B78

9014860033

main90148-60033

9014860073

main90148-60073

9014880040

main90148-80040

9015960072

main90159-60072

9017908096

main90179-08096

9095001690

main90950-01690

91673A0622

main91673-A0622

45 parts on this diagram · 2 diagrams in section
