BACK DOOR PANEL & GLASS

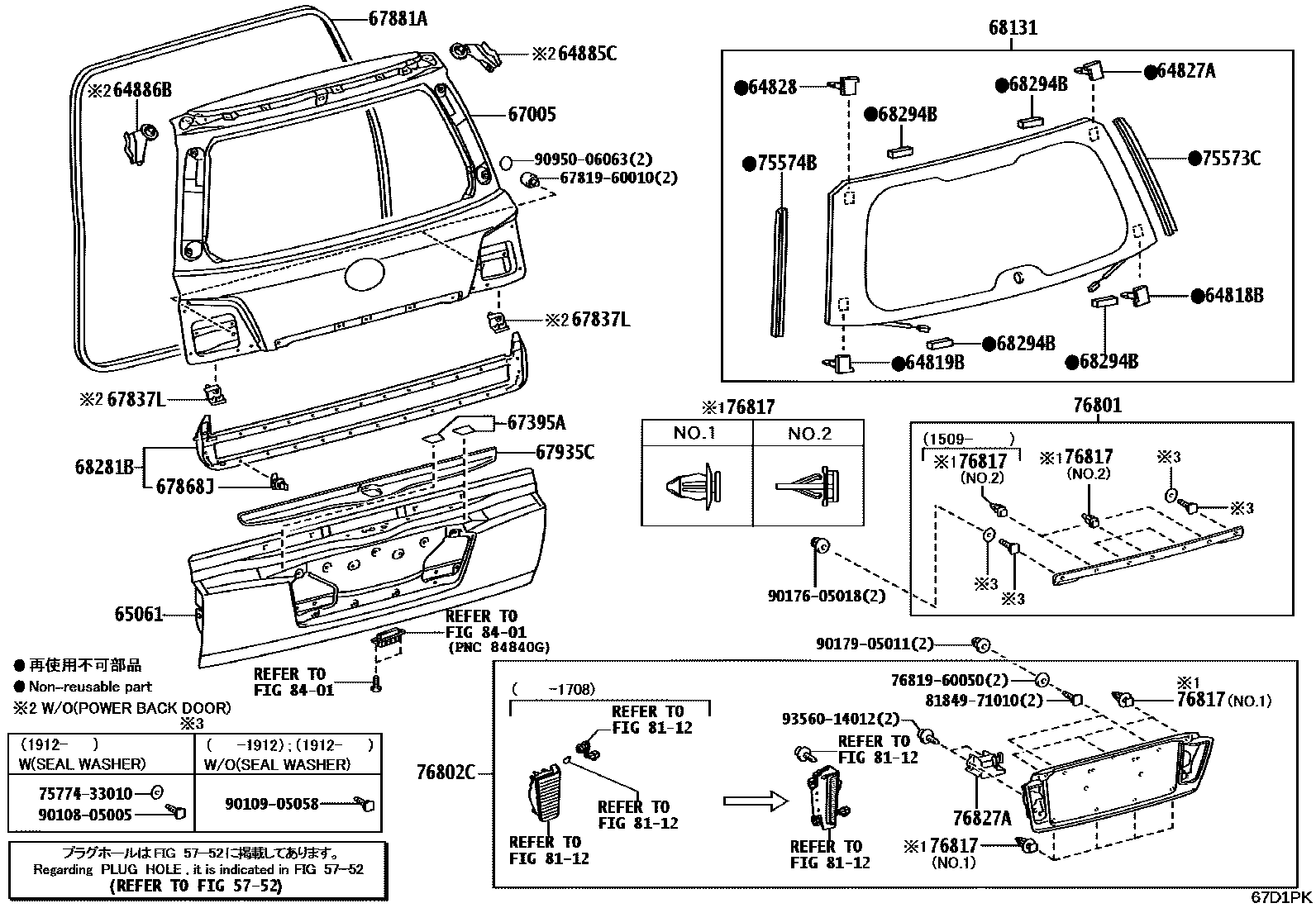

Parts diagram
5752
64818BSPACER, BACK DOOR GLASS, NO.1
main64818-60040i¥360200711-201509
main64818-60070i¥300201509
64819BSPACER, BACK WINDOW GLASS, NO.2
main64819-60040i¥360200711-201509
main64819-60070i¥300201509
64827ACLIP, BACK WINDOW GLASS, RH
main64827-60050i¥360200711-201509
main64827-60110i¥300201509
64828CLIP, BACK WINDOW GLASS, LH
main64828-60050i¥360200711-201509
main64828-60110i¥300201509
64885CCHANNEL, BACK DOOR GLASS, RH
main64885-60030i200711-201509
main64885-60050i201509
64886BCHANNEL, BACK DOOR GLASS, LH
main64886-60030i200711-201509
main64886-60050i201509
65061PANEL SUB-ASSY, TAIL GATE
main65061-60370i¥66,000200711-201502
sub65061-60371¥54,900
main65061-60371i¥54,900201503-201906
sub65061-60372¥45,700
main65061-60372i¥45,700201907
main65061-60480i201509-201906
sub65061-60481
main65061-60481i201907-202006
67005PANEL SUB-ASSY, BACK DOOR
main67005-60D80i¥68,600200711-201509
main67005-60E00i¥68,600200907-201201
main67005-60E00i¥68,600201201-201509
TAILGATE DOOR EASY CLOSER-WITH
main67005-60K60i201509
main67005-60K70i¥63,600201509
TAILGATE DOOR EASY CLOSER-WITH
67395APROTECTOR, BACK DOOR, LOWER
main67395-60040i¥360200712-201509
main67395-60050i¥360200711-200712
67837LSEAL, DOOR DUST PROOF
main67837-60050i¥170200711-201509
67868JRETAINER, DOOR WEATHERSTRIP
main67867-12150i¥100200711-201509
PINK
main90467-04034i¥60201112-201509
WHITE
67881AWEATHERSTRIP, BACK DOOR
main67881-60120i¥9,500200711-201509
main67881-60150i¥13,900201509-201511
TAILGATE DOOR EASY CLOSER-WITH
sub67881-60120¥9,500
67935CGARNISH, BACK DOOR
main67930-60050i¥3,490200711-201509
68131GLASS, BACK DOOR
main68105-60150i200711-200808
*UVCT,T=3.5,GREEN,SIDE GLASS-FRONT DOOR GLASS=LAMINETED & GREEN
sub68105-60151
main68105-60150i200711-200808
*UVCT,T=3.5,GREEN
sub68105-60151
main68105-60150i200711-200808
*UVCT,T=3.5,GREEN,WITH(POWER BACK DOOR)&SIDE GLASS-FRONT DOOR GLASS=LAMINETED & GREEN
sub68105-60151
main68105-60151i200809-200907
*UVCT,T=3.5,GREEN
main68105-60151i200809-200907
*UVCT,T=3.5,GREEN,SIDE GLASS-FRONT DOOR GLASS=LAMINETED & GREEN
main68105-60151i200809-200907
*UVCT,T=3.5,GREEN,WITH(POWER BACK DOOR)&SIDE GLASS-FRONT DOOR GLASS=LAMINETED & GREEN
main68105-60180i200711-200808
*TEM,T=3.5,DK.GREEN
sub68105-60181¥72,400
main68105-60180i200711-200808
*TEM,T=3.5,DK.GREEN,WITH(POWER BACK DOOR)&SIDE GLASS-FRONT DOOR GLASS=LAMINATED &PRIVACY
sub68105-60181¥72,400
main68105-60180i200711-200808
*TEM,T=3.5,DK.GREEN,SIDE GLASS-FRONT DOOR GLASS=LAMINATED & PRIVACY
sub68105-60181¥72,400
main68105-60181i¥72,400200809-200907
*TEM,T=3.5,DK.GREEN,WITH(POWER BACK DOOR)&SIDE GLASS-FRONT DOOR GLASS=LAMINATED &PRIVACY
main68105-60181i¥72,400200809-200907
*TEM,T=3.5,DK.GREEN
main68105-60181i¥72,400200809-200907
*TEM,T=3.5,DK.GREEN,SIDE GLASS-FRONT DOOR GLASS=LAMINATED & PRIVACY
main68105-60290i200907-201201
*UVCEHT,T=3.1,GREEN
main68105-60290i200907-201201
*UVCEHT,T=3.1,GREEN,SIDE GLASS-FRONT DOOR GLASS=LAMINETED & GREEN
main68105-60300i¥78,900200907-201201
*EHT,T=3.1,DK.GRAY
main68105-60300i¥78,900200907-201201
*EHT,T=3.1,DK.GRAY,WITH(POWER BACK DOOR)&SIDE GLASS-FRONT DOOR GLASS=LAMINATED & PRIVACY
main68105-60300i¥78,900200907-201201
*EHT,T=3.1,DK.GRAY,SIDE GLASS-FRONT DOOR GLASS=LAMINATED & PRIVACY
main68105-60320i¥64,400201509
main68105-60400i201201-201509
*UVCEHT,T=3.1,GREEN
main68105-60410i¥94,600201201-201509
*EHT,T=3.1,DK.GRAY,SIDE GLASS-GREEN & PRIVACY(FRONT DOOR=LAMINETED)&TAILGATE DOOREASY CLOSER-WITH
main68105-60410i¥94,600201201-201509
*EHT,T=3.1,DK.GRAY
main68105-60410i¥94,600201201-201509
*EHT,T=3.1,DK.GRAY,SIDE GLASS-GREEN & PRIVACY(FRONT DOOR=LAMINETED)
68281BWEATHERSTRIP, LIFT GATE
main68281-60030i¥3,620200711-201509
main68281-60050i¥5,300201509-201511
TAILGATE DOOR EASY CLOSER-WITH
68294BDAM, BACK DOOR GLASS ADHESIVE
main68294-26030i¥200200711-201509
75573CMOULDING, BACK WINDOW, OUTSIDE
main75573-60080i¥1,620200711-201509
main75573-60120i¥1,120201509
75574BMOULDING, BACK WINDOW, OUTSIDE LH
main75574-60030i¥1,620200711-201509
main75574-60050i¥1,120201509
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
main76801-60130i¥15,100200711-201509
PLATED
main76801-60370i¥12,700201509
76802CGARNISH SUB-ASSY, BACK DOOR, OUTSIDE NO.2
main76802-60030-A0i200711-201509
WHITE PEARL CS.,077
sub76802-60030¥71,100
main76802-60030-B0i200711-201301
PREMIUM SILVER,1F2
sub76802-60030¥71,100
main76802-60030-B1i200711-201201
GRAY M.M.,1G8
sub76802-60030¥71,100
main76802-60030-B2i201201-201509
MERCURY GRAY MC.,1H9
sub76802-60030¥71,100
main76802-60030-B3i201301-201509
PLATINUM SILVER ME.,1J4
sub76802-60030¥71,100
main76802-60030-C0i200711-201509
BLACK,202
sub76802-60030¥71,100
main76802-60030-C1i201008-201509
STARLIGHT BLACK GF.,217
sub76802-60030¥71,100
main76802-60030-D0i200711-201301
DK.RED MC.CS.,3R7
sub76802-60030¥71,100
main76802-60030-D1i201301-201408
GARNET RED MC.,3S0
sub76802-60030¥71,100
main76802-60030-E0i200711-201201
BEIGE ME.,4T1
sub76802-60030¥71,100
main76802-60030-E1i201201-201509
SLEEK ECRU ME.,4U7
sub76802-60030¥71,100
main76802-60030-J0i200711-201004
BLUE M.M.,8U4
sub76802-60030¥71,100
main76802-60140-A0i201509-201708
WHITE PEARL CS.,077
main76802-60140-B0i201509-201708
MERCURY GRAY MC.,1H9
main76802-60140-B1i201509-201708
SONIC TITANIUM,1J7
main76802-60140-C0i201509-201708
BLACK,202
main76802-60140-C1i201509-201708
STARLIGHT BLACK GF.,217
main76802-60140-E0i201509-201708
SLEEK ECRU ME.,4U7
main76802-60140-J0i201509-201708
DEEP BLUE MC.,8X5
main76802-60170-A0i201509-201708
WHITE PEARL CS.,077
main76802-60170-B0i201509-201708
MERCURY GRAY MC.,1H9
main76802-60170-B1i201509-201708
SONIC TITANIUM,1J7
main76802-60170-C0i201509-201708
BLACK,202
main76802-60170-C1i201509-201708
STARLIGHT BLACK GF.,217
main76802-60170-E0i201509-201708
SLEEK ECRU ME.,4U7
main76802-60170-J0i201509-201708
DEEP BLUE MC.,8X5
main76802-60200-A1i201708
SONIC QUARTZ,085
main76802-60200-B0i201708-202008
MERCURY GRAY MC.,1H9
main76802-60200-B1i201708
SONIC TITANIUM,1J7
main76802-60200-C0i201708
BLACK,202
main76802-60200-C1i201708
STARLIGHT BLACK GF.,217
main76802-60200-E0i201708-201912
SLEEK ECRU ME.,4U7
main76802-60200-G0i202008
TERRANE KHAKI M.M.,6X4
main76802-60200-J0i201708-202101
DEEP BLUE MC.,8X5
main76802-60220-A1i201708-202006
SONIC QUARTZ,085
main76802-60220-B0i201708-202006
MERCURY GRAY MC.,1H9
main76802-60220-B1i201708-202006
SONIC TITANIUM,1J7
main76802-60220-C0i201708-202006
BLACK,202
main76802-60220-C1i201708-202006
STARLIGHT BLACK GF.,217
main76802-60220-E0i201708-202006
SLEEK ECRU ME.,4U7
main76802-60220-J0i201708-202006
DEEP BLUE MC.,8X5
76817CLIP, BACK DOOR OUTSIDE GARNISH
main76817-60040i200711-201006
NO.2:REFER ILLUST.
sub76817-60080¥70
main76817-60080i¥70201007-201509
NO.2:REFER ILLUST.
main76817-68010i¥130200711-201708
NO.1:REFER ILLUST.
main90467-09206i¥80201509
NO.2:REFER ILLUST.
main90467-09206i¥80201708
NO.1:REFER ILLUST.
76827ARETAINER, BACK DOOR GARNISH, NO.2
main76827-60030i¥500200711-201708
main76827-60080i¥380201708
8112
8401
6781960010PAD, BACK DOOR OUTSIDE PANEL
main67819-60010¥180
7577433010PANEL, REAR DOOR OUTER SIDE FINISH, LH
main75774-33010¥100
7681960050SEAL, BACK DOOR OUTSIDE GARNISH
main76819-60050¥470
8184971010
main81849-71010¥70
9010805005
main90108-05005¥70
9010905058
main90109-05058¥90
9017605018
main90176-05018¥70
9017905011
main90179-05011¥80
9095006063
main90950-06063¥120
9356014012
main93560-14012¥70

35 parts on this diagram · 2 diagrams in section
