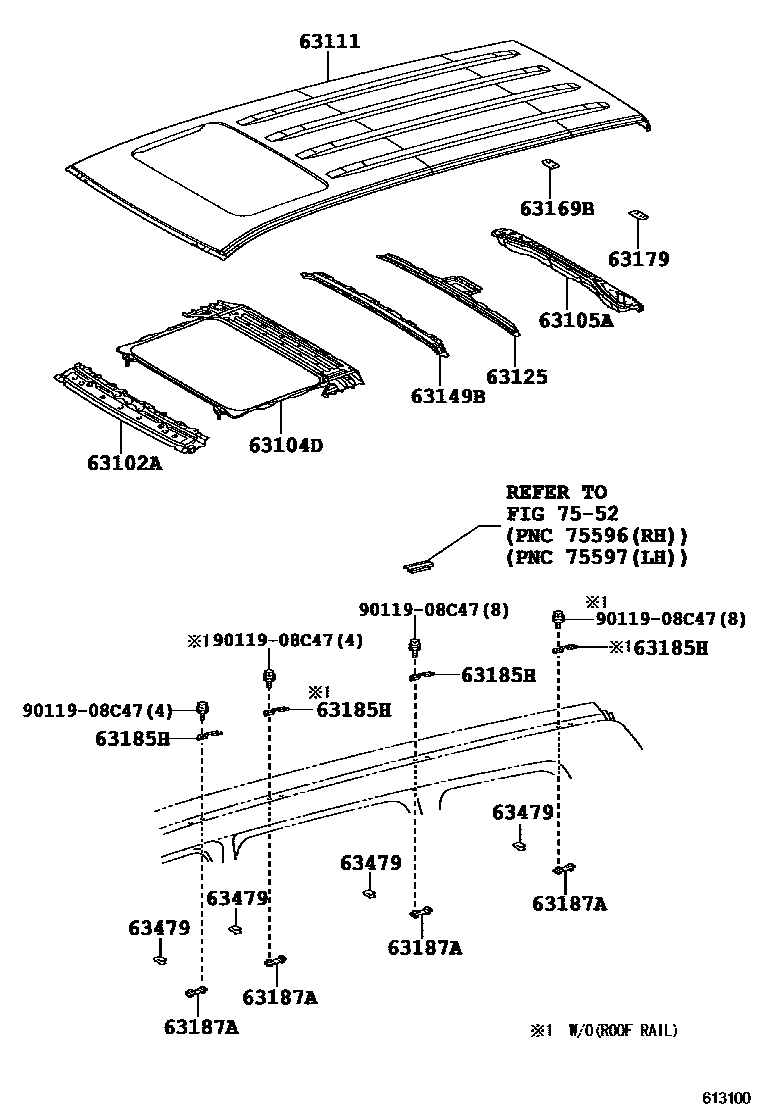

ROOF PANEL & BACK PANEL
63102APANEL SUB-ASSY, WINDSHIELD HEADER
MOON ROOF-WITH(REMOTE CONTROL)
63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
SOUTH AFRICA SPEC&MOON ROOF-WITH(REMOTE CONTROL)
INDIA SPEC&MOON ROOF-WITH(REMOTE CONTROL)
MOON ROOF-WITH(REMOTE CONTROL)
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63111PANEL, ROOF
MOON ROOF-WITH(REMOTE CONTROL)
SOUTH AFRICA SPEC&MOON ROOF-WITH(REMOTE CONTROL)
INDIA SPEC&MOON ROOF-WITH(REMOTE CONTROL)
63125REINFORCEMENT, ROOF PANEL, NO.2
63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR
MOON ROOF-WITH(REMOTE CONTROL)
SOUTH AFRICA SPEC&MOON ROOF-WITH(REMOTE CONTROL)
INDIA SPEC&MOON ROOF-WITH(REMOTE CONTROL)
63169BPLATE, ROOF PANEL REINFORCEMENT, RH
63179PLATE, ROOF PANEL REINFORCEMENT, LH
63185HBRACKET, ROOF RACK
ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)
ROOF RACK-WITHOUT
63187ABRACKET, ROOF RACK, REAR
ROOF RACK-WITHOUT
63479RETAINER, ROOF INNER RACK
ROOF RACK-WITHOUT
7552
9011908C47
main90119-08C47
13 parts on this diagram · 6 diagrams in section
