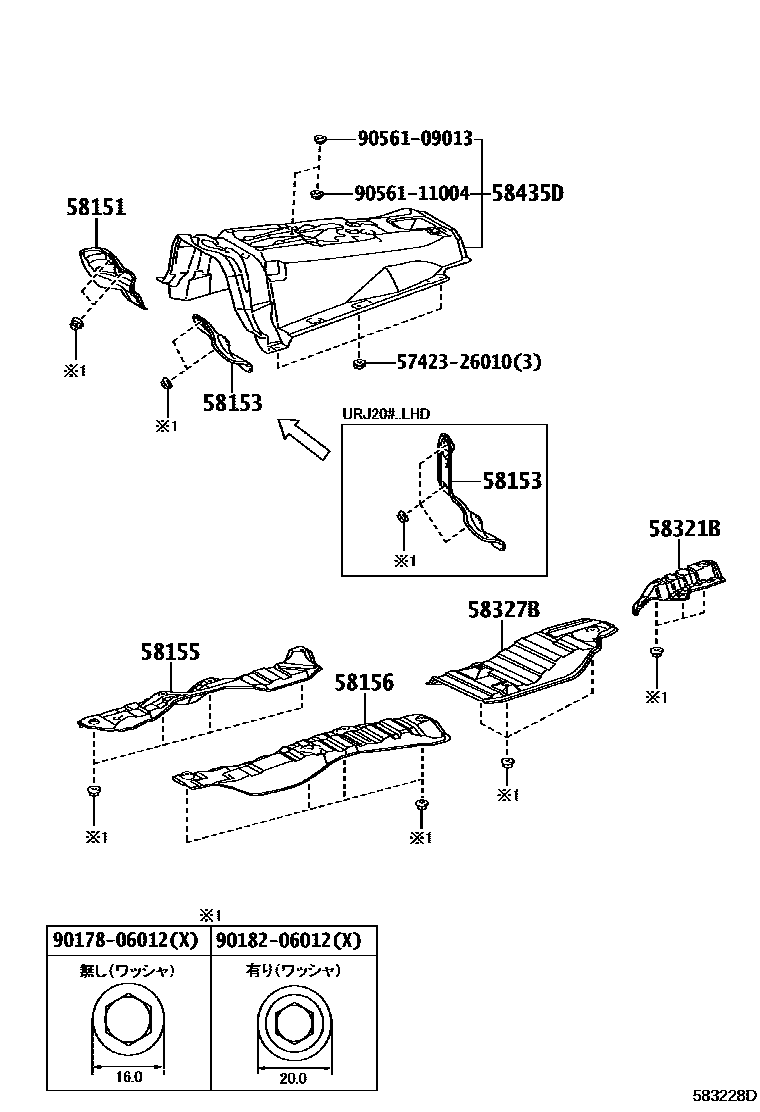

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-60110iURJ201,VDJ201200711-201807

sub58151-60111

main58151-60111iURJ201,VDJ201201808

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-60090iURJ201..ARL200711-201201

main58153-60100iURJ201..LHD200711-201807

sub58153-60101

main58153-60101iURJ201..GCC201808

main58153-60110iURJ201..CHI201201-201509

EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD)

sub58153-60111

main58153-60110iURJ201..GCC201509-201807

EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(OBD)

sub58153-60111

main58153-60110iURJ201..CHI201509-201807

sub58153-60111

main58153-60111iURJ201..GCC202008

EXHAUST EMISSION CONTROL-EUROPE STEP6, WITH(OBD)

main58153-60111iURJ201..GCC201808

EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(OBD)

main58153-60111iURJ201..CHI201808-202006

main58153-60120iURJ20#..ARL201201-201806

sub58153-60121

main58153-60121iVDJ201;URJ201..ARL201807

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-60060iURJ201200711-201111

sub58155-60061

main58155-60061iURJ201201112-201902

main58155-60062iURJ201,VDJ201201902

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-60020iURJ201200711-201109

sub58156-60021

main58156-60021iURJ201201109-201112

sub58156-60022

main58156-60022iURJ201201112-201902

main58156-60023iURJ201,VDJ201201902

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-60060iURJ201200711-201901

sub58321-60061

main58321-60061iURJ201,VDJ201201902

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-60090iURJ201200711-201709

sub58327-60091

main58327-60091iURJ201,VDJ201201710

58435DSILENCER, FRONT FLOOR, CENTER

main58563-60050iURJ201200711-201611

main58563-60070iURJ201,VDJ201201611

5742326010BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-26010

9017806012

main90178-06012

9018206012

main90182-06012

9056109013

main90561-09013

9056111004

main90561-11004

12 parts on this diagram · 1 diagram in section
