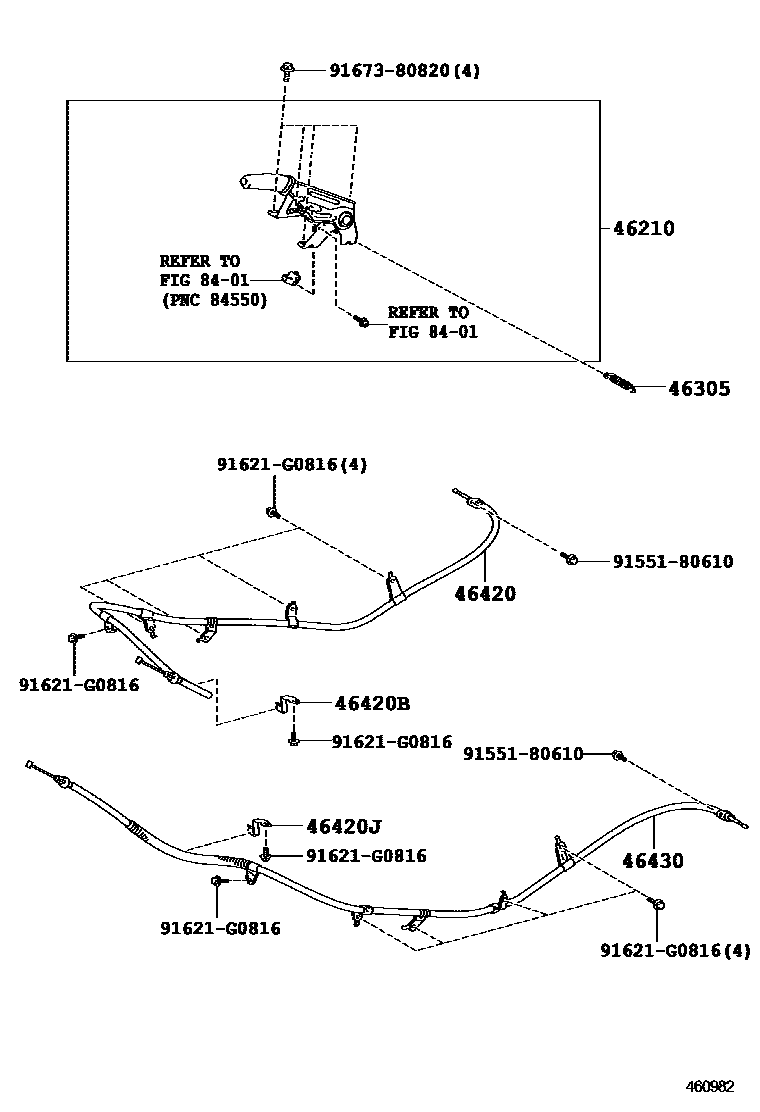

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1

46210LEVER ASSY, PARKING BRAKE

main46210-60330-C0iURJ201..CHI201201-201509

BLACK,TRIM2#,4#,5#

main46210-60330-C0iURJ201..LHD200711-201201

BLACK,TRIM1#,2#

main46210-60330-C0iURJ201..CHI201201-201509

BLACK,TRIM2#,3#,4#,5#

main46210-60330-E0iURJ201..LHD200711-201201

DK. BROWN,TRIM0#

main46210-60330-E1iURJ201..LHD201201-201509

ORCHID BROWN,TRIM0#

main46210-60340-C0iURJ201..ARL200711-201201

BLACK,TRIM1#,2#

main46210-60340-C0iURJ20#..ARL201201-201509

BLACK,TRIM2#,5#

main46210-60340-E0iURJ201..ARL200711-201201

DK. BROWN,TRIM0#

main46210-60340-E1iURJ20#..ARL201201-201509

ORCHID BROWN,TRIM0#

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-60010iURJ201200711-201509

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-60090iURJ201200711-201509

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46421-60050iURJ201200711-201509

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46431-60050iURJ201200711-201509

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-60030iURJ201200711-201509

8401

9155180610

main91551-80610

91621G0816

main91621-G0816

9167380820

main91673-80820

10 parts on this diagram · 5 diagrams in section
