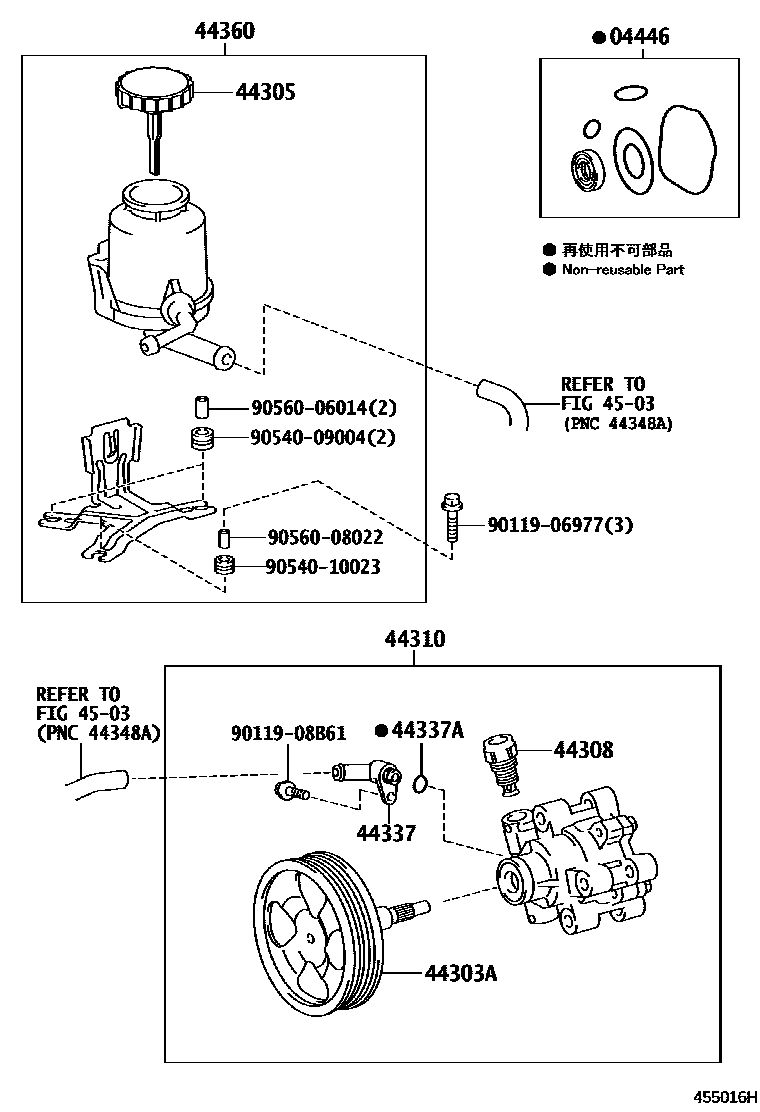

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-60260iURJ201200711-201509

main04446-60271iVDJ201201509

main04446-60310iURJ201201509-201512

sub04446-60311

main04446-60311iURJ201201512

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-60030iURJ201200711-201509

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-37020iURJ201200711-200802

sub44305-37030

main44305-37030iURJ201200803-201205

sub44305-37031

main44305-37031iURJ20#201206-201509

44308UNION SUB-ASSY, PRESSURE PORT

main44308-60170iURJ201200711-201112

main44308-60220iURJ201201112-201509

44310PUMP ASSY, VANE

main44310-60490iURJ20#..ARL,CHI200711-201509

main44310-60520iURJ201..GCC200711-201509

main44310-60620iVDJ201..ARL201509-202002

sub44310-60621

main44310-60621iVDJ201..ARL202003

main44310-60630iURJ201..ARL,CHI201509-202002

sub44310-60631

main44310-60631iURJ201..ARL,CHI202003

main44310-60640iURJ201..GCC201509-202002

sub44310-60641

main44310-60641iURJ201..GCC202003

main44310-60650iVDJ201..GCC201509-202002

sub44310-60651

main44310-60651iVDJ201..GCC202003

44337UNION, POWER STEERING SUCTION PORT

main44337-60220iURJ201200711-201509

main44337-60230iVDJ201201509

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-15025iURJ201200711-201509

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60290iURJ201200711-201205

sub44360-60291

main44360-60291iURJ20#201206-201509

main44360-60301iVDJ201201509

4503

9011906977

main90119-06977

9011908B61

main90119-08B61

9054009004

main90540-09004

9054010023

main90540-10023

9056006014

main90560-06014

9056008022

main90560-08022

15 parts on this diagram · 3 diagrams in section
