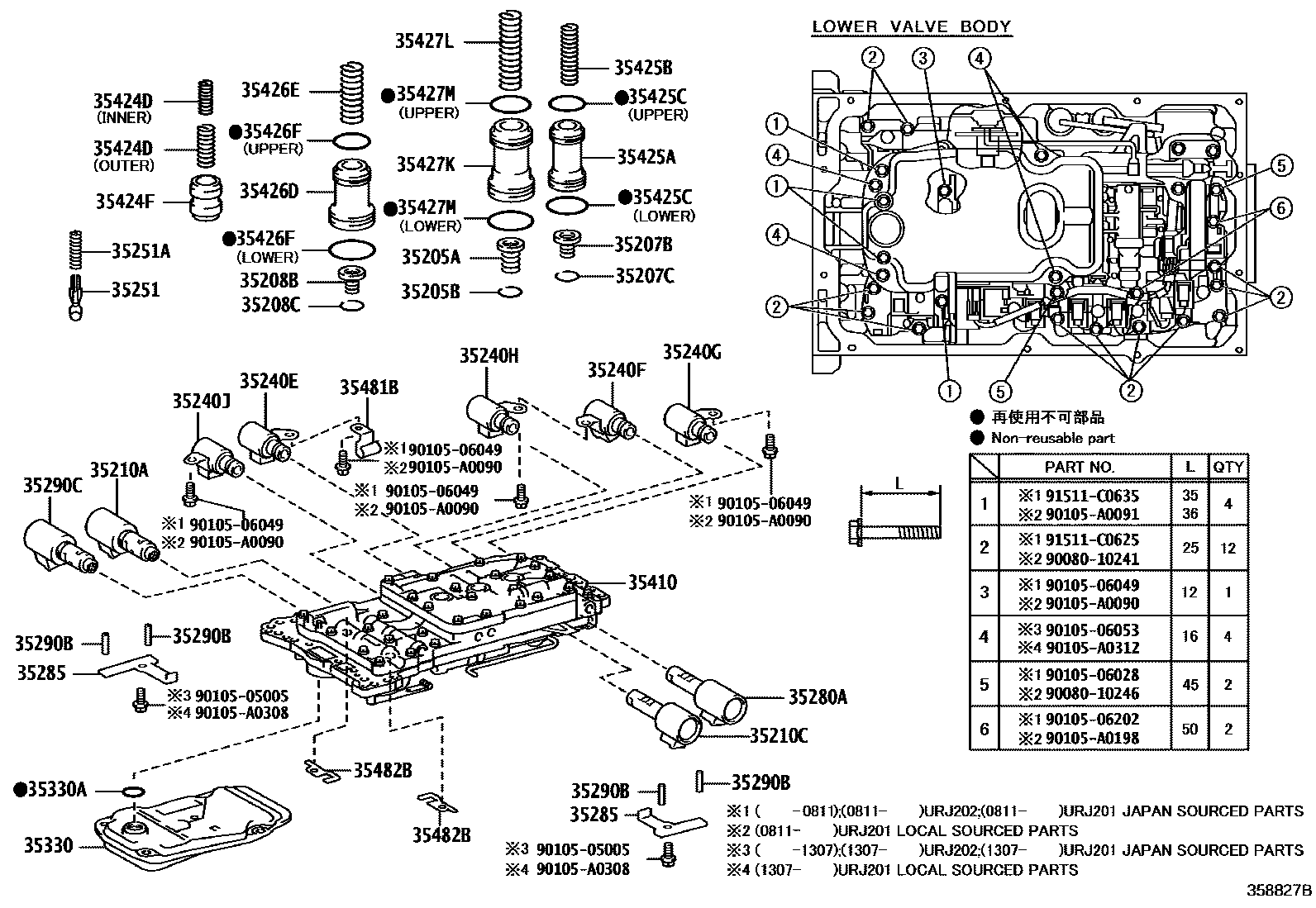

VALVE BODY & OIL STRAINER (ATM)
35205ASPRING SUB-ASSY, B-3 ACCUMULATOR
35205BRING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING)
35207BSPRING SUB-ASSY, C-2 ACCUMULATOR
35207CRING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35208BSPRING SUB-ASSY, C-3 ACCUMULATOR
35208CRING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING)
35210AVALVE, SOLENOID(SL1)
35240EVALVE, SOLENOID(S1)
35240FVALVE, SOLENOID(S2)
35240GVALVE, SOLENOID(S3)
35240HVALVE, SOLENOID(S4)
35240JVALVE, SOLENOID(SR)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
(J)
(L)
35285PLATE, SOLENOID LOCK
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)
(J)
(L)
35330STRAINER ASSY, VALVE BODY OIL
(L),NO MARK
(L),MARK=5
(J),NO MARK
(J),MARK=5
35330ARING, O (FOR OIL STRAINER)
35410BODY ASSY, TRANSMISSION VALVE
TYPE B:REFER 35-01
sub35410-60591
sub35410-60641
sub35410-60690
TYPE A:REFER 35-01
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
INNER
(J),INNER
(J),OUTER
OUTER
(L),INNER
(L),OUTER
35424FVALVE, C-1 ACCUMULATOR
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
(J)
(L)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
UPPER
LOWER
35426DPISTON, C-3 ACCUMULATOR
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
(J)
(L)
35426FRING, O (FOR C-3 ACCUMULATOR PISTON)
UPPER
LOWER
35427KPISTON, B-3 ACCUMULATOR
35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
(J)
(L)
35427MRING, O (FOR B-3 ACCUMULATOR PISTON)
UPPER
LOWER
9008010241
main90080-10241
9008010246
main90080-10246
9010505005
main90105-05005
9010506028
main90105-06028
9010506049
main90105-06049
9010506053
main90105-06053
9010506202
main90105-06202
90105A0090
main90105-A0090
90105A0091
main90105-A0091
90105A0198
main90105-A0198
90105A0308
main90105-A0308
90105A0312
main90105-A0312
91511C0625
main91511-C0625
91511C0635
main91511-C0635
49 parts on this diagram · 4 diagrams in section
