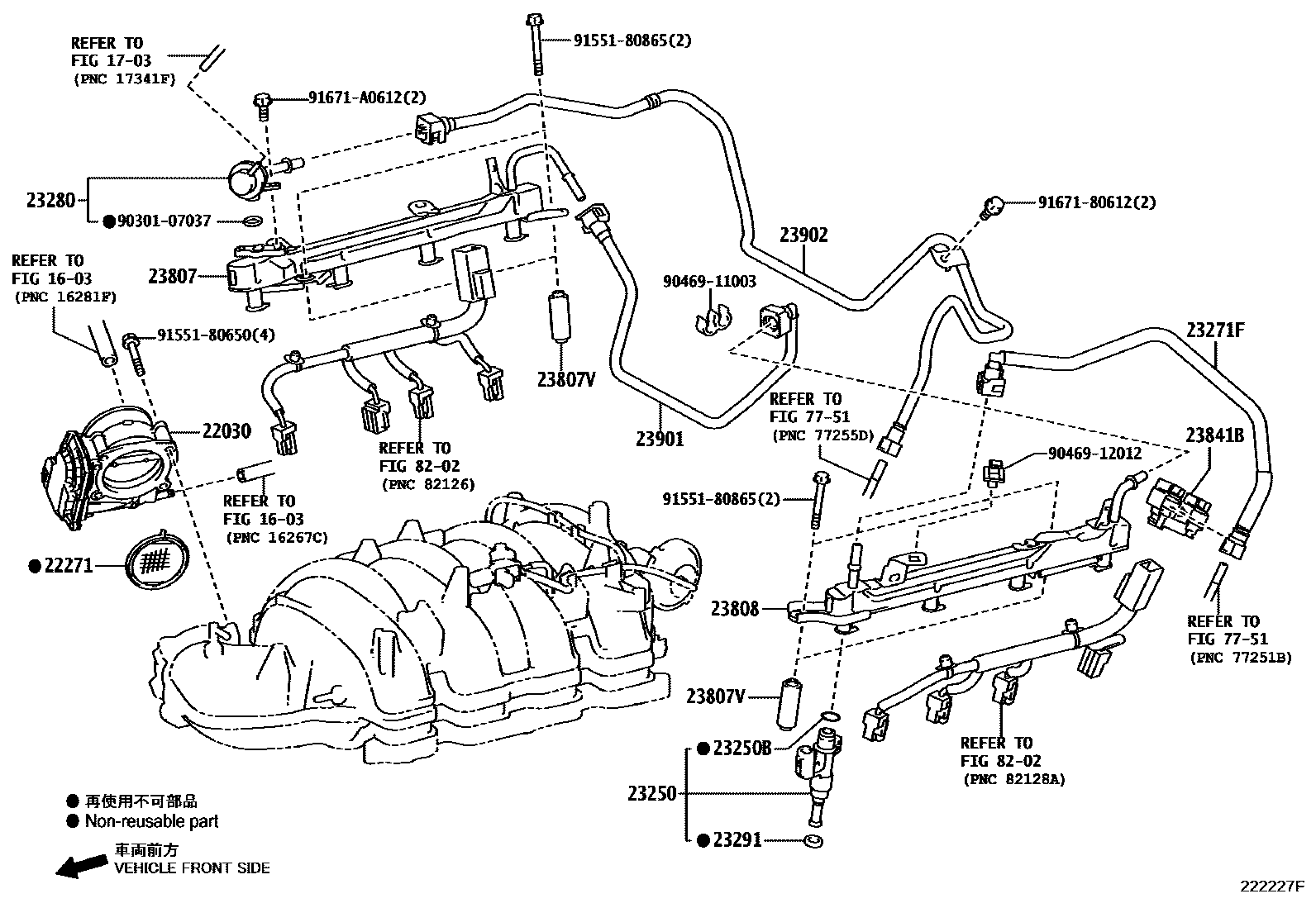

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603

1703

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-38020i3URFE..URJ201201201-201509

main22030-38041i1URFE..URJ202201201-201509

22271GASKET, THROTTLE BODY

main22271-38010i3URFE..URJ201201509

main22271-50050i1URFE..URJ202201201-201509

23250INJECTOR ASSY, FUEL

main23209-39165×8i3URFE..URJ201200711-201201

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×8i3URFE..URJ201200711-201201

23271FHOSE, FUEL

main23271-38050i3URFE..URJ201200711-201201

23280REGULATOR ASSY, FUEL PRESSURE

main23280-38010i3URFE..URJ201200711-201201

main23280-38011i3URFE..URJ201201203-201509

main23280-38060i1URFE..URJ202201201-201206

main23280-38061i1URFE..URJ202201206-201509

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×8i3URFE..URJ201200711-201201

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-38030i3URFE..URJ201200711-200903

main23814-38031i3URFE..URJ201200903-201201

main23814-38032i3URFE..URJ201201204-201509

main23814-38130i1URFE..URJ202201201-201205

main23814-38131i1URFE..URJ202201205-201509

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-38020×4i1URFE,3URFE..URJ20#201201-201509

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23808-38020i1URFE..URJ202201201-201205

main23808-38021i1URFE..URJ202201205-201509

main23815-38010i3URFE..URJ201200711-201201

main23815-38011i3URFE..URJ201201204-201509

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-50020i3URFE..URJ201200711-201201

23901TUBE SUB-ASSY, FUEL

main23901-38010i3URFE..URJ201200711-200903

main23901-38011i3URFE..URJ201200903-201201

main23901-38040i1URFE..URJ202201201-201509

23902TUBE SUB-ASSY, FUEL

main23902-38010i3URFE..URJ201200711-200903

main23902-38011i3URFE..URJ201200903-201201

main23902-38060i1URFE..URJ202201201-201509

7751

8202

9030107037

main90301-07037

9046911003

main90469-11003

9046912012

main90469-12012

9155180650

main91551-80650

9155180865

main91551-80865

9167180612

main91671-80612

91671A0612

main91671-A0612

24 parts on this diagram · 3 diagrams in section
