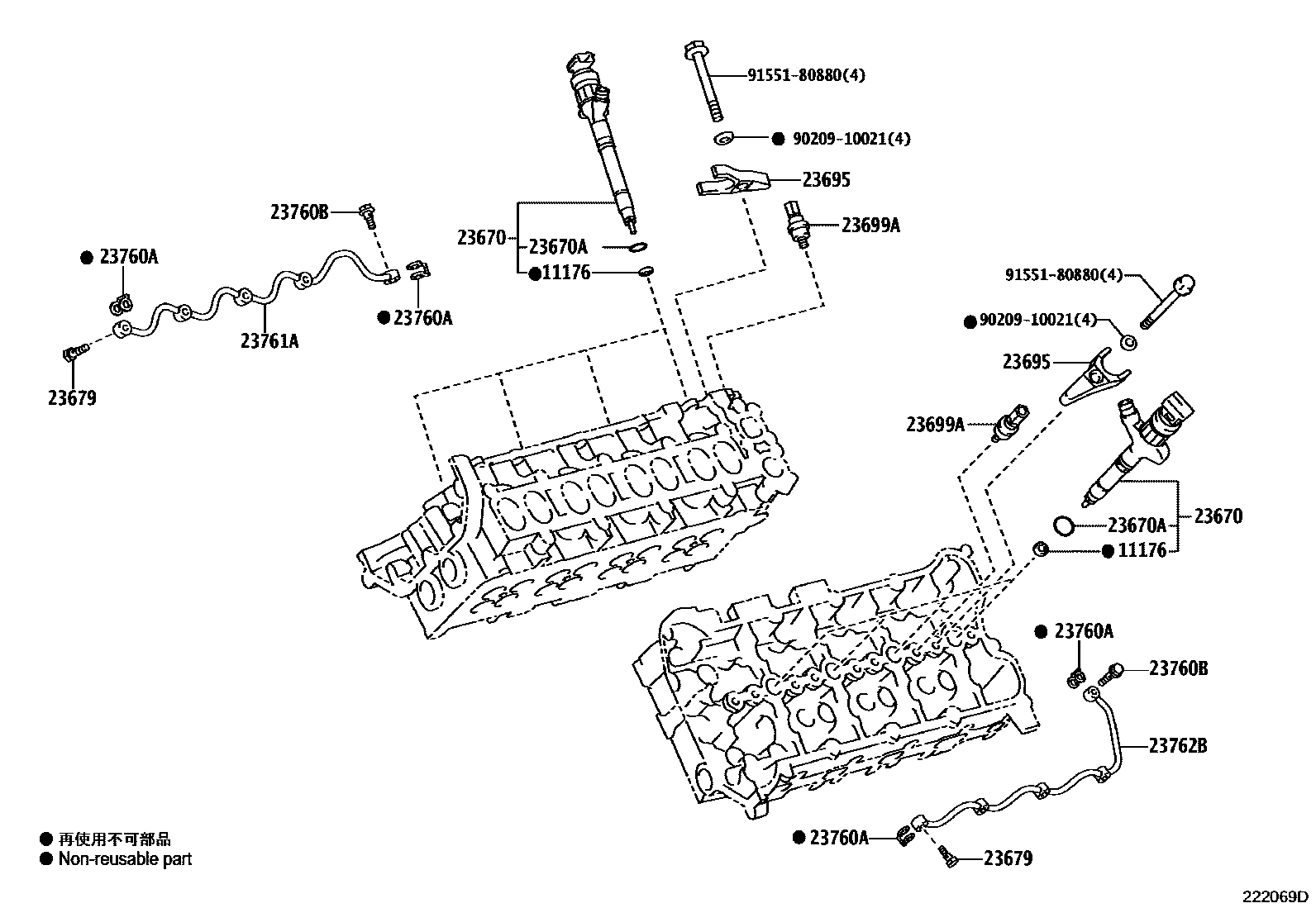

INJECTION NOZZLE

0001 1EXCEPT EUROPE STEP5 0002 1EUROPE STEP5

11176SEAT, INJECTION NOZZLE

main11176-26020i1VDFTV..VDJ201¥300201509

23670INJECTOR ASSY

main23670-59037i1VDFTV..VDJ201..ARL¥0201509-201908

SOUTH AFRICA SPEC

main23670-59038i1VDFTV..VDJ201..GCC201908

SOUTH AFRICA SPEC

main23670-59045i1VDFTV..VDJ201..ARL¥56,000201509

23670ARING, O(FOR INJECTOR ASSY)

main96721-19017i1VDFTV..VDJ201¥160201509

23679SCREW, INJECTOR FOLLOW

main23679-51010i1VDFTV..VDJ201¥340201509

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0R012i1VDFTV..VDJ201..GCC¥0201509-201909

SOUTH AFRICA SPEC

main23695-26020i1VDFTV..VDJ201..ARL201509

main23695-51020i1VDFTV..VDJ201..GCC201910

SOUTH AFRICA SPEC

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-26010i1VDFTV..VDJ201..GCC¥280201509

SOUTH AFRICA SPEC

main23699-26030i1VDFTV..VDJ201..ARL201509

23760AGASKET

main90904-30008i1VDFTV..VDJ201..ARL¥360201509

SOUTH AFRICA SPEC

23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)

main90401-08016i1VDFTV..VDJ201..ARL¥260201509

SOUTH AFRICA SPEC

23761APIPE, NOZZLE LEAKAGE, NO.1

main23761-51010i1VDFTV..VDJ201..GCC¥2,810201509

SOUTH AFRICA SPEC

main23761-51020i1VDFTV..VDJ201..ARL201509

23762BPIPE, NOZZLE LEAKAGE, NO.2

main23762-51010i1VDFTV..VDJ201..GCC¥2,810201509

SOUTH AFRICA SPEC

main23762-51020i1VDFTV..VDJ201..ARL201509

9020910021

main90209-10021¥90

9155180880

main91551-80880¥120

12 parts on this diagram · 2 diagrams in section
