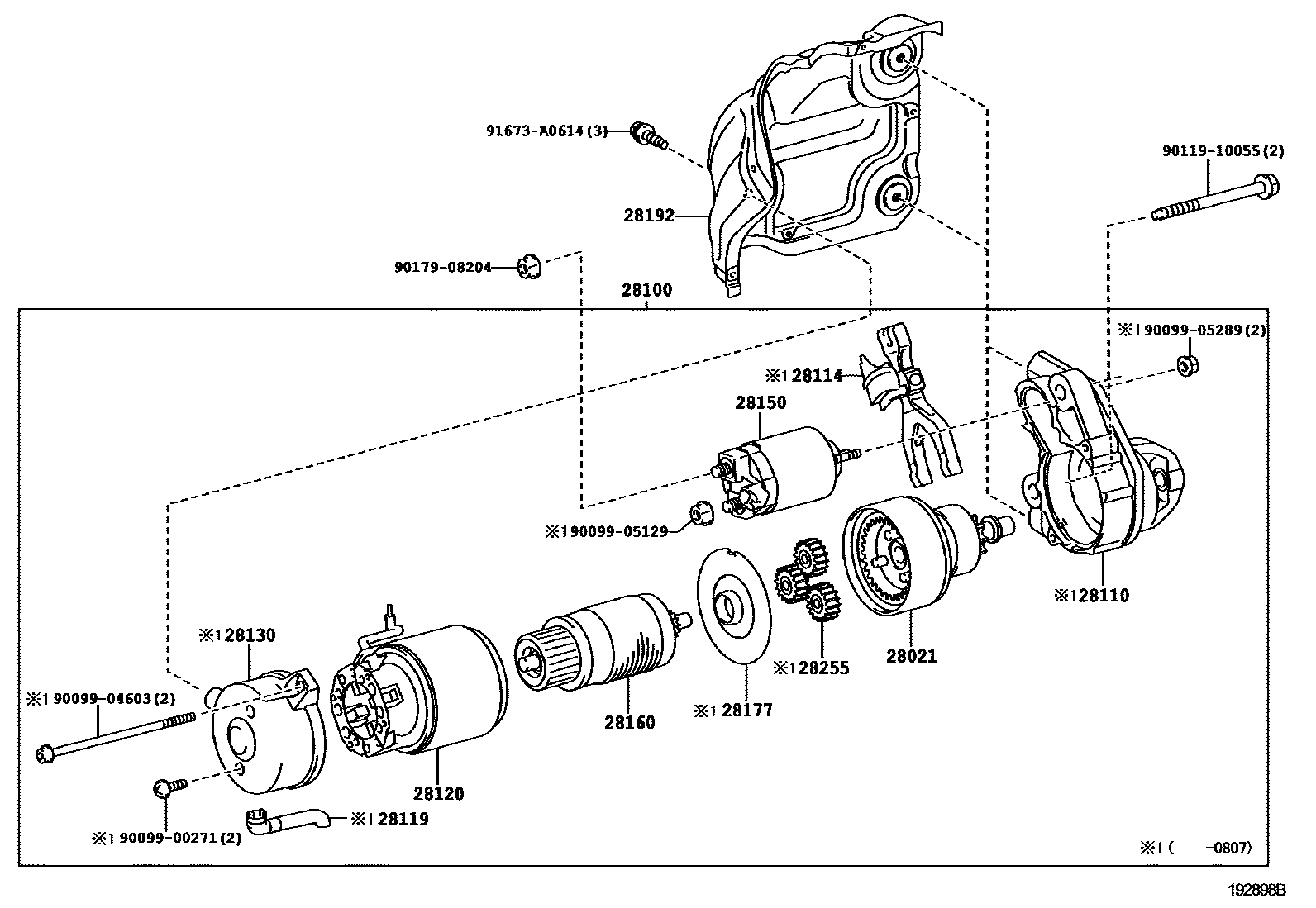

STARTER

0001 112V 2.0KW 0002 112V 2.0KW 0004 112V 2.7KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-38020i3URFE..URJ201200711-200807

main28021-38040i3URFE..URJ201200807-201107

main28021-38070i3URFE..URJ201201107-201201

28100STARTER ASSY

main28100-38040i3URFE..URJ201200711-200806

12V 2.0KW

main28100-38041i3URFE..URJ201200807-201106

12V 2.0KW

main28100-38070i1URFE..URJ202201201-201509

12V 2.0KW

main28100-38080i3URFE..URJ201201107-201201

12V 2.0KW

main28100-51072i1VDFTV..VDJ201201509

12V 2.7KW

28110HOUSING ASSY, STARTER DRIVE

main28110-38010i3URFE..URJ201200711-200807

main28110-51071i1VDFTV..VDJ201201509

28114PIN, STARTER DRIVE LEVER SET

main28114-38020i3URFE..URJ201200711-200807

28119COVER, STARTER END FRAME

main28199-40070i3URFE..URJ201200711-200807

28120YOKE ASSY, STARTER

main28120-38020i3URFE..URJ201200711-201107

main28120-38070i3URFE..URJ201201107-201201

main28120-51060i1VDFTV..VDJ201201509

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-38010i3URFE..URJ201200711-200807

28150SWITCH ASSY, MAGNET STARTER

main28150-38010i3URFE..URJ201200711-200907

main28150-38030i1URFE..URJ202201201-201509

main28150-38040i3URFE..URJ201200907-201201

main28150-51060i1VDFTV..VDJ201201509

28160ARMATURE ASSY, STARTER

main28160-36110i3URFE..URJ201201910

main28160-38020i3URFE..URJ201200711-201107

main28160-38070i3URFE..URJ201201107-201201

main28160-38080i3URFE..URJ201201801-201910

main28160-51060i1VDFTV..VDJ201201509

28177PLATE(FOR STARTER ARMATURE)

main28177-38020i3URFE..URJ201200711-200807

28192COVER, STARTER

main28192-38010i3URFE..URJ201201201-201509

main28192-38020i1URFE..URJ202201201-201509

28255GEAR, PLANET

main28255-38020×3i3URFE..URJ201200711-200807

9009900271

main90099-00271

9009904603

main90099-04603

9009905129

main90099-05129

9009905289

main90099-05289

9011910055

main90119-10055

9017908204

main90179-08204

91673A0614

main91673-A0614

19 parts on this diagram · 3 diagrams in section
