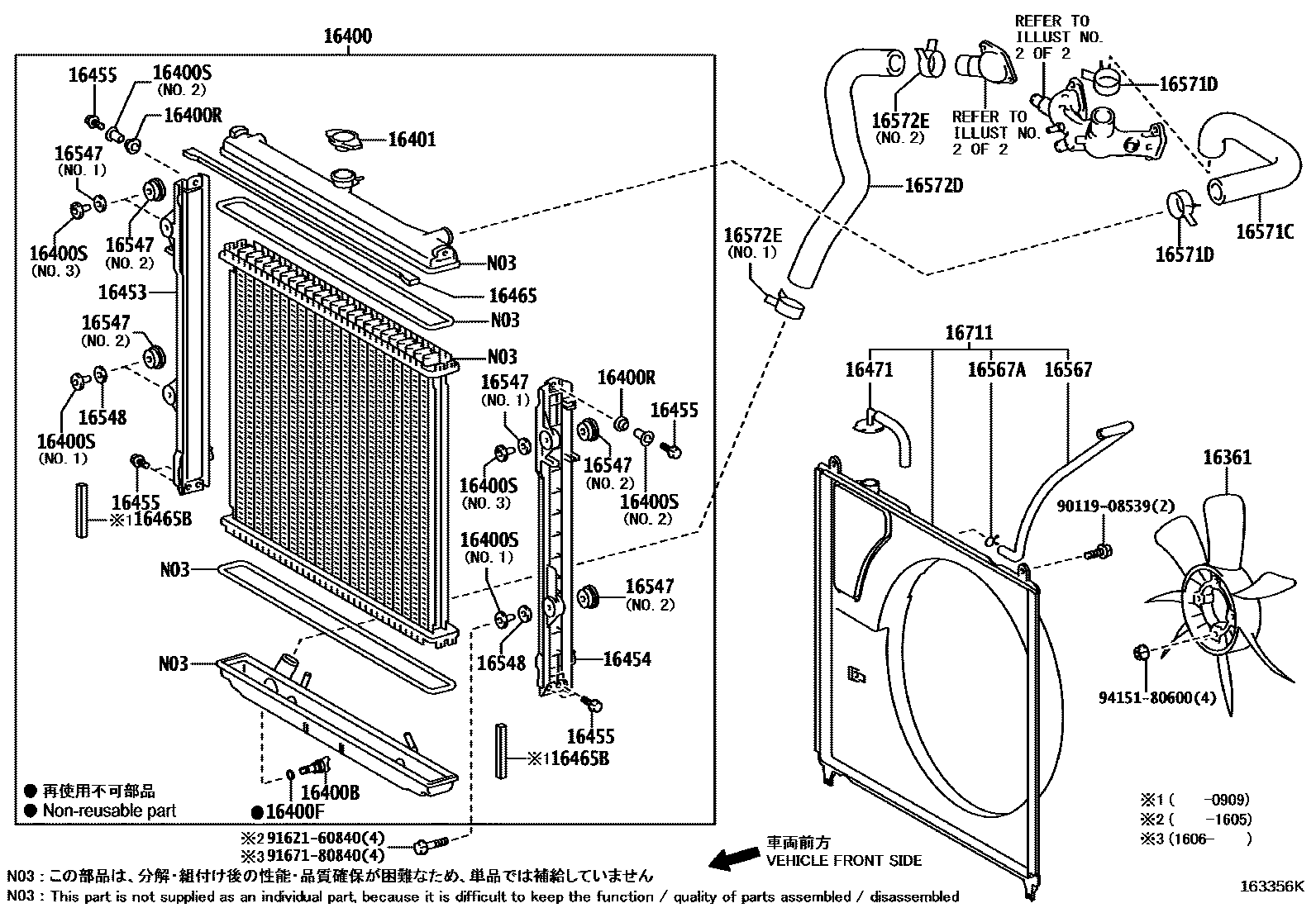

RADIATOR & WATER OUTLET
16400BPLUG, RADIATOR DRAIN COCK
NO.2
NO.1
16400FPACKING(FOR RADIATOR DRAIN COCK)
NO.2
NO.1
16400RBUSHING(FOR RADIATOR)
16400SCOLLAR(FOR RADIATOR)
NO.1
NO.2
NO.3
16453PLATE, RADIATOR SIDE
16454PLATE, RADIATOR SIDE
16455BOLT, RADIATOR SIDE SUPPORT PLATE
16465PACKING, RADIATOR
16465BPACKING, RADIATOR, NO.2
16471CAP SUB-ASSY, RESERVE TANK
16547BUSH, RADIATOR SUPPORT, NO.1
NO.1
NO.2
16548BUSH, RADIATOR SUPPORT, NO.2
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572ECLIP, RADIATOR HOSE, NO.2
NO.1
NO.2
16711SHROUD, FAN
9011908539
main90119-08539
9162160840
main91621-60840
9167180840
main91671-80840
9415180600
main94151-80600
26 parts on this diagram · 9 diagrams in section
