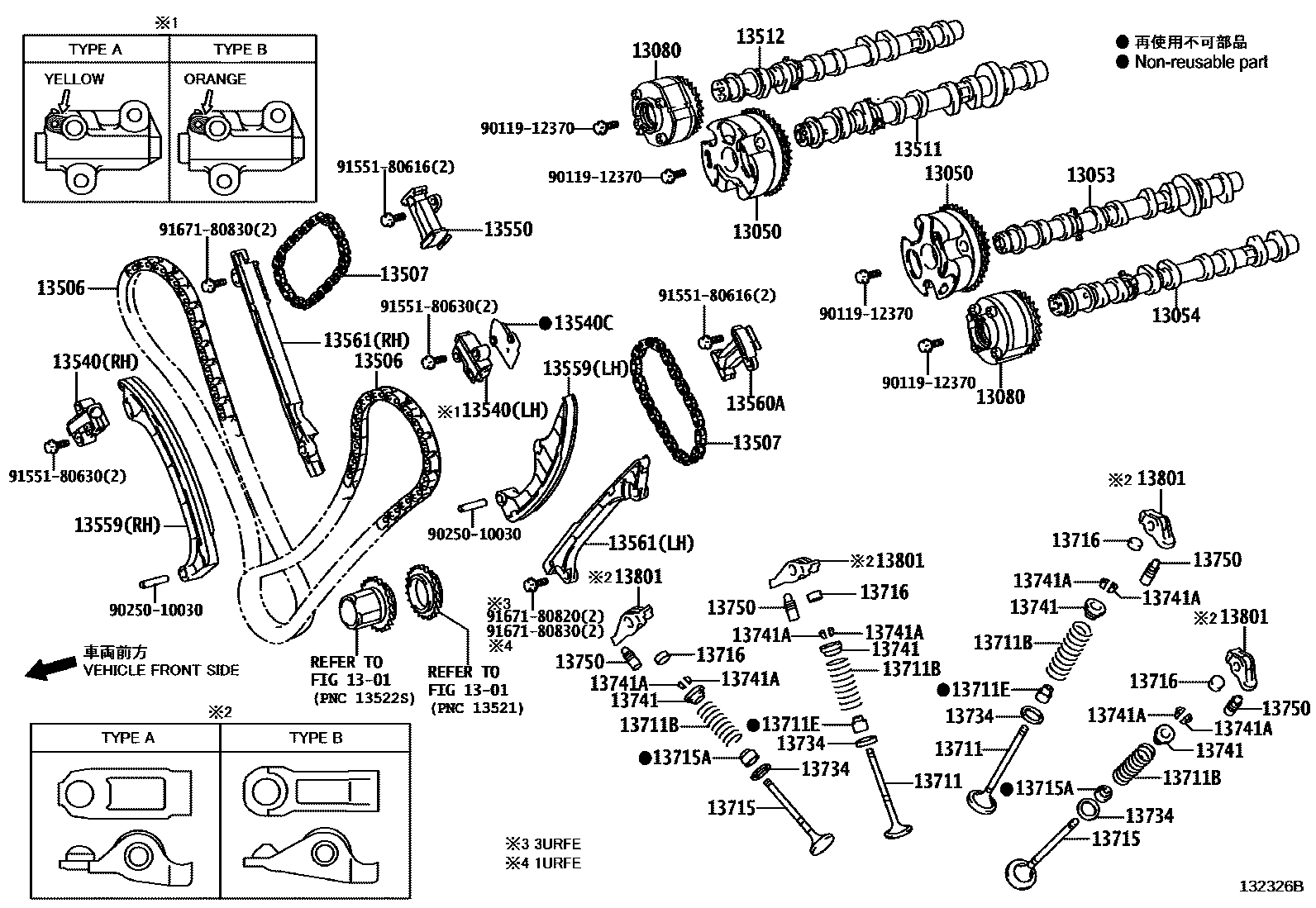

CAMSHAFT & VALVE
1301
13053CAMSHAFT SUB-ASSY, NO.3
(J)
13054CAMSHAFT SUB-ASSY, NO.4
(J)
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
(J)
13512CAMSHAFT, NO.2
(J)
13540TENSIONER ASSY, CHAIN, NO.1
RH
LH
LH,TYPE A
13540CGASKET(FOR CHAIN TENSIONER)
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
RH
LH
LH
RH
LH
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
RH
RH
LH
LH
RH
LH
13711ESEAL, INTAKE VALVE STEM OIL
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
PNC 13801=TYPE A
PNC 13801=TYPE B
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
9011912370
main90119-12370
9025010030
main90250-10030
9155180616
main91551-80616
9155180630
main91551-80630
9167180820
main91671-80820
9167180830
main91671-80830
32 parts on this diagram · 2 diagrams in section
