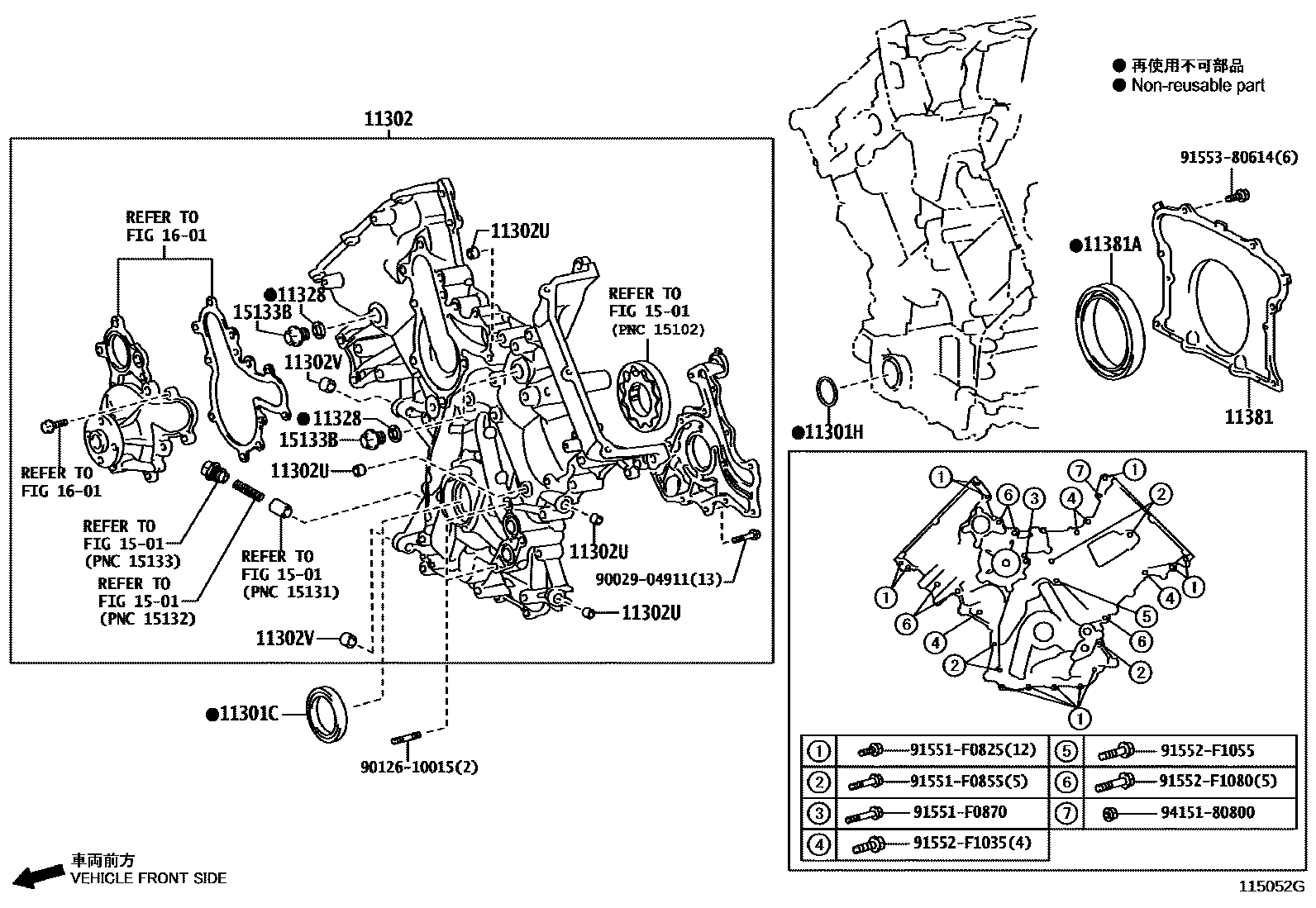

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1TIMING CHAINCOVER FRONT 0004 1TIMING CHAINCOVER REAR

11301CASE SUB-ASSY, TIMING GEAR

main11301-51011i1VDFTV..VDJ201201509

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42036i1URFE,3URFE..URJ20#200711-201509

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main90301-40008i3URFE..URJ201200711-201509

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-38060i3URFE..URJ201200711-201509

main11310-38110i1URFE..URJ202201201-201509

main11310-51012i1VDFTV..VDJ201201509

11302UPIN, RING

main90253-11021i3URFE..URJ201200711-201509

11302VPIN, RING, NO.1

main90253-13017i3URFE..URJ201200711-201509

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-38030i3URFE..URJ201200711-201509

main11328-51020i1VDFTV..VDJ201201509

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38020i3URFE..URJ201200711-201509

main11381-51020i1VDFTV..VDJ201201509

11381ASEAL, ENGINE REAR OIL

main90311-95013i3URFE..URJ201200711-201509

main90311-99010i1VDFTV..VDJ201201509-201612

main90311-99014i1VDFTV..VDJ201201701

1501

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071i3URFE..URJ201200711-201509

1601

9002904911

main90029-04911

9012610015

main90126-10015

91551F0825

main91551-F0825

91551F0855

main91551-F0855

91551F0870

main91551-F0870

91552F1035

main91552-F1035

91552F1055

main91552-F1055

91552F1080

main91552-F1080

9155380614

main91553-80614

9415180800

main94151-80800

22 parts on this diagram · 4 diagrams in section
