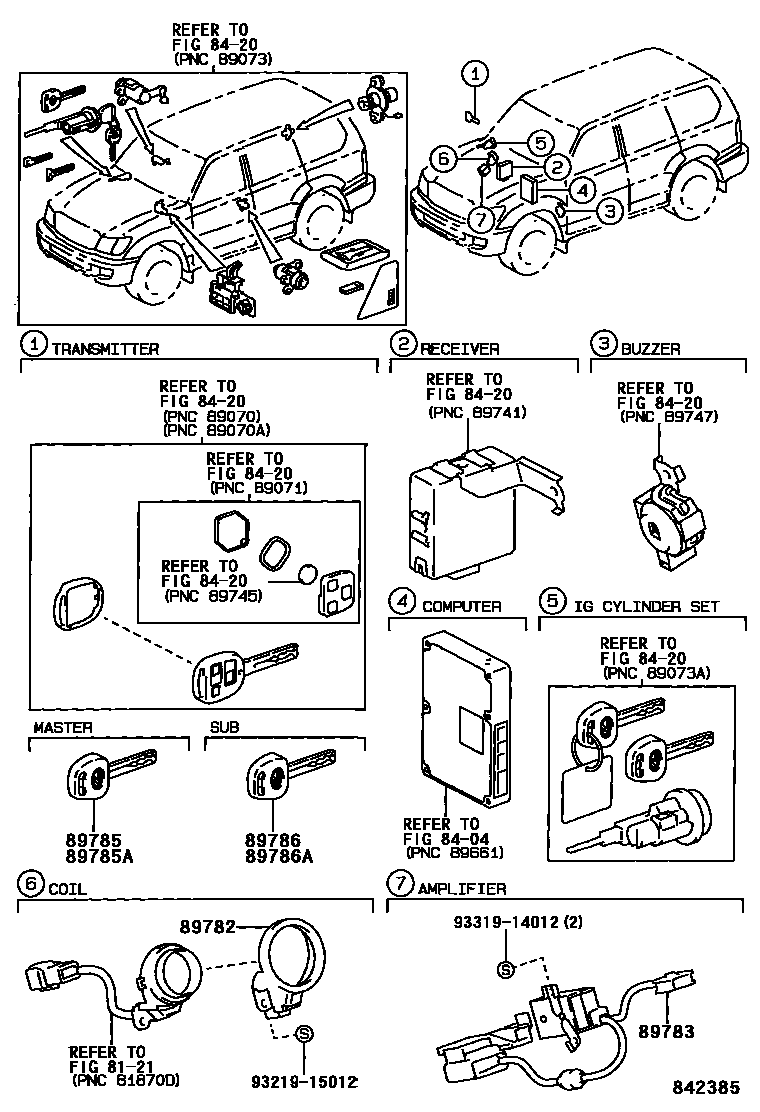

ANTI-THEFT DEVICE

0001 1 0002 1 0003 1

8121

8404

8420

89782COIL, TRANSPONDER KEY

main89782-33020iUZJ100199801-200208

89783AMPLIFIER, TRANSPONDER KEY

main89783-35030iUZJ100200208-200505

sub89783-35031

main89783-60030iUZJ100..RHD199801-200208

main89783-60050iUZJ100..LHD199801-200208

main89783-60110iUZJ100200505

sub89783-60111

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-30020iUZJ100199801-200008

main89785-50030iUZJ100200008-200208

main89785-60180iUZJ100200208-200505

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89785-50010iUZJ100199801-200008

main89785-50040iUZJ100200008-200208

main89785-60140iUZJ100200208-200505

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-30020iUZJ100199801-200008

main89786-50030iUZJ100200008-200208

main89786-60150iUZJ100200208-200505

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-50010iUZJ100199801-200008

main89786-50040iUZJ100200008-200208

main89786-60200iUZJ100200208-200505

9321915012

main93219-15012

9331914012

main93319-14012

11 parts on this diagram · 3 diagrams in section
