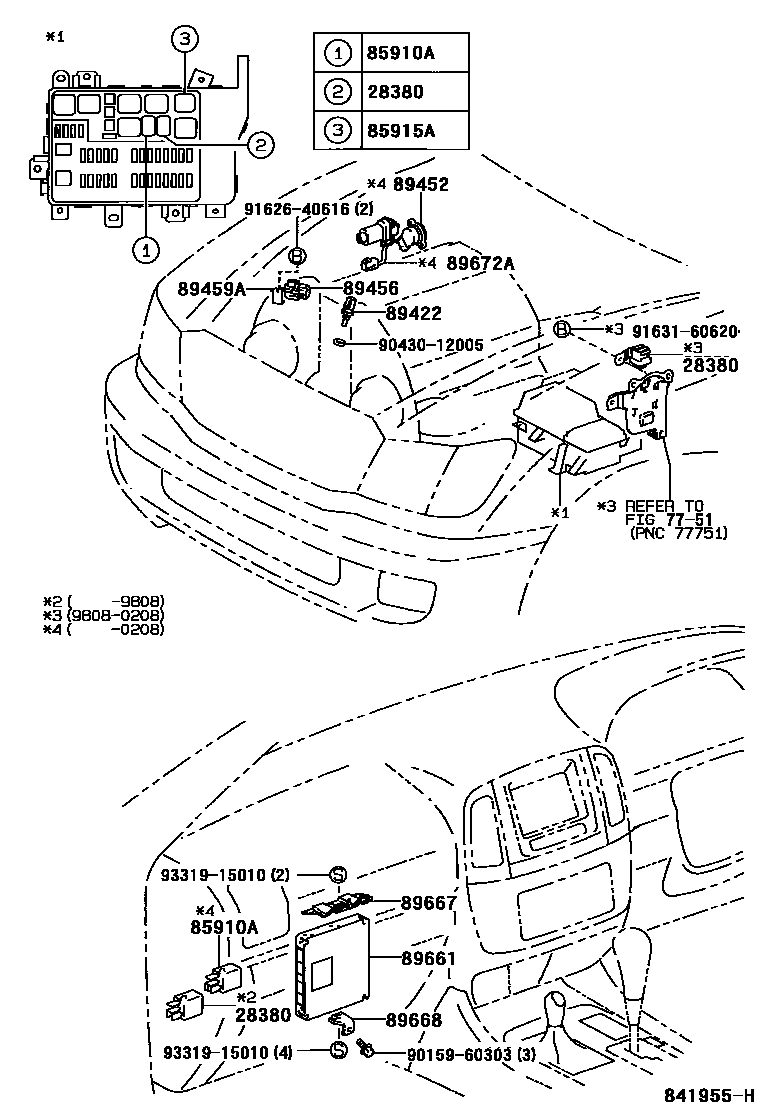

ELECTRONIC FUEL INJECTION SYSTEM

0001 1ENGINE & ROOM 0002 1ENGINE & ROOM 0003 1REAR

28380RELAY ASSY, FUEL PUMP

main28380-50030i2UZFE..UZJ100199801-199808

main28380-50050i2UZFE..UZJ100199808-200208

main90987-04004i2UZFE..UZJ100200208-200505

7751

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iUZJ100199801-200208

main90987-02022iUZJ100200208-200505

85915ARELAY, MAIN

main85915-30050iUZJ100199801-200505

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iUZJ100199801-200208

main89422-30030iUZJ100200208-200708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-30140iUZJ100199801-200208

89456RESISTOR, VARIABLE

main89456-30010iUZJ100199801-200505

89459ABRACKET, VARIABLE RESISTOR

main89459-60050iUZJ100..LHD199801-200505

89661COMPUTER, ENGINE CONTROL

main89661-60640iUZJ100199801-199907

sub89661-6A020

main89661-60C80iUZJ100..RHD200505-200708

main89661-6A260iUZJ100200208-200210

MARK = 89661-6A260

sub89661-6A261

main89661-6A261iUZJ100200210-200708

MARK = 89661-6A261

main89661-6A290iUZJ100..LHD200208-200210

MARK = 89661-6A290

sub89661-6A291

main89661-6A291iUZJ100..LHD200210-200708

MARK = 89661-6A291

main89666-60200iUZJ100199907-200104

sub89666-60370

main89666-60240iUZJ100..LHD200108-200110

MARK = 89666-60240

sub89666-60241

main89666-60241iUZJ100..LHD200110-200208

MARK = 89666-60241

main89666-60290iUZJ100..RHD199903-199907

sub89666-60320

main89666-60370iUZJ100200104-200110

MARK = 89666-60370

sub89666-60371

main89666-60371iUZJ100200110-200208

MARK = 89666-60371

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60140iUZJ100199801-200708

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60160iUZJ100199801-200708

89672AMOTOR, THROTTLE CONTROL

main89672-47010iUZJ100199801-200208

9015960303

main90159-60303

9043012005

main90430-12005

9162640616

main91626-40616

9163160620

main91631-60620

9331915010

main93319-15010

17 parts on this diagram · 3 diagrams in section
