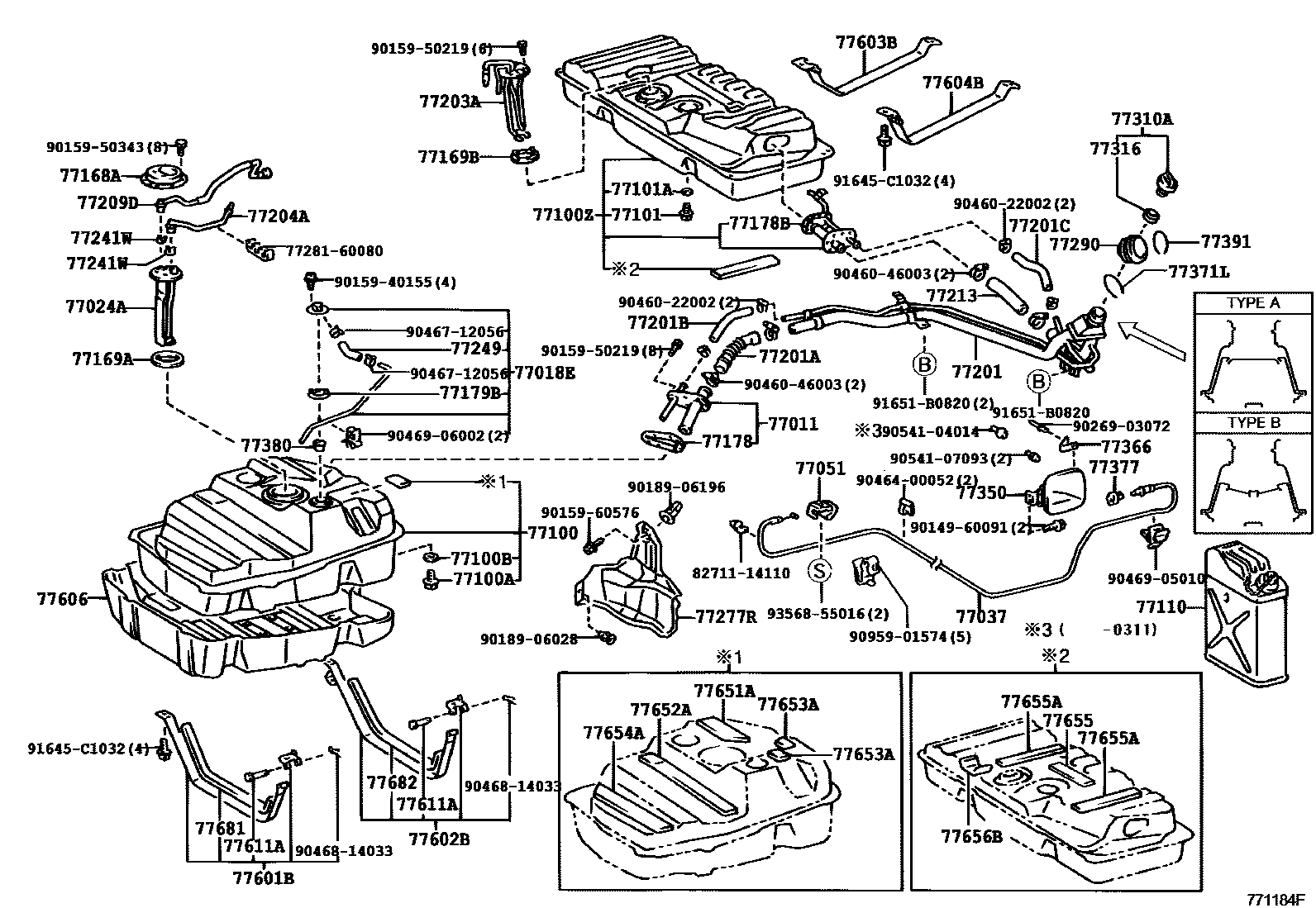

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77051LEVER SUB-ASSY, FUEL LID OPEN
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77101PLUG(FOR FUEL SUB-TANK)
77101AGASKET(FOR FUEL SUB-TANK)
77110TANK ASSY, AUXILIARY FUEL
W(AUXILIARY FUEL TANK)
W(AUXILIARY FUEL TANK X2)
77169AGASKET, FUEL SUCTION TUBE SET
77169BGASKET, FUEL SUCTION TUBE SET, NO.1
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77178BGASKET, FUEL TANK FILLER PIPE, LOWER (FOR SUB-TANK)
77179BGASKET, FUEL TANK EVAPORATION VENT TUBE
sub77179-26011
77201PIPE SUB-ASSY, FUEL TANK INLET
SAUDI ARABIA SPEC
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
MARK B
MARK A
77201BHOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE)
L=280,PNC 77201A = MARK A
L=280
L=280,PNC 77201A = MARK B
77201CHOSE, FUEL, NO.3(FOR FUEL TANK INLET PIPE)
L=160,PNC 77201A = MARK A
L=160,PNC 77201A = MARK B
L=160
77203ATUBE SUB-ASSY, FUEL SUCTION
77204ATUBE, FUEL TANK RETURN
77209DTUBE SUB-ASSY, FUEL TANK MAIN
SAUDI ARABIA SPEC
77213HOSE, FUEL TANK SUB INLET
PNC 77201A = MARK B
PNC 77201A = MARK A
77241WCLIP, TUBE JOINT
77249HOSE, FUEL EMISSION
77277RPROTECTOR, FUEL TANK FILLER PIPE
77316GASKET, FUEL TANK CAP
77366SPRING, FUEL FILLER OPENING LID HINGE
77371LRING, FUEL TANK FILLER PIPE SHIELD
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77603BBAND SUB-ASSY, FUEL TANK, NO.2 RH
77604BBAND SUB-ASSY, FUEL TANK, NO.2 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611APIN (FOR FUEL TANK BAND)
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77654ACUSHION, FUEL TANK, NO.4
77655CUSHION, FUEL TANK, NO.3
77655ACUSHION, FUEL TANK, NO.5
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
7728160080BRACKET, FUEL MAIN TUBE, NO.1
main77281-60080
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
9014960091
main90149-60091
9015940155
main90159-40155
9015950219
main90159-50219
9015950343
main90159-50343
9015960576
main90159-60576
9018906028
main90189-06028
9018906196
main90189-06196
9026903072
main90269-03072
9046022002
main90460-22002
9046046003
main90460-46003
9046400052
main90464-00052
9046712056
main90467-12056
9046814033
main90468-14033
9046905010
main90469-05010
9046906002
main90469-06002
9054104014
main90541-04014
9054107093
main90541-07093
9095901574
main90959-01574
91645C1032
main91645-C1032
91651B0820
main91651-B0820
9356855016
main93568-55016
76 parts on this diagram · 3 diagrams in section
