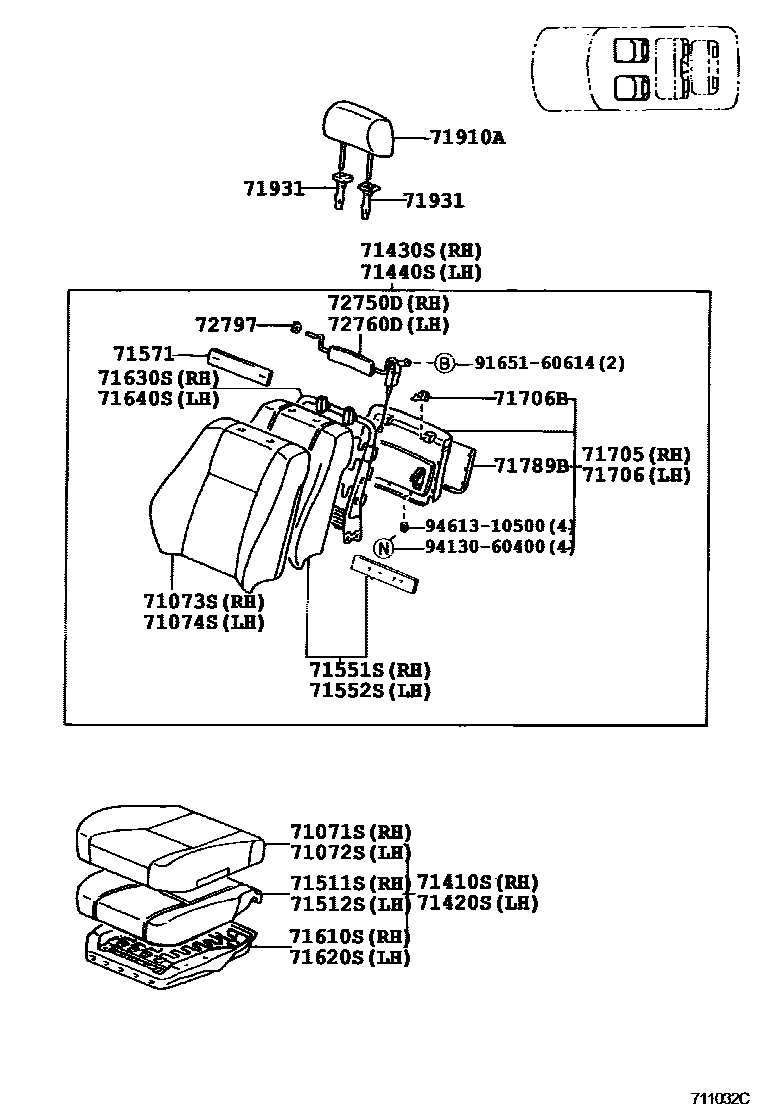

SEAT & SEAT TRACK

0001 1FRONT SEAT 0002 1FRONT SEAT 0003 1FRONT SEAT (ADJUSTER) 0004 1REAR NO.1 SEAT (TYPE B) 0005 1REAR NO.1 SEAT (TYPE B) 0006 1REAR NO.1 SEAT (TYPE A) 0007 1REAR NO.1 SEAT (TYPE A) 0008 1REAR NO.1 SEAT (TYPE A) 0009 1REAR NO.1 SEAT (TYPE A) 0010 1REAR NO.1 SEAT (TYPE B) 0011 1REAR NO.1 SEAT (TYPE B) 0012 1REAR NO.1 SEAT (ADJUSTER) (TY0013 1REAR NO.1 SEAT (ADJUSTER) (TY0014 1REAR NO.1 SEAT (ADJUSTER) (TY0015 1REAR NO.1 SEAT (ADJUSTER) (TY0016 1REAR NO.1 SEAT (HINGE & STRIK0017 1REAR NO.1 SEAT (HINGE & STRIK0018 1REAR NO.2 SEAT 0019 1REAR NO.2 SEAT 0020 1REAR NO.2 SEAT (FITTING PARTS0021 1REAR NO.2 SEAT (STRIKER)

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-60810-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71071-60810

sub71071-60812

main71071-60810-A1iUZJ100200208-200308

IVORY,TRIM0#

sub71071-60810

sub71071-60812

main71071-60810-B0iUZJ100199801-200208

GRAY,TRIM1#

sub71071-60810

sub71071-60812

main71071-60810-B1iUZJ100200208-200308

STONE,TRIM1#

sub71071-60810

sub71071-60812

main71071-60811-A2iUZJ100200308-200506

IVORY,TRIM0#

sub71071-60812

main71071-60811-B2iUZJ100200308-200506

DARK GRAY,TRIM1#

sub71071-60812

main71071-60812-A2iUZJ100200507-200708

IVORY,TRIM0#

main71071-60812-B2iUZJ100200507-200708

STONE,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-60730-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71072-60730

sub71072-60732

main71072-60730-A1iUZJ100200208-200308

IVORY,TRIM0#

sub71072-60730

sub71072-60732

main71072-60730-B0iUZJ100199801-200208

GRAY,TRIM1#

sub71072-60730

sub71072-60732

main71072-60730-B1iUZJ100200208-200308

STONE,TRIM1#

sub71072-60730

sub71072-60732

main71072-60731-A2iUZJ100200308-200506

IVORY,TRIM0#

sub71072-60732

main71072-60731-B2iUZJ100200308-200506

DARK GRAY,TRIM1#

sub71072-60732

main71072-60732-A2iUZJ100200507-200708

IVORY,TRIM0#

main71072-60732-B2iUZJ100200507-200708

STONE,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-60880-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71073-60880

main71073-60880-B0iUZJ100199801-200208

GRAY,TRIM1#

sub71073-60880

main71073-6A370-A0iUZJ100200208-200308

IVORY,TRIM0#

main71073-6A370-B0iUZJ100200208-200308

STONE,TRIM1#

main71073-6A371-A1iUZJ100200308-200506

IVORY,TRIM0#

sub71073-6A372

main71073-6A371-B1iUZJ100200308-200506

DARK GRAY,TRIM1#

sub71073-6A372

main71073-6A372-A1iUZJ100200507-200708

IVORY,TRIM0#

main71073-6A372-B1iUZJ100200507-200708

STONE,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-60740-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71074-60740

main71074-60740-B0iUZJ100199801-200208

GRAY,TRIM1#

sub71074-60740

main71074-60880-A0iUZJ100200208-200308

IVORY,TRIM0#

main71074-60880-B0iUZJ100200208-200308

STONE,TRIM1#

main71074-60881-A1iUZJ100200308-200506

IVORY,TRIM0#

sub71074-60882

main71074-60881-B1iUZJ100200308-200506

DARK GRAY,TRIM1#

sub71074-60882

main71074-60882-A1iUZJ100200507-200708

IVORY,TRIM0#

main71074-60882-B1iUZJ100200507-200708

STONE,TRIM1#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-6A500-B0iUZJ100..RHD199801-200208

SHADOW GRAY,TRIM1#

main71410-6A500-E0iUZJ100..RHD199801-200208

OAK,TRIM4#

main71410-6A510-B0iUZJ100..LHD199801-200208

SHADOW GRAY,TRIM1#

main71410-6A510-E0iUZJ100..LHD199801-200208

OAK,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-6A360-B0iUZJ100..LHD199801-200208

SHADOW GRAY,TRIM1#

main71420-6A360-E0iUZJ100..LHD199801-200208

OAK,TRIM4#

main71420-6A420-B0iUZJ100..RHD199801-200208

SHADOW GRAY,TRIM1#

main71420-6A420-E0iUZJ100..RHD199801-200208

OAK,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-60100-B0iUZJ100..LHD199801-200208

SHADOW GRAY,TRIM1#

main71040-60100-E0iUZJ100..LHD199801-200208

OAK,TRIM4#

main71040-60110-B0iUZJ100..RHD199801-200208

SHADOW GRAY,TRIM1#

main71040-60110-E0iUZJ100..RHD199801-200208

OAK,TRIM4#

main71430-6A360-A0iUZJ100..LHD200208-200308

IVORY,TRIM0#

sub71430-6A362

main71430-6A360-B0iUZJ100..LHD200208-200308

STONE,TRIM1#

sub71430-6A362

main71430-6A361-A1iUZJ100..LHD200308-200506

IVORY,TRIM0#

sub71430-6A362

main71430-6A361-B1iUZJ100..LHD200308-200506

STONE,TRIM1#

sub71430-6A362

main71430-6A362-A0iUZJ100..LHD200507-200708

IVORY,TRIM0#

main71430-6A362-B0iUZJ100..LHD200507-200708

DARK GRAY,TRIM1#

main71430-6A370-A0iUZJ100..RHD200208-200308

IVORY,TRIM0#

sub71430-6A372

main71430-6A370-B0iUZJ100..RHD200208-200308

STONE,TRIM1#

sub71430-6A372

main71430-6A371-A1iUZJ100..RHD200308-200506

IVORY,TRIM0#

sub71430-6A372

main71430-6A371-B1iUZJ100..RHD200308-200506

STONE,TRIM1#

sub71430-6A372

main71430-6A372-A0iUZJ100..RHD200507-200708

IVORY,TRIM0#

main71430-6A372-B0iUZJ100..RHD200507-200708

DARK GRAY,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71070-60100-B0iUZJ100..LHD199801-200208

SHADOW GRAY,TRIM1#

main71070-60100-E0iUZJ100..LHD199801-200208

OAK,TRIM4#

main71440-60890-B0iUZJ100..RHD199801-200208

SHADOW GRAY,TRIM1#

main71440-60890-E0iUZJ100..RHD199801-200208

OAK,TRIM4#

main71440-6A180-A0iUZJ100..LHD200208-200308

IVORY,TRIM0#

sub71440-6A182

main71440-6A180-B0iUZJ100..LHD200208-200308

STONE,TRIM1#

sub71440-6A182

main71440-6A181-A1iUZJ100..LHD200308-200506

IVORY,TRIM0#

sub71440-6A182

main71440-6A181-B1iUZJ100..LHD200308-200506

STONE,TRIM1#

sub71440-6A182

main71440-6A182-A0iUZJ100..LHD200507-200708

IVORY,TRIM0#

main71440-6A182-B0iUZJ100..LHD200507-200708

DARK GRAY,TRIM1#

main71440-6A220-A0iUZJ100..RHD200208-200308

IVORY,TRIM0#

sub71440-6A222

main71440-6A220-B0iUZJ100..RHD200208-200308

STONE,TRIM1#

sub71440-6A222

main71440-6A221-A1iUZJ100..RHD200308-200506

IVORY,TRIM0#

sub71440-6A222

main71440-6A221-B1iUZJ100..RHD200308-200506

STONE,TRIM1#

sub71440-6A222

main71440-6A222-A0iUZJ100..RHD200507-200708

IVORY,TRIM0#

main71440-6A222-B0iUZJ100..RHD200507-200708

DARK GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-60060iUZJ100..LHD199801-200507

sub71501-60C60

main71501-60090iUZJ100..RHD199801-200507

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-60080iUZJ100..RHD199801-200507

main71502-60100iUZJ100..LHD199801-200507

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-60210iUZJ100199801-200208

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-60210iUZJ100199801-200208

71571PAD, FRONT SEATBACK SILENCER, A

main71571-60020iUZJ100199801-200208

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-60230iUZJ100199801-200507

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-60230iUZJ100199801-200507

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-60140iUZJ100..LHD199801-199812

main71630-60150iUZJ100..RHD199801-199908

main71630-60180iUZJ100..LHD199812-200208

main71630-60190iUZJ100..RHD199908-200208

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-60140iUZJ100..RHD199801-199908

main71630-60150iUZJ100..LHD199801-199812

main71630-60180iUZJ100..RHD199908-200208

main71630-60190iUZJ100..LHD199812-200208

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-60200-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71705-60240

main71705-60200-B0iUZJ100199801-200208

MD.GRAY,TRIM1#

sub71705-60240

main71705-60240-A0iUZJ100200208-200708

IVORY,TRIM0#

sub71705-60210

main71705-60240-B0iUZJ100200208-200708

STONE,TRIM1#

sub71705-60210

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-60200-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71705-60240

main71705-60200-B0iUZJ100199801-200208

MD.GRAY,TRIM1#

sub71705-60240

main71705-60240-A0iUZJ100200208-200708

IVORY,TRIM0#

sub71705-60210

main71705-60240-B0iUZJ100200208-200708

STONE,TRIM1#

sub71705-60210

71706BCLIP, FRONT SEATBACK BOARD

main71769-60020iUZJ100199801-200507

71789BPOCKET, FRONT SEATBACK BOARD

main71780-60030-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71780-60030

sub71780-60040

main71780-60030-A1iUZJ100200208-200505

IVORY,TRIM0#

sub71780-60030

sub71780-60040

main71780-60030-B0iUZJ100199801-200208

MD.GRAY,TRIM1#

sub71780-60030

sub71780-60040

main71780-60030-B1iUZJ100200208-200708

STONE,TRIM1#

sub71780-60030

sub71780-60040

71910AHEADREST ASSY, FRONT SEAT

main71910-60450-A0iUZJ100199801-200208

IVORY,TRIM4#

sub71910-60450

sub71910-60452

main71910-60450-A1iUZJ100200208-200308

IVORY,TRIM0#

sub71910-60450

sub71910-60452

main71910-60450-B0iUZJ100199801-200208

GRAY,TRIM1#

sub71910-60450

sub71910-60452

main71910-60450-B1iUZJ100200208-200308

STONE,TRIM1#

sub71910-60450

sub71910-60452

main71910-60451-A2iUZJ100200308-200506

IVORY,TRIM0#

sub71910-60452

main71910-60451-B2iUZJ100200308-200506

STONE,TRIM1#

sub71910-60452

main71910-60452-A2iUZJ100200507-200708

IVORY,TRIM0#

main71910-60452-B2iUZJ100200507-200708

STONE,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-28040-A0iUZJ100199801-200103

W(LOCK),IVORY,TRIM4#

sub71930-60030

sub71930-28040

main71930-28040-B5iUZJ100199801-200103

W(LOCK),MD.GRAY,TRIM1#

sub71930-60030

sub71930-28040

main71930-60030-A1iUZJ100200208-200708

W(LOCK),IVORY,TRIM0#

sub71930-60030

main71930-60030-B0iUZJ100200103-200208

W(LOCK),MD.GRAY,TRIM1#,4#

sub71930-60030

main71930-60030-B1iUZJ100200208-200708

W(LOCK),STONE,TRIM1#

sub71930-60030

main71931-28050-A0iUZJ100199801-200103

W/O(LOCK),IVORY,TRIM4#

sub71931-28050

main71931-28050-B5iUZJ100199801-200103

W/O(LOCK),MD.GRAY,TRIM1#

sub71931-28050

main71931-60020-A1iUZJ100200208-200708

W/O(LOCK),IVORY,TRIM0#

sub71931-60020

main71931-60020-B0iUZJ100200103-200208

W/O(LOCK),MD.GRAY,TRIM4#

sub71931-60020

main71931-60020-B1iUZJ100200208-200708

W/O(LOCK),STONE,TRIM1#

sub71931-60020

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72760-60040iUZJ100..RHD199801-200505

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-60070iUZJ100..LHD199801-200505

72797SPACER, LUMBAR SUPPORT

main72797-50010iUZJ100199801-200505

9165160614

main91651-60614

9413060400

main94130-60400

9461310500

main94613-10500

29 parts on this diagram · 21 diagrams in section
