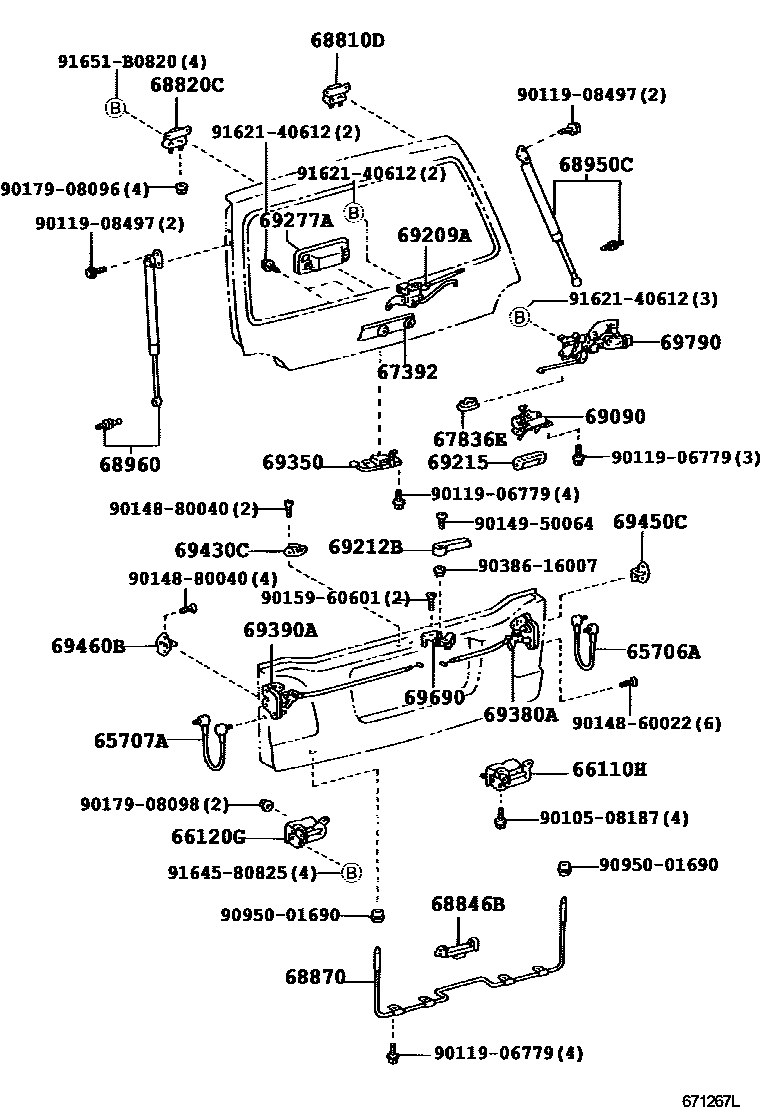

BACK DOOR LOCK & HINGE
66110HHINGE ASSY, TAIL GATE, RH
66120GHINGE ASSY, TAIL GATE, LH
67392PROTECTOR, BACK DOOR LOCK
67836ECOVER, REAR DOOR LOCK CHILD PROTECTION
68810DHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68846BGUIDE, BACK DOOR TORSION BAR
68870BAR ASSY, BACK DOOR LOWER TORSION
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69209AHANDLE SUB-ASSY, BACK DOOR, INSIDE
69212BHANDLE, BACK DOOR INSIDE
BLACK
69215HANDLE, BACK DOOR OUTSIDE
69277ABEZEL, BACK DOOR INSIDE HANDLE
69350LOCK ASSY, BACK DOOR
69380ALOCK ASSY, TAIL GATE, LOWER RH
69390ALOCK ASSY, TAIL GATE, LOWER LH
69430CSTRIKER ASSY, BACK DOOR LOCK
69690CONTROL ASSY, BACK DOOR REMOTE
69790CONTROL ASSY, BACK DOOR LOCK
9010508187
main90105-08187
9011906779
main90119-06779
9011908497
main90119-08497
9014860022
main90148-60022
9014880040
main90148-80040
9014950064
main90149-50064
9015960601
main90159-60601
9017908096
main90179-08096
9017908098
main90179-08098
9038616007
main90386-16007
9095001690
main90950-01690
9162140612
main91621-40612
9164580825
main91645-80825
91651B0820
main91651-B0820
39 parts on this diagram · 1 diagram in section
