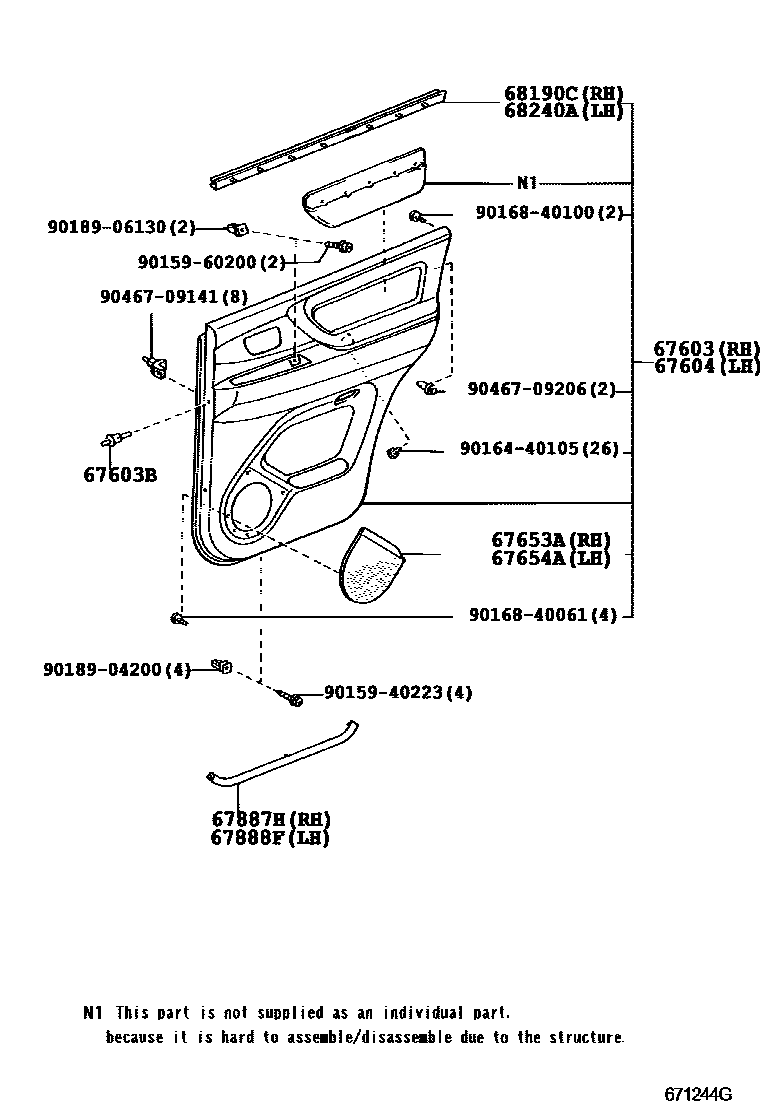

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-60560-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main67630-60560-E0iUZJ100199801-200208

OAK,TRIM4#

main67630-60561-A1iUZJ100..LHD200208-200308

IVORY,TRIM0#

main67630-60561-B2iUZJ100..LHD200208-200308

STONE,TRIM1#

main67630-60562-A0iUZJ100200505-200610

IVORY,TRIM0#

main67630-60562-B1iUZJ100200505-200610

STONE,TRIM1#

main67630-60563-A0iUZJ100200611-200708

IVORY,TRIM0#

main67630-60563-B1iUZJ100200611-200708

STONE,TRIM1#

main67630-60820-A0iUZJ100..RHD200208-200308

IVORY,TRIM0#

main67630-60820-B0iUZJ100..RHD200208-200308

STONE,TRIM1#

main67630-60821-A0iUZJ100..RHD200308-200505

IVORY,TRIM0#

main67630-60821-B0iUZJ100..RHD200308-200505

STONE,TRIM1#

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-A0×8iUZJ100200505-200708

IVORY,TRIM0#

main90467-07066-A1×8iUZJ100199801-200208

IVORY,TRIM4#

main90467-07066-P2×8iUZJ100199801-200208

MD.GRAY,TRIM1#

main90467-07066-P4×8iUZJ100200505-200708

STONE,TRIM1#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-60560-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main67640-60560-E0iUZJ100199801-200208

OAK,TRIM4#

main67640-60561-A1iUZJ100..LHD200208-200308

IVORY,TRIM0#

main67640-60561-B2iUZJ100..LHD200208-200308

STONE,TRIM1#

main67640-60562-A0iUZJ100200505-200610

IVORY,TRIM0#

main67640-60562-B1iUZJ100..LHD200308-200505

STONE,TRIM1#

main67640-60563-A0iUZJ100200611-200708

IVORY,TRIM0#

main67640-60563-B1iUZJ100200611-200708

STONE,TRIM1#

main67640-60820-A0iUZJ100..RHD200208-200308

IVORY,TRIM0#

main67640-60820-B0iUZJ100..RHD200208-200308

STONE,TRIM1#

main67640-60821-A0iUZJ100..RHD200308-200505

IVORY,TRIM0#

main67640-60821-B0iUZJ100..RHD200308-200505

STONE,TRIM1#

67653AGRILLE, SPEAKER REAR DOOR, RH

main67071-60011-A0iUZJ100..RHD200208-200505

IVORY,TRIM0#

main67071-60011-B1iUZJ100..RHD200208-200505

STONE,TRIM1#

main67071-60020-A1iUZJ100200206-200208

IVORY,TRIM4#

main67071-60020-A2iUZJ100200505-200708

IVORY,TRIM0#

main67071-60020-B0iUZJ100199801-200206

SHADOW GRAY,TRIM1#

main67071-60020-B2iUZJ100200206-200208

MD.GRAY,TRIM1#

main67071-60020-B3iUZJ100..LHD200208-200505

STONE,TRIM1#

main67071-60020-E0iUZJ100199801-200206

OAK,TRIM4#

67654AGRILLE, SPEAKER REAR DOOR, LH

main67072-60011-A0iUZJ100..RHD200208-200505

IVORY,TRIM0#

main67072-60011-B1iUZJ100..RHD200208-200505

STONE,TRIM1#

main67072-60020-A1iUZJ100200206-200208

IVORY,TRIM4#

main67072-60020-A2iUZJ100..LHD200208-200505

IVORY,TRIM0#

main67072-60020-B0iUZJ100199801-200206

SHADOW GRAY,TRIM1#

main67072-60020-B2iUZJ100200206-200208

MD.GRAY,TRIM1#

main67072-60020-B3iUZJ100..LHD200208-200505

STONE,TRIM1#

main67072-60020-E0iUZJ100199801-200206

OAK,TRIM4#

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-60010iUZJ100199801-200208

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-60010iUZJ100199801-200208

68190CWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER RH

main68190-60080iUZJ100200208-200505

68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH

main68240-60060iUZJ100200505-200708

9015940223

main90159-40223

9015960200

main90159-60200

9016440105

main90164-40105

9016840061

main90168-40061

9016840100

main90168-40100

9018904200

main90189-04200

9018906130

main90189-06130

9046709141

main90467-09141

9046709206

main90467-09206

18 parts on this diagram · 2 diagrams in section
