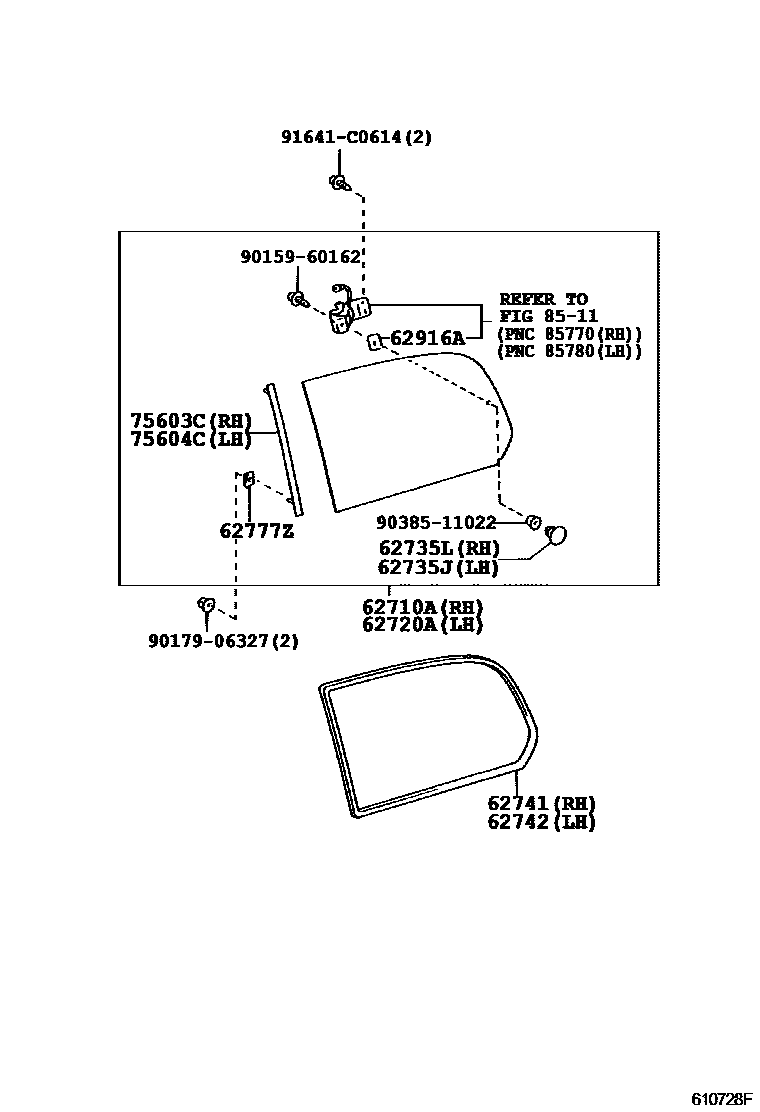

SIDE WINDOW
62710AWINDOW ASSY, QUARTER, RH
*UVCSERT,T=4.0,GRAY
*UVCT,T=4.0,GREEN
*UVCTT,T=4.0,GREEN
*UVCTT,T=4,DARK GRAY
62720AWINDOW ASSY, QUARTER, LH
*UVCSERT,T=4.0,GRAY
*UVCT,T=4.0,GREEN
*UVCTT,T=4.0,GREEN
*UVCTT,T=4,DARK GRAY
62735JRETAINER, QUARTER WINDOW HINGE, LH
62735LRETAINER, QUARTER WINDOW HINGE, RH
62777ZPLATE, QUARTER WINDOW RETAINER
62916APAD, SIDE WINDOW LOCK
75603CMOULDING,QUARTER WINDOW,OUTSIDE FRONT RH
75604CMOULDING,QUARTER WINDOW,OUTSIDE FRONT LH
8511
9015960162
main90159-60162
9017906327
main90179-06327
9038511022
main90385-11022
91641C0614
main91641-C0614
15 parts on this diagram · 1 diagram in section
