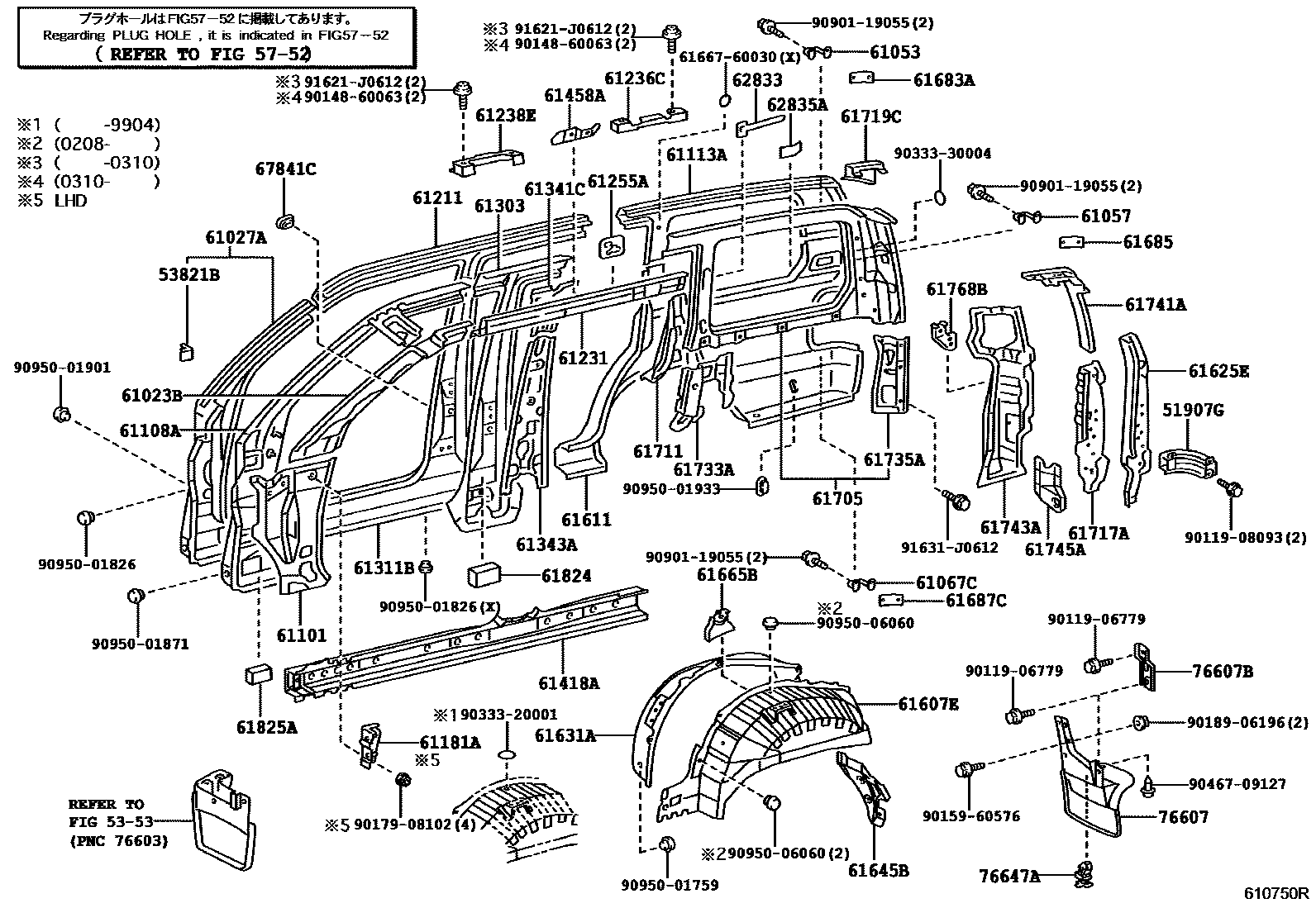

SIDE MEMBER

0001 1RH 0002 1LH 0003 1RH 0004 1LH

51907GRETAINER SUB-ASSY, SPARE TIRE CARRIER

main51907-60070iUZJ100..LHD199801-200505

5353

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iUZJ100..LHD199801-200505

5752

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-60060iUZJ100199801-200201

sub61023-60061

main61023-60061iUZJ100200201-200505

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-60330iUZJ100199801-200505

61053STEP SUB-ASSY, QUARTER PANEL, NO.1 RH

main61053-60020iUZJ100..LHD199801-200505

61057STEP SUB-ASSY, QUARTER PANEL, NO.2 RH

main61057-60020iUZJ100..LHD199801-200505

61067CSTEP SUB-ASSY, QUARTER PANEL, NO.3 RH

main61067-60020iUZJ100..LHD199801-200505

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-60100iUZJ100199801-200201

sub61101-60101

main61101-60101iUZJ100200201-200208

sub61101-60120

main61101-60120iUZJ100200208-200505

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-60050iUZJ100..LHD199801-200505

61113APANEL, SIDE, OUTER NO.2 RH

main61113-60040iUZJ100199801-200505

61181ABRACKET, INSTRUMENT SIDE, RH

main61181-60030iUZJ100..LHD199801-200505

61211RAIL, ROOF SIDE, OUTER RH

main61211-60040iUZJ100199801-200505

61231RAIL, ROOF SIDE, INNER RH

main61231-60080iUZJ100199801-200201

sub61231-60081

main61231-60081iUZJ100200201-200208

main61231-60100iUZJ100200208-200505

61236CBRACKET, ASSIST GRIP

main61247-60060iUZJ100200208-200505

61238EBRACKET, ASSIST GRIP, NO.2

main61245-60020iUZJ100200208-200505

61255APLATE, ROOF SIDE RAIL, OUTER RH

main61255-60010iUZJ100199801-200208

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-60030iUZJ100199801-200208

sub61303-60050

main61303-60050iUZJ100200208-200409

sub61303-60051

main61303-60051iUZJ100200410-200505

61311BPILLAR, CENTER BODY, OUTER RH

main61311-60120iUZJ100199801-200505

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-60040iUZJ100199801-200203

sub61341-60041

main61341-60041iUZJ100200203-200208

sub61341-60050

main61341-60050iUZJ100200208-200505

61343APILLAR, CENTER BODY, INNER RH

main61343-60080iUZJ100199801-200208

sub61343-60120

main61343-60120iUZJ100200208-200505

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-60030iUZJ100..LHD199801-199812

sub61418-60040

main61418-60040iUZJ100199812-200505

61458APLATE, LOWER RAIL, INNER RH

main61458-60010iUZJ100199801-200208

61607EPANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-60230iUZJ100199801-200505

sub61607-60240

61611PANEL, QUARTER, RH

main60161-60A70iUZJ100199801-200708

sub60161-60B20

main60161-60B60iUZJ100..LHD199801-200505

W(ROOF RACK)

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-60120iUZJ100199801-200505

sub61625-60130

main61625-60130iUZJ100..LHD199801-200505

W(SPARE TIRE CARRIER = BACK DOOR)

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-60050iUZJ100199801-200201

sub61631-60051

main61631-60051iUZJ100200201-200505

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-60040iUZJ100199801-200505

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-60050iUZJ100199801-200505

61683AORNAMENT, QUARTER PANEL STEP, NO.1 RH

main61683-60040iUZJ100..LHD199801-200505

61685ORNAMENT, QUARTER PANEL STEP, NO.2 RH

main61685-60020iUZJ100..LHD199801-199804

sub61685-60021

main61685-60021iUZJ100..LHD199804-200505

61687CORNAMENT, QUARTER PANEL STEP, NO.3 RH

main61687-60020iUZJ100..LHD199801-200505

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-60590iUZJ100199801-200203

sub61705-60591

main61705-60591iUZJ100200203-200208

sub61705-6A010

main61705-6A050iUZJ100200208-200505

61711PANEL, ROOF SIDE, OUTER RH

main61711-60040iUZJ100199801-200201

sub61711-60041

main61711-60041iUZJ100200201-200505

61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH

main61031-60090iUZJ100199801-200505

61719CBRACKET, ROOF SIDE RAIL, RH

main61719-60020iUZJ100199801-200505

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-60040iUZJ100199801-200201

sub61733-60041

main61733-60041iUZJ100200201-200505

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-60040iUZJ100199801-200505

61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH

main61741-60050iUZJ100199801-200505

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-60070iUZJ100199801-200505

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-60020iUZJ100199801-200505

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-60040iUZJ100199801-200505

61824PLATE, NOISE CONTROL, NO.1

main61824-60030iUZJ100199801-199901

sub62554-58010

main61825-60010iUZJ100199901-200208

sub61824-12130

61825APLATE, NOISE CONTROL, NO.2

main61825-60010iUZJ100199801-200505

sub61824-12130

62833SEAL, QUARTER WINDOW DEFLECTOR, NO.1 RH

main62833-60020iUZJ100199801-200505

62835ASEAL, QUARTER WINDOW DEFLECTOR, NO.2 RH

main62835-60020iUZJ100199801-200505

67841CCOVER, QUARTER SERVICE HOLE, RH

main67843-60010iUZJ100199801-200505

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-60150iUZJ100199801-200505

76607BBRACKET, QUARTER PANEL REAR MUDGUARD, RH

main76645-60040iUZJ100199801-200505

76647ASUPPORT, REAR BODY MUDGUARD, RH

main76647-60040iUZJ100199801-200505

6166760030REINFORCEMENT, SEAT BELT ANCHORAGE, LOWER RH

main61667-60030

9011906779

main90119-06779

9011908093

main90119-08093

9014860063

main90148-60063

9015960576

main90159-60576

9017908102

main90179-08102

9018906196

main90189-06196

9033320001

main90333-20001

9033330004

main90333-30004

9046709127

main90467-09127

9090119055

main90901-19055

9095001759

main90950-01759

9095001826

main90950-01826

9095001871

main90950-01871

9095001901

main90950-01901

9095001933

main90950-01933

9095006060

main90950-06060

91621J0612

main91621-J0612

91631J0612

main91631-J0612

70 parts on this diagram · 4 diagrams in section
